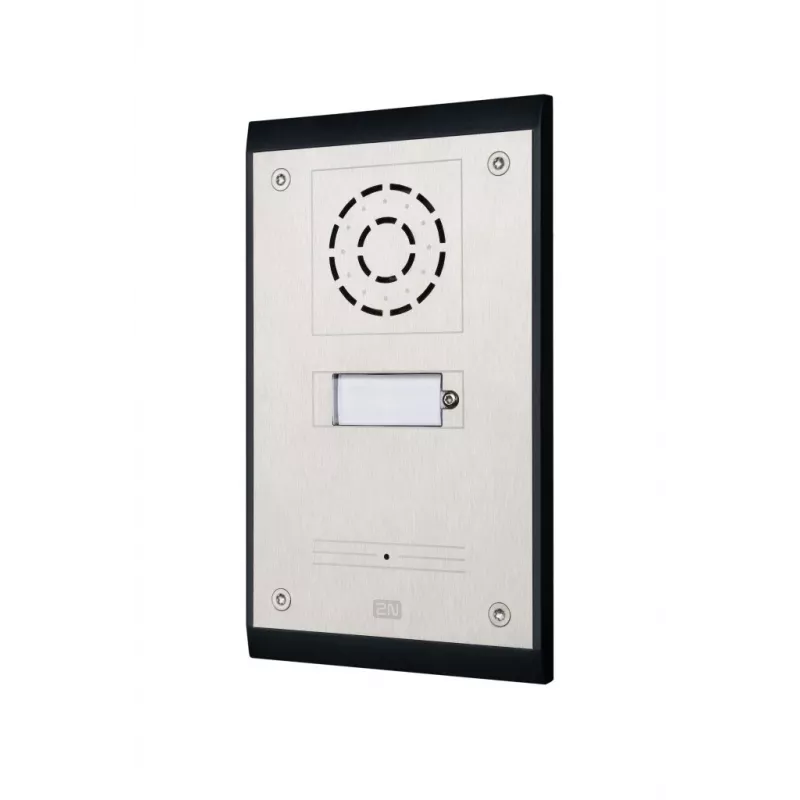

2N Telecommunications Helios Uni Preto - Branco Videoporteiro IP (9153201-E)

The 2N Telecommunications Helios Uni is a professional IP door intercom system designed for secure and reliable communication at building entrances. With its sleek black and white design, it offers full-duplex audio, SIP support, and Power over Ethernet (PoE) for easy installation. Ideal for residential and commercial use, this intercom provides a robust solution for access control.

Advantages

Full-duplex audio ensures clear, natural conversation. SIP compatibility allows integration with most VoIP systems. PoE support simplifies cabling by combining power and data over a single Ethernet cable. The IP54 rating protects against dust and water splashes, while IK07 rating offers vandal resistance. Surface mount installation is straightforward, with an optional flush mount box available.

Suitable for

• Apartment buildings and gated communities
• Office entrances and commercial facilities
• Secure access points requiring audio communication

Key specifications

• Product Type: IP Door Intercom System
• Number of Buttons: 1
• Color: Black / White
• Connectivity Technology: Wired (Ethernet)
• Power Supply: Power over Ethernet (PoE 802.3af) or 12V DC / 2A
• SIP Support: Yes
• Audio Features: Full-duplex audio, Integrated microphone and speaker
• Audio Codecs: G.711, G.729, G.722, L16/16kHz
• Relay Outputs: 1x NO/NC (max 30V/1A AC/DC)
• Passive Inputs: 1x (for exit button, door sensor, etc.)
• IP Rating: IP54
• IK Rating: IK07
• Operating Temperature: -40°C to +55°C
• Installation Type: Surface Mount
• Management Interface: Web interface, 2N Access Commander
• Material: High-strength plastic chassis, robust plastic front panel
• Camera: No

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. The intercom can also be powered via a 12V DC power supply (not included). Ensure the mounting surface is flat and secure. For flush mount installations, order the optional flush mount box separately.
