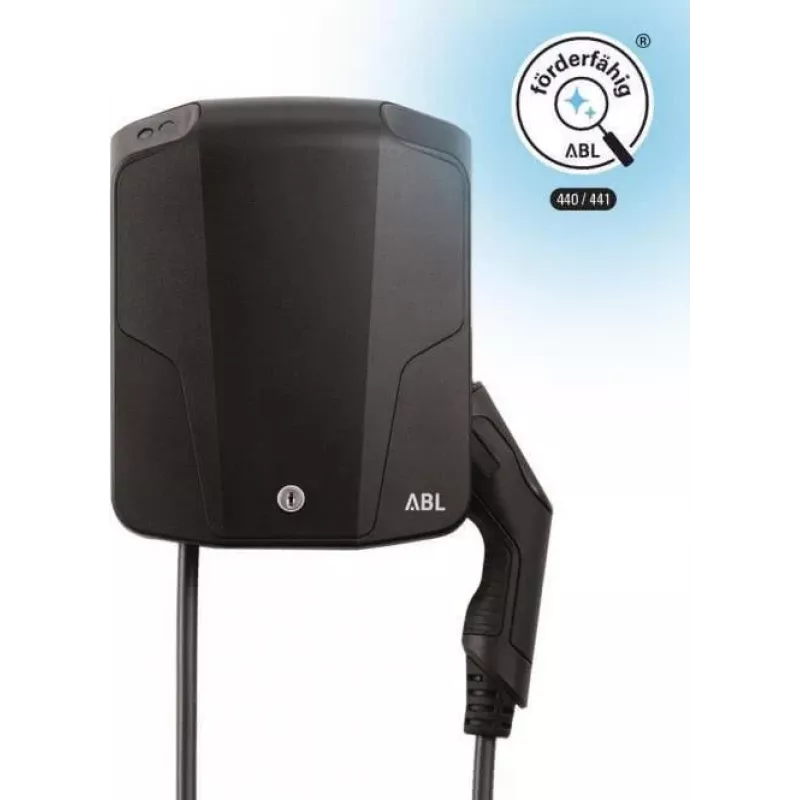

ABL 1W2201 wallbox 22kW de 3 fases com cabo de carregamento (1W2201)

The ABL 1W2201 Wallbox delivers a full 22 kW three-phase charge, making it a standout choice for high-power EV charging at home or work. Unlike lower-power units, it uses a 32 A per phase supply to cut charging times significantly.

Highlights

• 22 kW charging power via 3-phase 400 V input
• Type 2 connector with 5 m charging cable
• Integrated DC fault current detection (6 mA)
• Robust polycarbonate housing, IP54 rated
• Plug & Charge – no RFID or app needed

In daily use

Connect the Type 2 plug to your EV and charging starts automatically. The 5 m cable gives flexibility in parking, while the wall-mounted design keeps the unit out of the way. With standby consumption under 1 W, it stays efficient when idle.

Full specifications

• Charging power: 22 kW
• Charging current: 32 A per phase
• Phases: 3-phase
• Input voltage: 400 V AC
• Frequency: 50 Hz
• Connector type: Type 2 (IEC 62196-2)
• Cable length: 5 m
• Residual current device: External RCD Type A required, integrated DC fault current detection (6 mA)
• Protection class: IP54
• Impact resistance: IK08
• Operating temperature: -30°C to +50°C
• Mounting type: Wall-mounted
• Housing material: Polycarbonate
• Access control: Plug & Charge (no RFID)
• Metering: No integrated MID-compliant meter
• Standby power consumption: < 1 W
• Overvoltage category: III
• Certifications: CE

Final note

The ABL 1W2201 combines high charging speed with simple operation, ideal for users who want a powerful and reliable wallbox without extra authentication steps.
