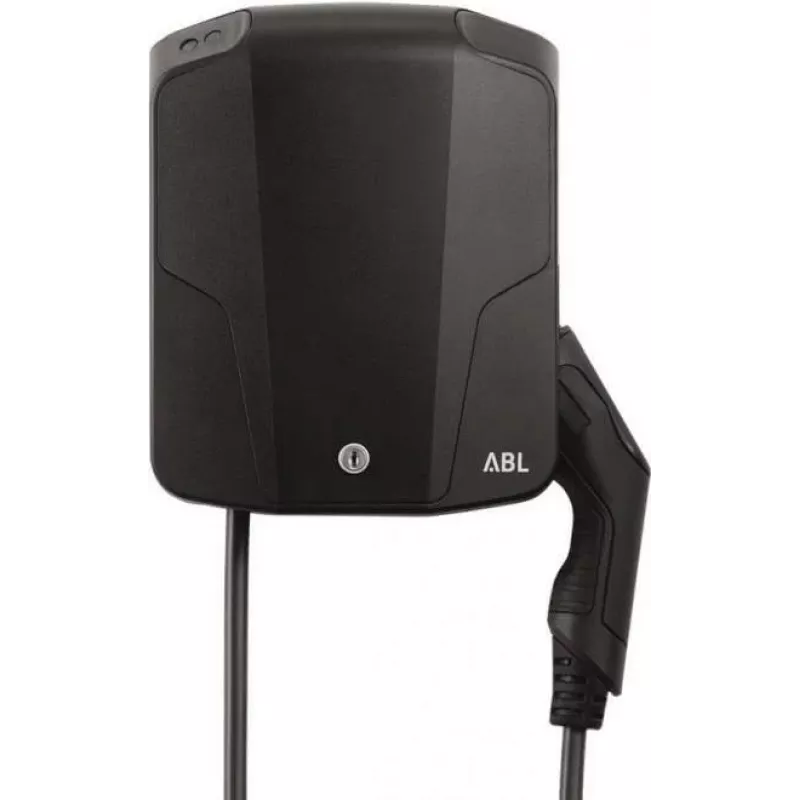

ABL Wallbox eMH1 SG-C2-1/11I0F0-M0 1W1101 com cabo, 3 fases, 400V 16A 11kW (1W1101)

Charging an electric vehicle at home can be slow and inconvenient with a standard outlet. The ABL Wallbox eMH1 SG-C2-1/11I0F0-M0 solves this by providing a dedicated 11 kW three-phase charging station with an integrated Type 2 cable, delivering faster and safer charging for your EV.

Who is it for

This wallbox is ideal for homeowners and businesses with a three-phase 400V supply who need a reliable, key-switch controlled charging point for daily use. It suits drivers of all electric vehicles with a Type 2 inlet.

Main features

• 11 kW charging power from a 400V 16A three-phase supply
• Integrated Type 2 charging cable, 5 m long
• Key switch access control prevents unauthorized use
• Robust polycarbonate housing with IP54 protection
• LED status indicator for clear operational feedback
• Wall-mounted design for convenient installation

Specifications

• Charging power: 11 kW
• Charging current: 16 A
• Phases: 3-phase
• Nominal voltage: 400 V AC
• Connector type: Type 2 (integrated cable)
• Cable length: 5 m
• Access control: Key switch
• DC fault current detection: Yes, 6 mA
• AC fault current protection: Requires external Type A RCD
• Protection class (housing): IP54
• Impact resistance: IK08
• Mounting type: Wall-mounted
• Energy meter: No (Non-MID compliant)
• Communication interface: None
• Operating temperature: -30 to +50 °C
• Housing material: Plastic (Polycarbonate)
• Status indicator: LED
• Overcurrent protection: Requires external circuit breaker (e.g., 3x 16A C-characteristic)

Tips

Ensure your electrical installation includes a suitable Type A RCD and a 3x16A C-characteristic circuit breaker. The key switch provides simple access control, but for more advanced features like app control or energy metering, consider other models in the eMH1 range.
