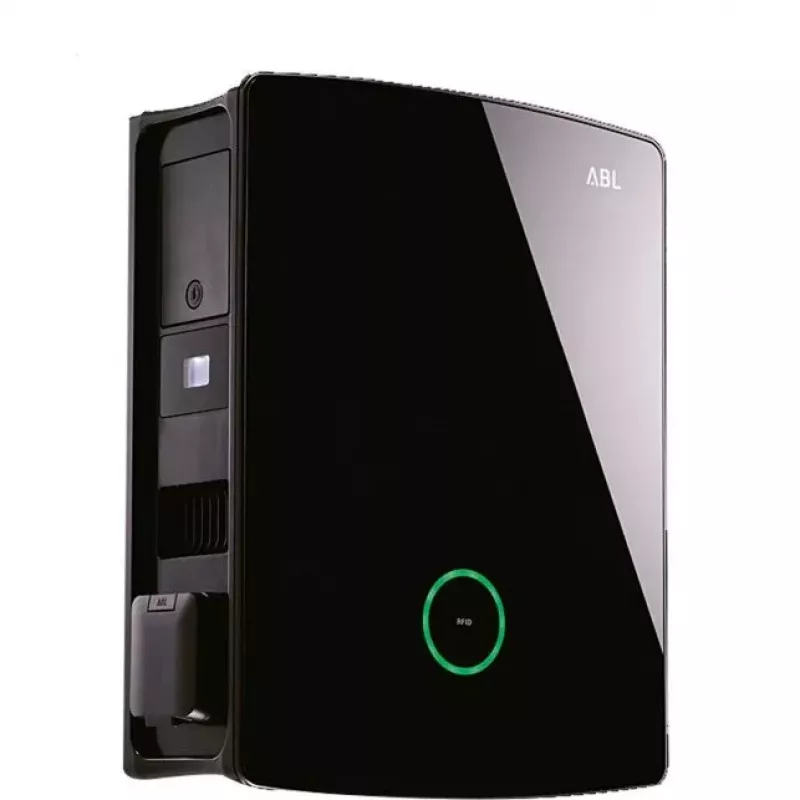

Wallbox ABL SURSUM eM4 Twin 11/22 kW 2x Type 2 conforme Eichrecht com controlador

The ABL SURSUM eM4 Twin Wallbox is a high-performance electric vehicle charging station designed for commercial and residential use. With dual Type 2 sockets and configurable charging power up to 22 kW, it offers efficient and reliable charging for two vehicles simultaneously. The wallbox is Eichrecht (MID) compliant, ensuring accurate billing and legal metrology. Integrated dynamic load management optimizes energy distribution, while OCPP 1.6 J communication enables remote monitoring and control. The robust IP54-rated housing with IK10 impact resistance ensures durability in various environments.

Advantages

Dual charging points for simultaneous use, configurable 11/22 kW power, MID-certified energy meter for precise billing, integrated dynamic load management, OCPP 1.6 J for smart grid integration, RFID and Plug & Charge access control, and high protection rating (IP54/IK10).

Suitable for

• Commercial parking lots and fleet charging
• Apartment buildings and multi-unit dwellings
• Workplace charging stations
• Public charging infrastructure

Key specifications

• Charging Power: 11 kW / 22 kW (configurable)
• Number of Charging Points: 2
• Connector Type: 2x Type 2 Sockets (IEC 62196-2)
• Input Voltage: 3-phase, 400 V AC
• Max. Current per Charging Point: 32 A
• Communication: OCPP 1.6 J
• Network: Ethernet (RJ45), optional 4G/LTE
• Access Control: RFID (Mifare), Plug & Charge (ISO 15118)
• Energy Meter: Integrated, MID certified
• Load Management: Integrated dynamic load management
• DC Fault Current Detection: Integrated (6 mA)
• RCD Type: Type A
• Protection Class: IP54
• Impact Resistance: IK10
• Operating Temperature: -30°C to +50°C
• Housing Material: UV-resistant plastic
• Display: LED status indicators

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. The wallbox supports OCPP 1.6 J for integration with backend systems. Optional 4G/LTE module available for remote connectivity.
