Acessório de rack Lanview RAS205WH branco 30 kg 1U

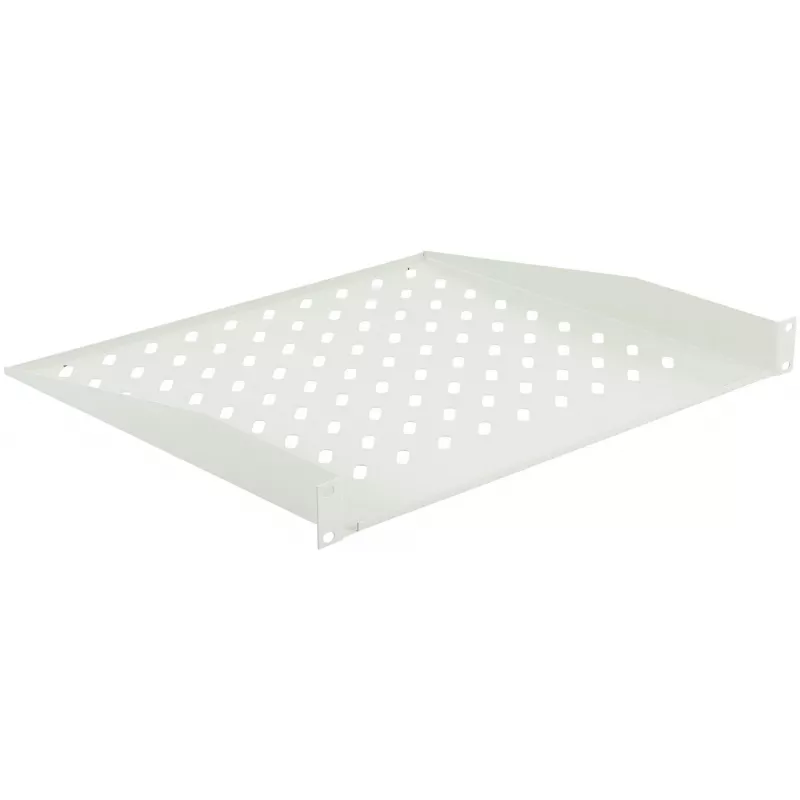

Logon Professional RAS205WH is a 19" 1U rack mount shelf with 2-point connections, designed to fit standard 19" cabinets. The shelf includes ventilation slots and can be fitted with two optional side brackets with adjustable depth to secure the rear when needed. Color: RAL 7035.

Advantages

The shelf provides a compact 1U solution for mounting non-rackable equipment and accessories in 19" cabinets. Its 2-point connection design ensures straightforward installation, while ventilation slots help with passive airflow. Optional adjustable side brackets allow rear support and depth adjustment to match different cabinet interiors.

Suitable for

• Mounting small network devices and peripherals that do not have rack ears
• Holding switches, patch panels, power strips or monitoring devices
• Temporary or permanent placement of lightweight equipment in 19" cabinets

Key specifications

• Model: Logon Professional RAS205WH
• Manufacturer MPN: RAS205WH
• Dimensions (mm): W 486 × D 400 × H 4
• Maximum static load: 3 kg
• Mounting: 19" 2-point rack mount, 1U
• Color: RAL 7035 (light grey)

How to use

Install the shelf into a 19" cabinet using the 2-point front mounting holes aligned with the cabinet's rack posts. If additional rear support is required, attach the optional side brackets and adjust their depth to reach the cabinet rear, then secure them according to the cabinet's mounting pattern. Place equipment on the shelf ensuring the total static load does not exceed the specified maximum.

Recommendations

Do not exceed the maximum static load. Use the optional adjustable side brackets for rear support with heavier or deeper devices. Ensure equipment is positioned to allow airflow through the ventilation slots and secure cables to prevent strain on mounted devices.
