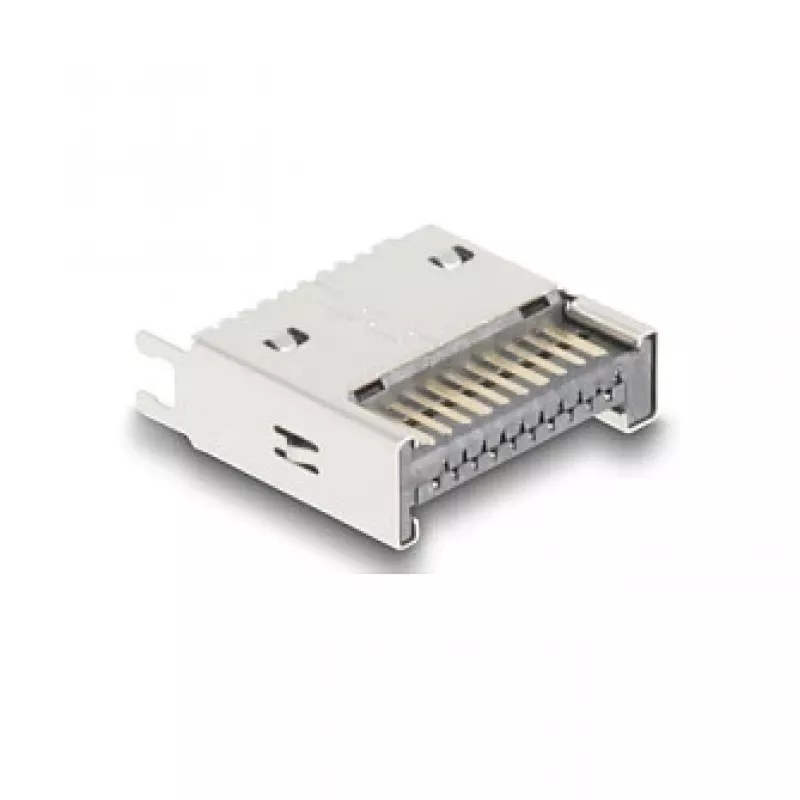

Acessório para placa de circuito DeLOCK 67192 prateado 1 unid. reto contactos dourados

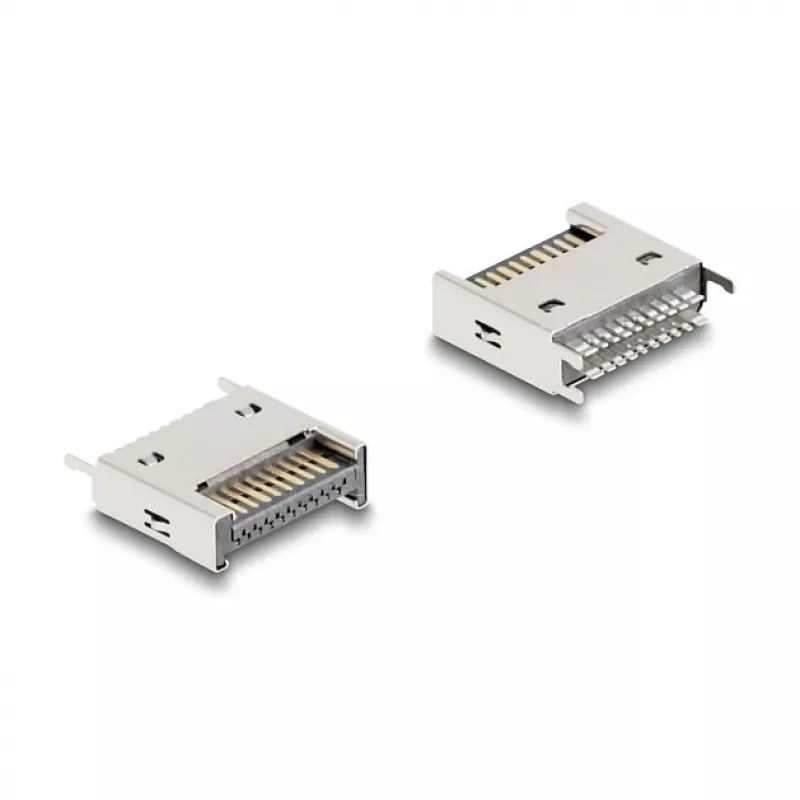

The DeLOCK Printed Circuit Board accessory 67192 Silver is a compact straight connector designed for reliable electrical contact on printed circuit boards. It features gold-plated contact surfaces for improved conductivity and corrosion resistance and comes in a silver finish. With dimensions of 11 mm length, 10.1 mm depth and 3.7 mm height, this board-mounted accessory is intended for integration where a small, robust straight connector is required.

Advantages

Gold plating on the contacts ensures low contact resistance and enhanced longevity in environments where frequent mating cycles or oxidation could occur. The small footprint and straight orientation make this accessory suitable for space-constrained PCB layouts. A silver outer finish provides a neutral appearance compatible with many board assemblies. Manufactured in China and Taiwan to standard production practices, the component is offered as a single-piece unit for straightforward installation.

Suitable for

• PCB-level data or signal connections in consumer electronics
• Prototyping and development boards requiring compact straight connectors
• Embedded systems where space is limited and reliable contact is needed
• Repair or replacement of compatible board connectors in small devices

Key specifications

• Connector orientation: Straight
• Contact plating: Gold plating for improved conductivity
• Finish / colour: Silver
• Dimensions (L × D × H): 11 mm × 10.1 mm × 3.7 mm
• Packaging quantity: 1 piece
• Intended use: PCB-mounted connector accessory for signal/data connections

How to use

Place the accessory on the printed circuit board according to the board layout and solder the contact leads to the designated pads using standard soldering techniques. Ensure proper alignment so the straight orientation matches the mating connector direction. Use appropriate temperature settings for the solder alloy in use and avoid excessive heat exposure to surrounding components. After soldering, visually inspect the joints for full wetting and continuity using a multimeter before integrating into the final assembly.

Recommendations

For reliable long-term performance, keep mating cycles within the specified limits of gold-plated contacts, avoid abrasive cleaning methods, and store unused parts in a dry, dust-free environment. When used in high-vibration applications, verify mechanical retention and consider additional securing measures on the PCB.
