Acessório para sistema de refrigeração Bitspower BP-MB45R

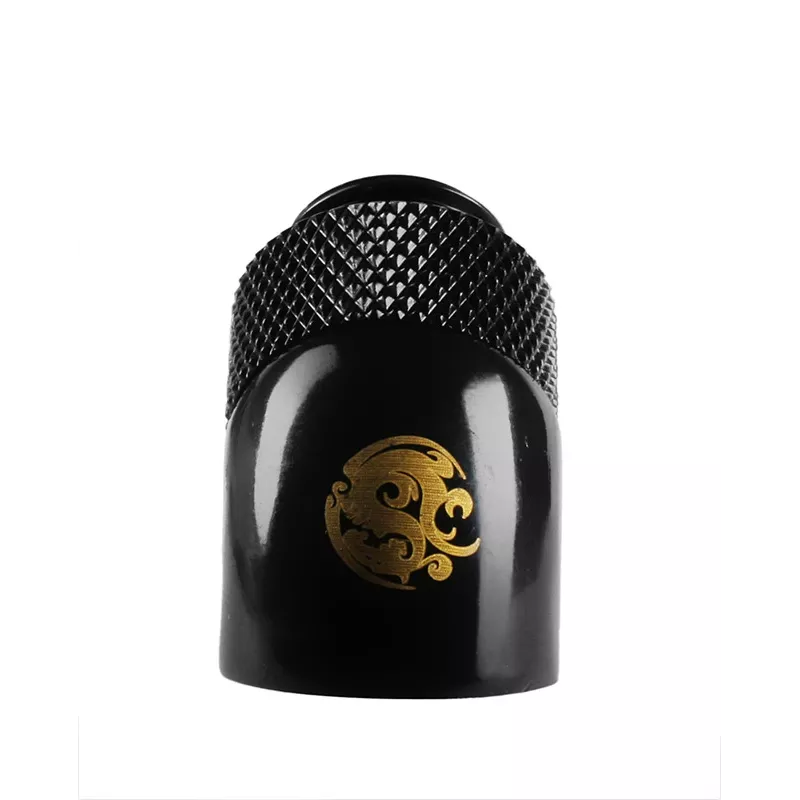

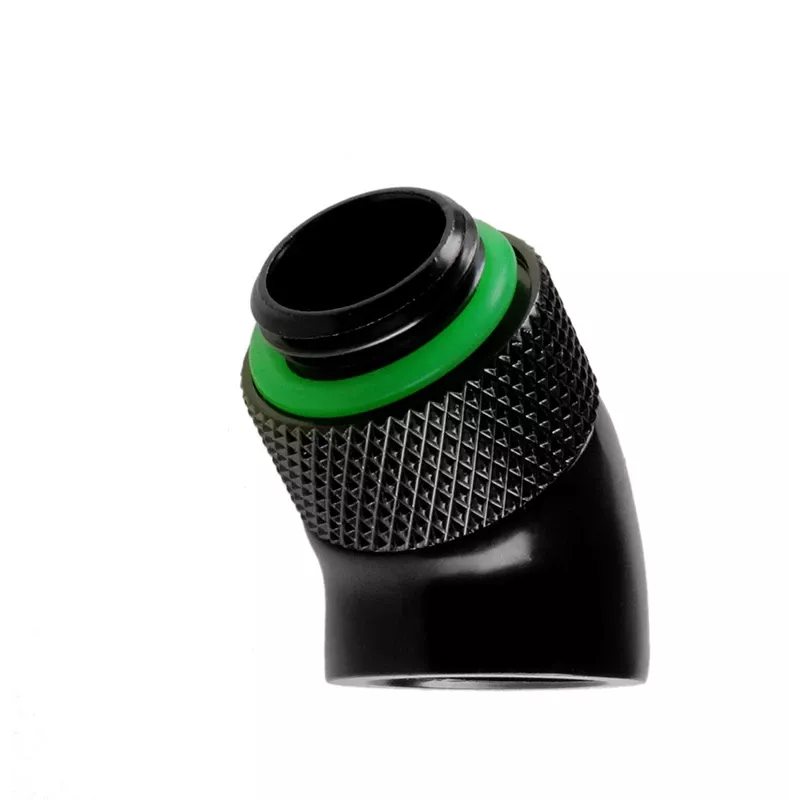

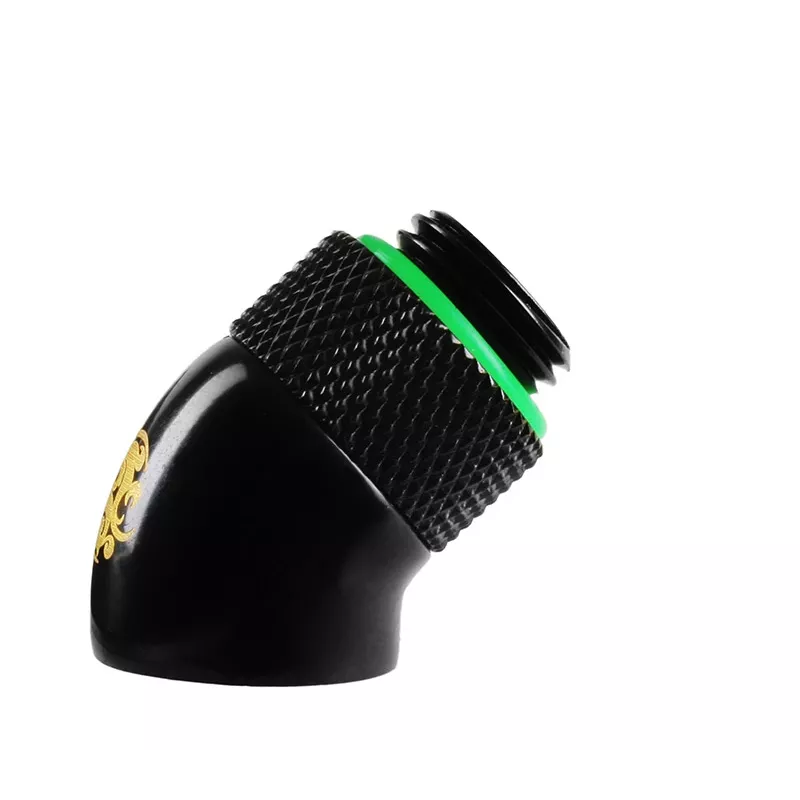

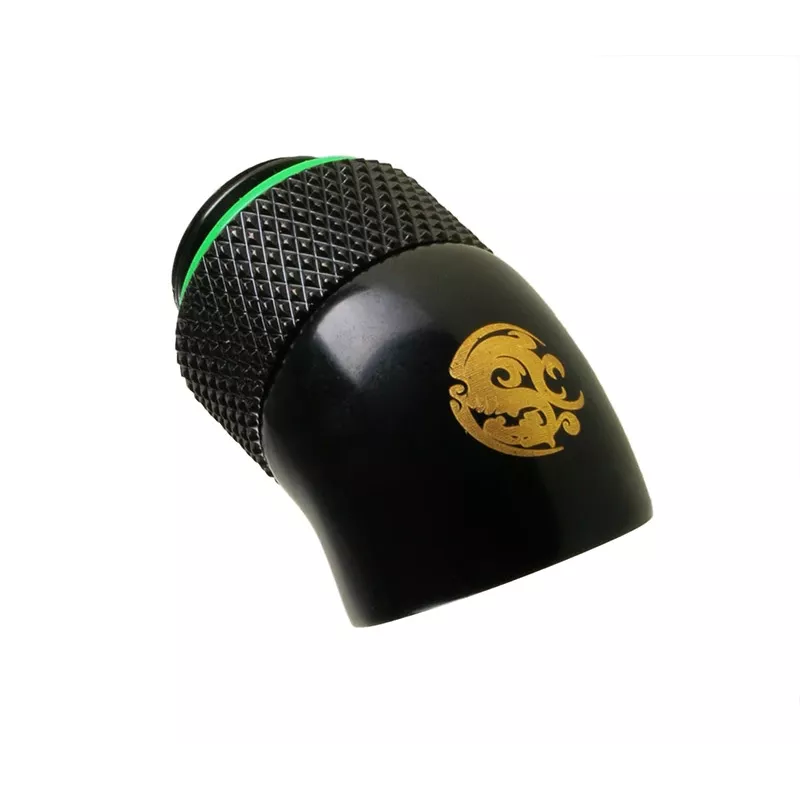

The Bitspower BP-MB45R is a precision cooling system accessory crafted from high-quality brass and finished in deep black e-plating. Measuring 18 x 21.5 x 32.8 mm, this 45-degree fitting is engineered to provide a true hi-flow path while allowing dual 360-degree rotations for flexible hose routing and efficient coolant movement. The concealed O-ring design reduces visible seals and contributes to a secure, leak-resistant connection compatible with custom PC water cooling loops.

Advantages

The brass construction ensures long-term durability and corrosion resistance, while the hi-flow internal geometry minimizes flow restriction for improved cooling performance. The dual 360-degree rotation offers convenient alignment without stressing tubing or fittings. The deep black e-plated finish gives a uniform appearance and additional surface protection. Compliance with RoHS confirms that the component meets applicable environmental and safety requirements.

Suitable for

• Custom PC water cooling loops where angled routing is required
• High-flow cooling systems seeking reduced pressure drop
• Builds that benefit from discreet, black-finished fittings

Key specifications

• Material: high-quality brass
• Finish: deep black e-plating
• Angle: 45 degrees
• Rotational capability: dual 360-degree rotations
• Flow design: true hi-flow internal geometry
• Seal: concealed O-ring
• Dimensions: 18 x 21.5 x 32.8 mm
• Standards: RoHS compliant

How to use

Install the fitting by selecting the appropriate connection points in your water loop and hand-threading the component until the concealed O-ring seats. Rotate the fitting as needed to achieve the desired hose routing using the dual 360-degree rotation, then tighten to a secure fit without over-torquing to avoid damaging threads or seals. Verify alignment and ensure tubing is correctly seated over barbs or compression ends before filling the loop. Perform a pressure test or leak check prior to normal operation.

Recommendations

Use compatible tubing and matching-size connectors to preserve the hi-flow characteristics; inspect O-rings periodically and replace if worn. When assembling, avoid excessive force and follow standard leak-testing procedures to ensure a reliable, long-lasting cooling installation.
