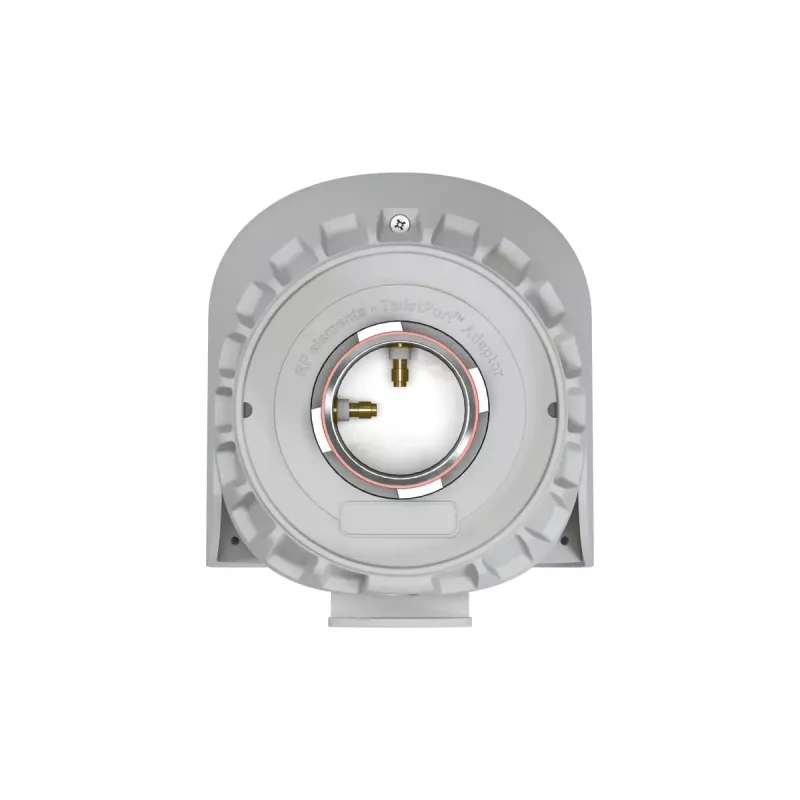

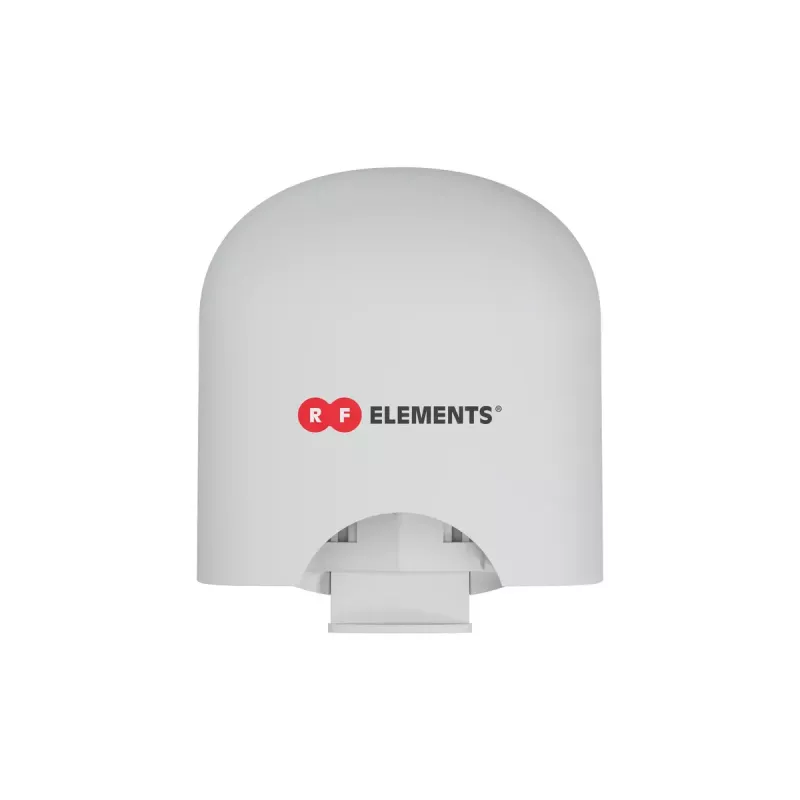

Adaptador de antena RF Elements TPA-RM5 cinzento ABS alumínio 112x112x130mm

The RF Elements TPA-RM5 Grey ABS Aluminium antenna adaptor provides a compact, tool-free solution to integrate Ubiquiti Rocket M5 radios with RF Elements TwistPort™ antennas. Housed in a grey ABS and aluminium enclosure and measuring 112x112x130 mm, this adaptor adapts the Rocket M5 to the proprietary TwistPort™ waveguide connector so third‑party radios can be used with any TwistPort™ antenna. The design emphasises simple installation and reliable RF performance across a wide frequency range.

Advantages

The adaptor supports a broad frequency band from 5180 to 6400 MHz and is engineered to maintain a well-managed VSWR across that spectrum, delivering consistent signal transfer between the radio and TwistPort™ antennas. Its mixed ABS and aluminium construction offers mechanical durability while keeping weight low (approximately 0.4 kg). The tool-free TwistPort™ integration streamlines deployment and reduces installation time when pairing a Rocket M5 radio with TwistPort™ antenna systems.

Suitable for

• Integrating Ubiquiti Rocket M5 radios with RF Elements TwistPort™ antennas
• Outdoor and sheltered outdoor wireless backhaul and point-to-point links
• Installation scenarios requiring compact, lightweight adaptors

Key specifications

• Compatible frequency range: 5180–6400 MHz
• Material: grey ABS housing with aluminium components
• Dimensions: 112 x 112 x 130 mm
• Weight: approximately 0.4 kg
• Connector type: TwistPort™ waveguide interface for tool‑free radio integration

How to use

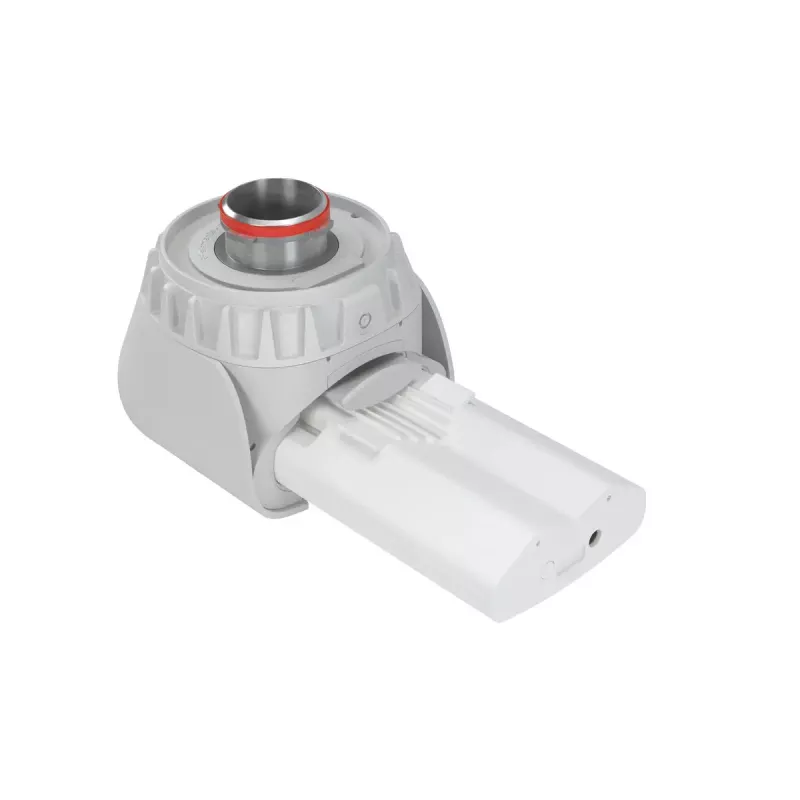

Mount the RF Elements TPA-RM5 adaptor to the Rocket M5 radio by aligning the radio body with the adaptor’s mounting interface and engaging the TwistPort™ connection; the adaptor is designed for tool-free installation. After securing the radio to the adaptor, attach the assembled unit to a compatible TwistPort™ antenna following the antenna manufacturer’s mounting instructions. Ensure all mechanical fastenings are secure and that the RF path is unobstructed prior to powering the radio.

Recommendations

Install the adaptor in locations that provide adequate environmental protection for the radio and connections. Verify antenna alignment and use appropriate surge protection and grounding practices for outdoor installations. Check that the Rocket M5 firmware and antenna specifications match the intended operating frequencies within 5180–6400 MHz to ensure optimal performance.
