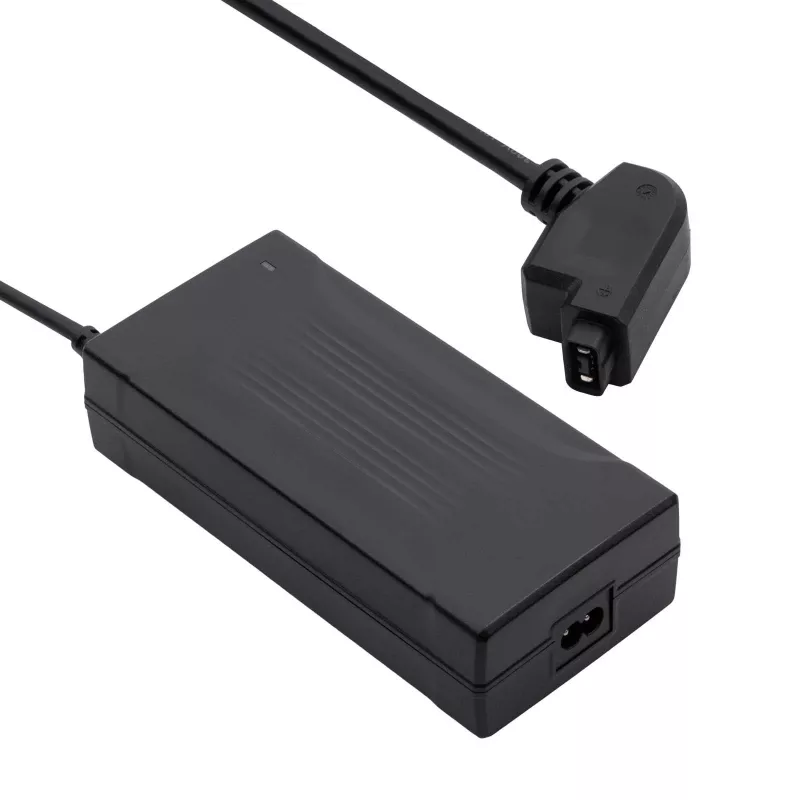

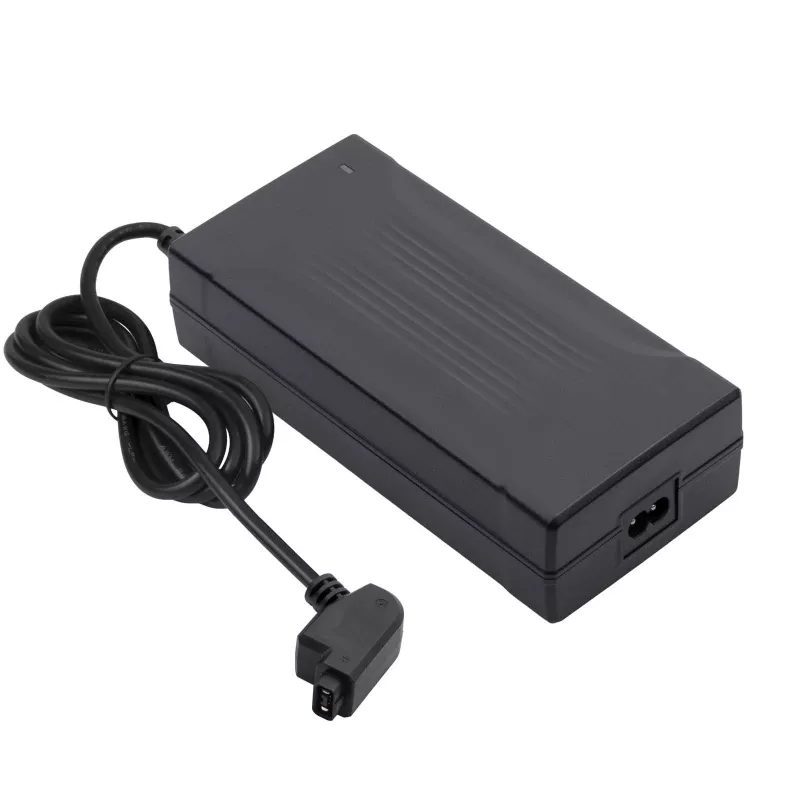

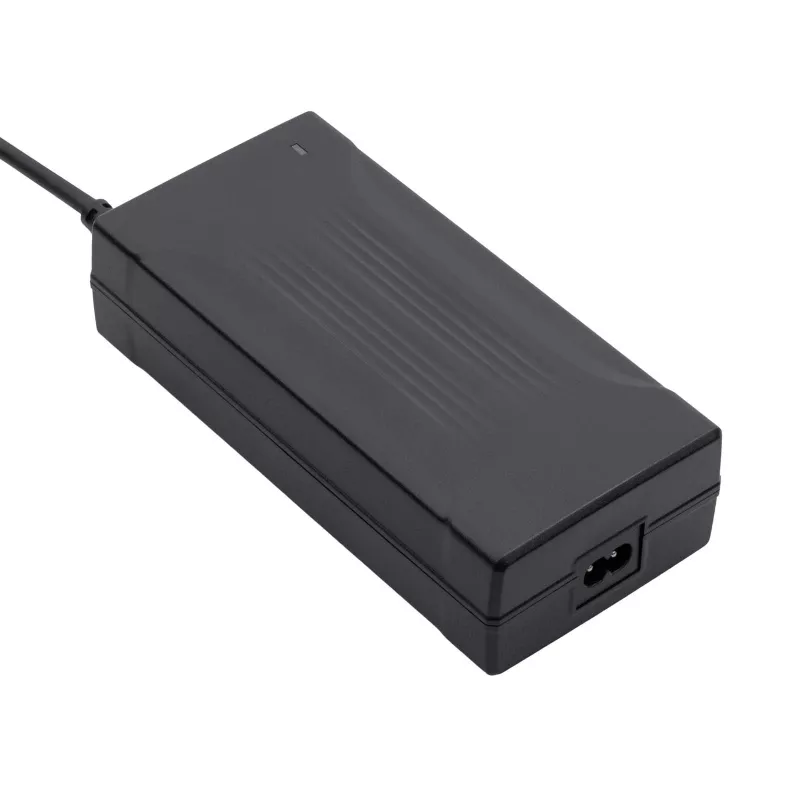

Akyga AK-EV-27 Carregador 42V/4A 168W Shimano 1,2m

The Akyga AK-EV-27 is a replacement charger for the Shimano Steps EC-E8004, designed for e-bikes with a Shimano Steps battery or drive system. It delivers 42 V / 4 A and includes a 1.2 m cable.

Key features

• Replacement for Shimano Steps EC-E8004 charger
• Compatible with selected Shimano Steps batteries: BT E8035, BT E8020, BT E8014, BT E8010, BT E6010, BT E6001, BT E6000
• Supports batteries of various capacities, including 504Wh and 630Wh
• Safety features: OVP, OCP, OPP, SCP
• IP20 rating

Specifications

• Brand: Akyga
• MPN: AK-EV-27
• Product type: AC/DC adapter
• Supply voltage: 100-240 V
• Power consumption: < 1.1 A
• Efficiency: > 80 %
• Output voltage: 42 V
• Output amperage: 4 A
• Outlet cord length: 1.2 m

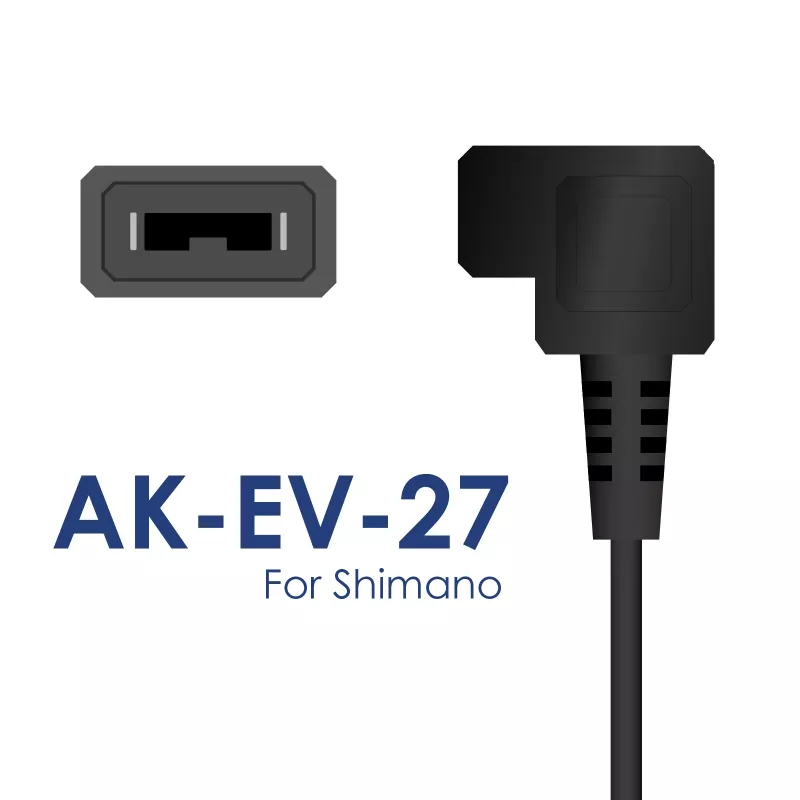

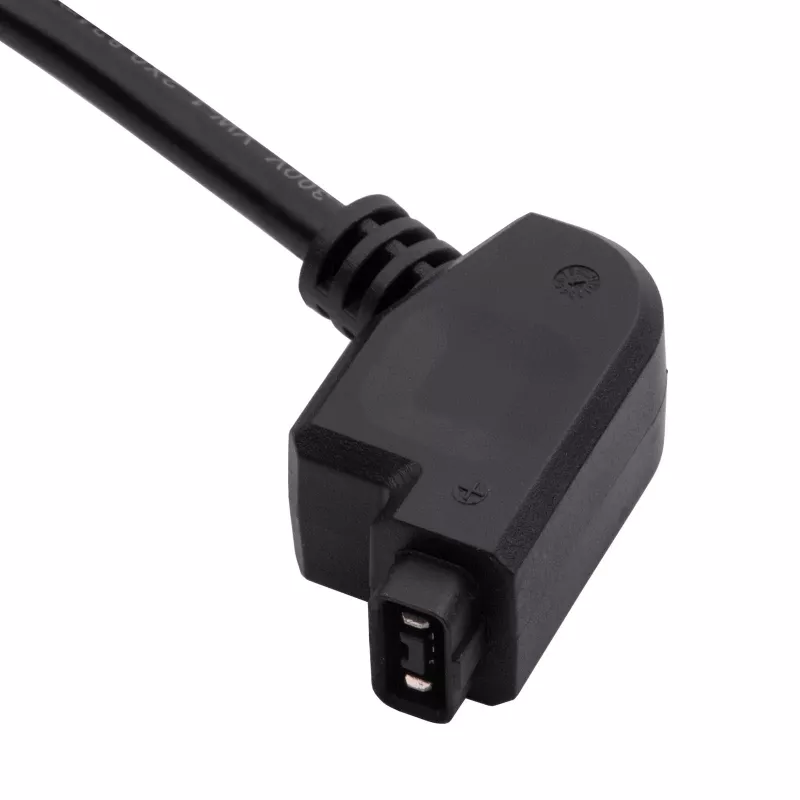

• Output connector: Shimano EC-E8004
• Maximum power: 168 W
• Power inlet: IEC C8
• Mechanical switch: None
• Ground wire: None (II protection class)
• IP Rating: IP20
• OVP: Yes
• OCP: Yes
• OPP: Yes
• SCP: Yes
• Ferrite filter: None
• Power cable included: None
• Material: ABS
• Product color: Black
• Display: None
• MTBF: 10000 h
• Package: EcoBox
• Product size (L x W x H): 205 x 110 x 45 mm
• Net weight: 801 g
