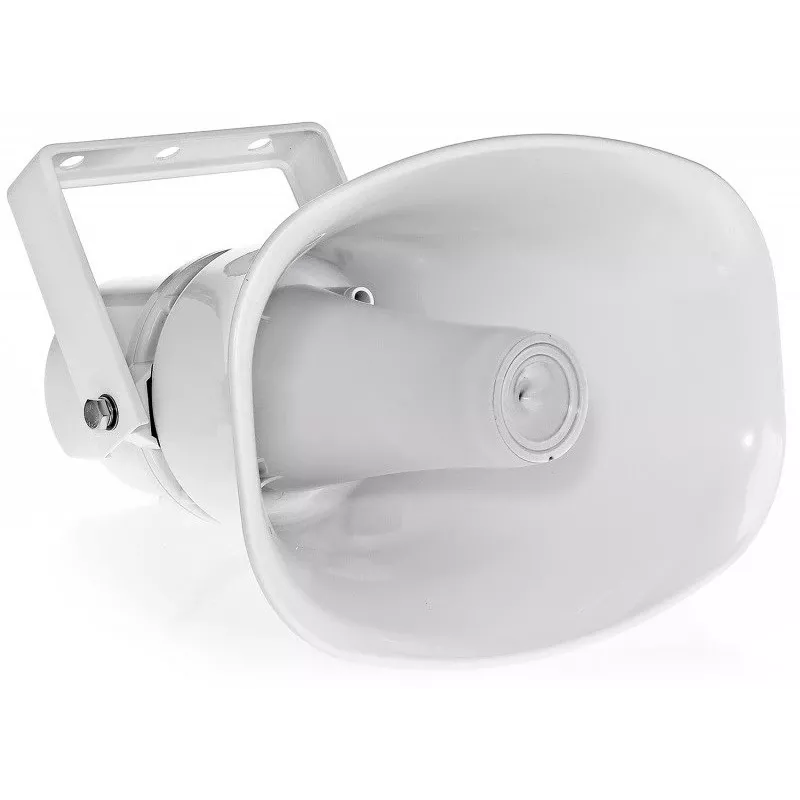

Altifalante de corneta HQM-ZT301 30W 100V branco

The HQM-ZT301 is a high-performance 30W horn speaker designed for 100V line PA systems. Ideal for outdoor and industrial environments, it delivers clear, powerful sound with wide coverage. The robust ABS plastic enclosure with IP66 rating ensures durability against harsh weather conditions.

Advantages

High sensitivity (108 dB) and maximum SPL of 123 dB ensure excellent sound projection. The adjustable U-bracket allows flexible mounting, and the built-in transformer with multiple power taps (30W, 15W, 7.5W, 3.75W) provides easy integration into existing 100V line systems.

Suitable for

• Public address announcements in outdoor areas
• Industrial facilities, warehouses, and factories
• Commercial spaces like shopping centers and sports venues
• Emergency evacuation systems

Key specifications

• Rated Power (RMS): 30 W
• Voltage Line: 100 V
• Power Taps: 30W, 15W, 7.5W, 3.75W
• Frequency Response: 300 Hz - 10 kHz
• Sensitivity (1W/1m): 108 dB
• Maximum SPL: 123 dB
• Dispersion Angle (H x V): 120° x 90°
• Ingress Protection: IP66
• Enclosure Material: ABS Plastic
• Mounting Bracket Material: Aluminum
• Color: White
• Built-in Transformer: Yes (100V Line)
• Mounting Type: U-Bracket (Adjustable)
• Driver Type: Full-range
• Operating Temperature: -20°C to +50°C
• Impedance (at 30W tap): 333 Ohms

Recommendations

For optimal performance, use with a compatible 100V line amplifier. Ensure proper mounting and weatherproofing for outdoor installations.
