Altifalante de teto de linha 100V MONACOR EDL-28 6W branco

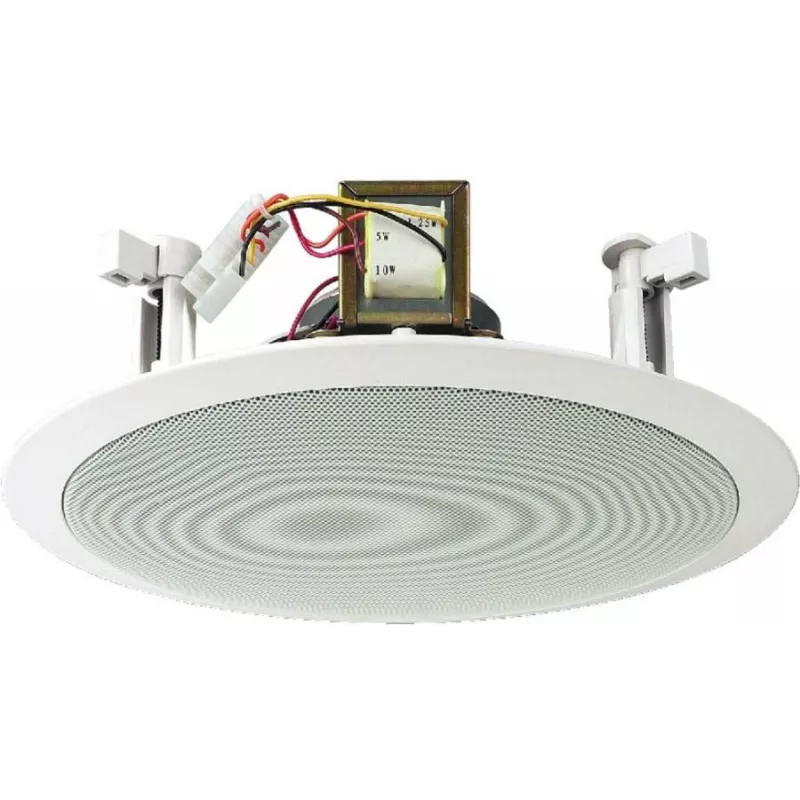

The MONACOR EDL-28 is a high-quality 100V line ceiling speaker designed for professional audio installations. Featuring a 13 cm (5.25") full-range driver and an integrated 100V line transformer, it delivers clear and reliable sound for public address and background music systems. With a power handling of 6W RMS and multiple power taps (6W, 3W, 1.5W, 0.75W), it offers flexibility for various installation requirements. The speaker is housed in a durable ABS plastic enclosure with a white metal grille (RAL 9010), making it suitable for discreet ceiling mounting in commercial and residential environments.

Advantages

Easy installation with spring clamps, integrated transformer for 100V line systems, and a compact design that fits standard ceiling cutouts. The speaker provides a wide frequency response from 100 Hz to 18 kHz, ensuring natural sound reproduction for speech and music.

Suitable for

• Public address systems in offices, retail stores, and restaurants
• Background music in hotels, lobbies, and waiting areas
• Ceiling speaker installations in schools, hospitals, and conference rooms

Key specifications

• Speaker Type: 100V Line Ceiling Speaker
• Driver Size: 13 cm (5.25") Full-Range
• Rated Power (RMS): 6 W
• Power Taps (100V): 6 W, 3 W, 1.5 W, 0.75 W
• Frequency Response: 100 - 18,000 Hz
• Sensitivity (1W/1m): 90 dB
• Max SPL: 98 dB
• Housing Material: ABS Plastic
• Grille Material: Metal
• Color: White (RAL 9010)
• Mounting Type: Spring Clamps
• Cutout Diameter: 155 mm
• Overall Diameter: 180 mm
• Installation Depth: 60 mm
• Connection Type: Screw Terminals
• Transformer: Integrated 100V Line Transformer

Recommendations

For optimal performance, pair the MONACOR EDL-28 with a compatible 100V line amplifier. Ensure proper installation by a qualified professional to achieve the best sound quality and safety.
