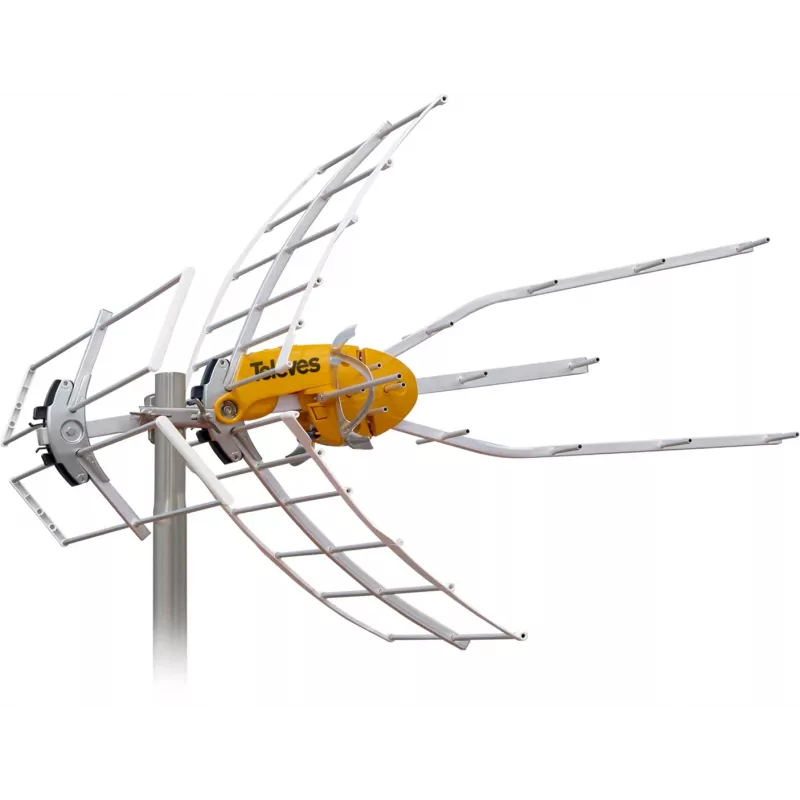

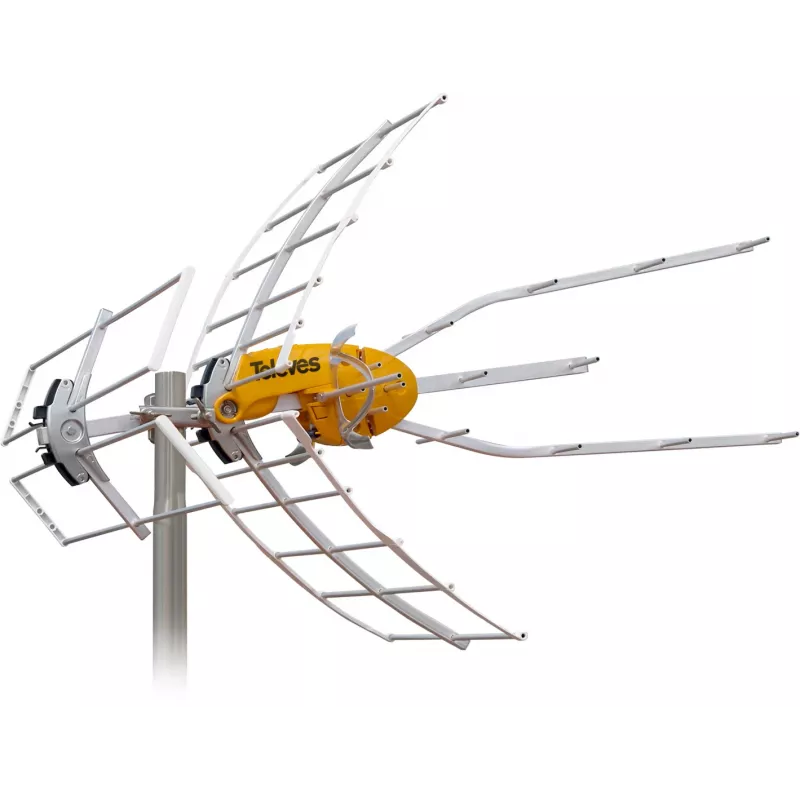

Antena de TV TELEVES Ellipse Mix BIII/UHF (LTE700) com tecnologia BOSS - Ref. 148821

In fringe signal areas where VHF Band III and UHF channels need to be captured from a single antenna, the TELEVES Ellipse Mix BIII/UHF (LTE700) delivers a robust and future-proof reception solution. This outdoor antenna combines a high-gain UHF section with an integrated Band III dipole, all enclosed in a compact elliptical radome that withstands harsh weather. The built-in LTE700 filter protects against interference from LTE/5G transmissions in the 700 MHz band, ensuring clean DVB-T2 reception.

Key specifications

• Combined BIII (174-230 MHz) and UHF (470-694 MHz) reception
• Integrated LTE700 (C48) notch filter
• Passive gain: BIII 10 dBi, UHF 17 dBi
• Active gain with BOSS: BIII 20 dBi, UHF 38 dBi
• Automatic gain control (AGC) via BOSS technology
• Low noise figure: 2.5 dB (typ.) when powered
• Power supply: 12-24 Vdc, 40 mA (BOSS active)
• Horizontal beamwidth: 30°
• Front-to-back ratio (UHF): >20 dB
• Polarization: horizontal or vertical
• F-type output connector
• IP53 weather protection
• Operating temperature: -25 to +55 °C
• Mast clamp fits up to 60 mm diameter
• Wind load: 110 N at 130 km/h

Why choose it

The Ellipse Mix stands out for its dual-band versatility and the intelligent BOSS preamplifier. BOSS technology automatically adjusts the gain to match the incoming signal level, preventing overload in strong-signal areas while boosting weak signals in remote locations. The result is a stable output with minimal distortion, making this antenna ideal for installations where signal strengths vary throughout the day. Additionally, the LTE700 filter provides peace of mind for viewers located near cellular base stations, as it effectively rejects potential interference without sacrificing UHF performance.

Ideal use cases

• Single-family homes in rural or suburban areas with mixed BIII/UHF reception
• Replacing separate VHF and UHF antennas with a single, space-saving unit
• DVB-T2 installations requiring LTE700 interference protection
• Vertical or horizontal polarization to match local transmitter configurations

Good to know

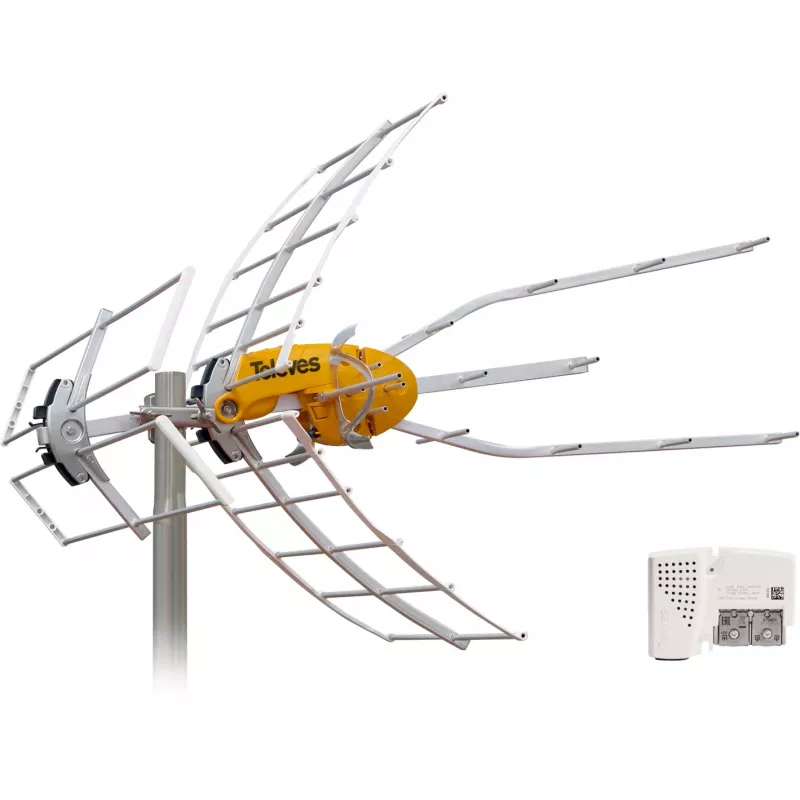

This antenna is designed for outdoor mast mounting and includes a robust clamp suitable for masts up to 60 mm in diameter. The output is an F-type connector, ensuring a secure and weather-tight connection to your coaxial cable. When using the active BOSS amplifier, a suitable power injector (12-24 Vdc) is required; the antenna's low current draw of 40 mA makes it easy to power via standard bias-T or receiver supply. The IP53-rated radome protects the internal electronics from rain and dust, and the lightweight yet sturdy construction minimizes wind load.
