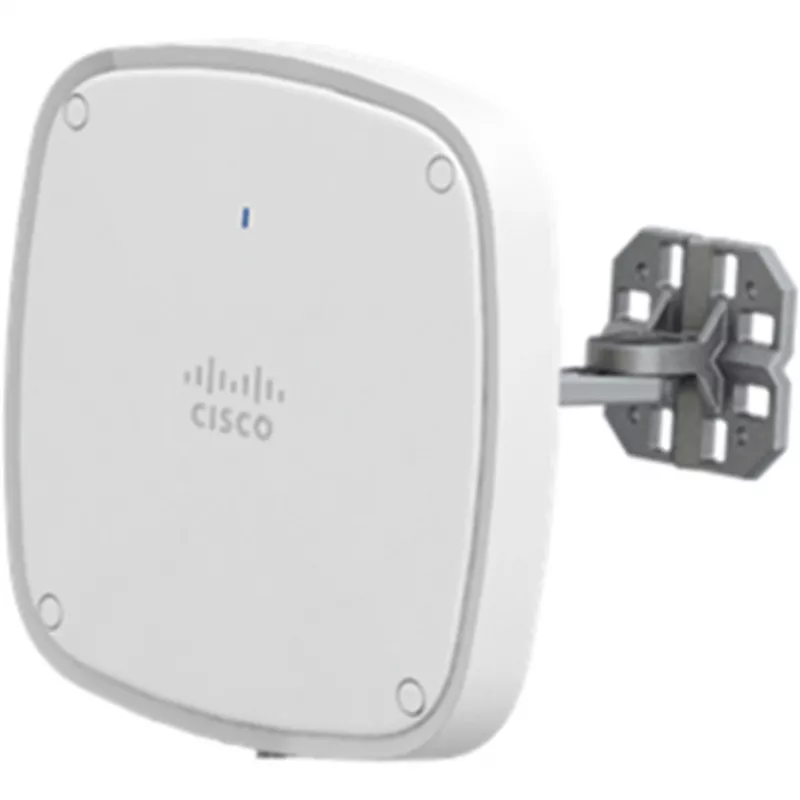

Antena direcional Cisco Catalyst C-ANT9103= 6 dBi Dual-Band MIMO

The Cisco Catalyst C-ANT9103= Dual-Band Directional Wi‑Fi Patch Antenna provides focused wireless coverage with 6 dBi gain for both 2.4 GHz and 5 GHz bands. FCC-approved and designed for directed signal propagation, this patch antenna concentrates transmitted and received energy toward a target area to improve link performance in a chosen direction while reducing energy in other directions.

Advantages

The antenna offers 6 dBi gain on both bands, supports MIMO operation via eight dual-band ports, and uses a DART connector for compatible Cisco installations. Its directional patch design helps increase signal strength and range toward intended coverage zones and reduces interference from unwanted directions. The product is FCC-approved, ensuring regulatory compliance in supported markets.

Suitable for

• Extending Wi‑Fi coverage toward a specific building or outdoor area
• Point-to-area links where focused signal is required
• Deployments needing improved MIMO performance in targeted directions
• Environments where reducing off-axis interference is important

Key specifications

• Model: Cisco Catalyst C-ANT9103= (MPN C-ANT9103=, EAN 0889728272315)
• Gain: 6 dBi (2.4 GHz and 5 GHz)
• Frequency bands: Dual‑band 2.4 GHz and 5 GHz
• Ports: 8 dual‑band MIMO ports
• Connector: DART connector
• Certification: FCC-approved

How to use

Install the Cisco Catalyst C-ANT9103= by mounting it toward the area requiring improved coverage and connect the antenna to the matching Cisco radio or access point using the appropriate DART-compatible cabling. Align the antenna orientation to focus the beam on the target zone and secure all connections. Configure the wireless equipment as usual for MIMO operation and verify performance with site‑survey tools to fine-tune aiming and placement.

Recommendations

Use the antenna in installations where directed coverage and reduced off-axis interference are required; perform on-site testing to optimize orientation and confirm compatibility with Cisco radios and DART connectors.
