Antena omnidirecional VAYOX VA0066 DVB-T/T2 Digital720 Combo branca

The VAYOX VA0066 Digital720 Combo is a versatile omnidirectional antenna designed for reliable reception of DVB-T, DVB-T2, DAB, and FM signals. Its compact and robust construction makes it suitable for indoor, outdoor, and mobile use, including caravans and boats. With a high-gain amplifier and weatherproof design, this antenna ensures clear digital TV and radio reception even in challenging environments.

Advantages

This antenna offers exceptional flexibility with multiple power supply options (USB, 12V car/caravan, or 230V AC adapter) and easy mounting via magnetic base, suction cup, or pole clamp. The included 5-meter coaxial cable simplifies installation, while the omnidirectional pattern eliminates the need for precise aiming.

Suitable for

• Indoor and outdoor DVB-T/T2 digital TV reception
• DAB and FM radio listening
• Mobile use in caravans, boats, or campers
• Areas with weak signal strength requiring high gain

Key specifications

• Antenna Type: Omnidirectional
• Signal Reception: DVB-T, DVB-T2, DAB, FM
• Frequency Range: VHF 174-230 MHz, UHF 470-790 MHz, FM 87.5-108 MHz
• Amplifier Gain: VHF 28 dB, UHF 30 dB, FM 28 dB
• Noise Figure: < 3 dB
• Impedance: 75 Ohm
• Power Supply: DC 5V (USB/Receiver), DC 12V (Car/Caravan), AC 230V (Adapter)
• Connector Type: F-type
• Polarization: Horizontal & Vertical

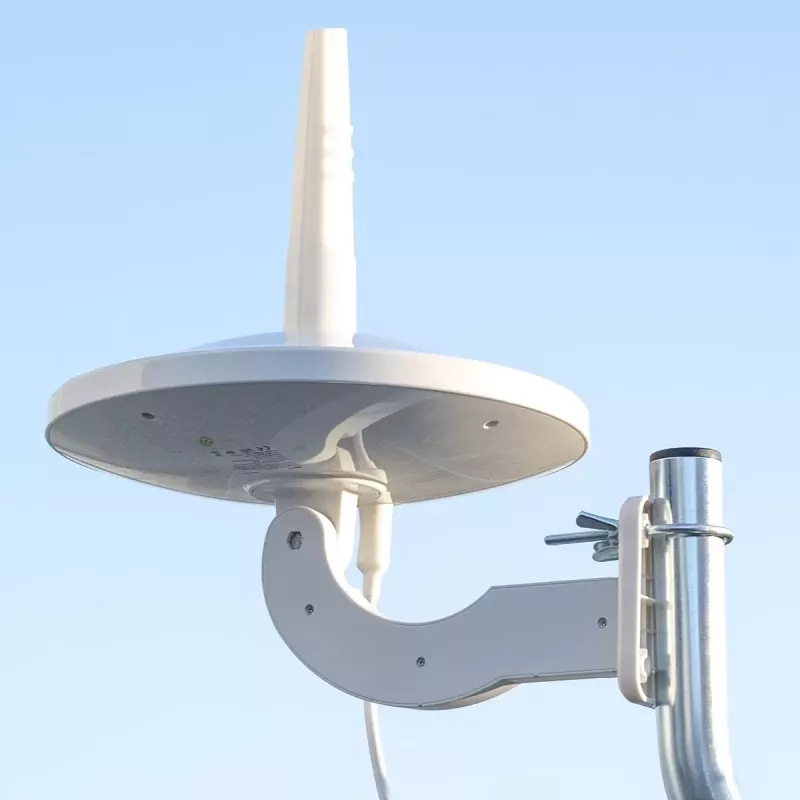

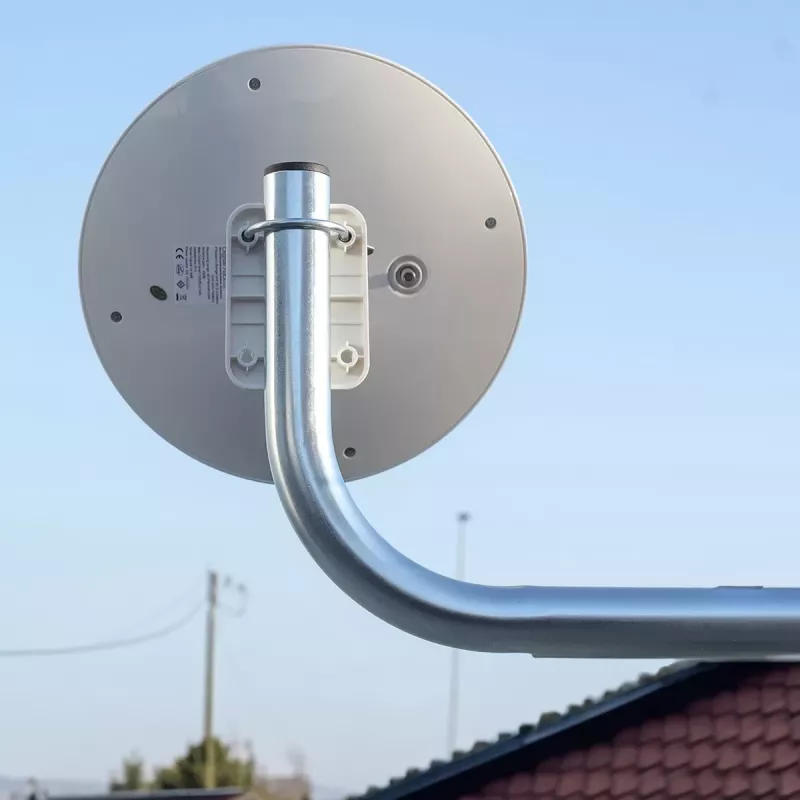

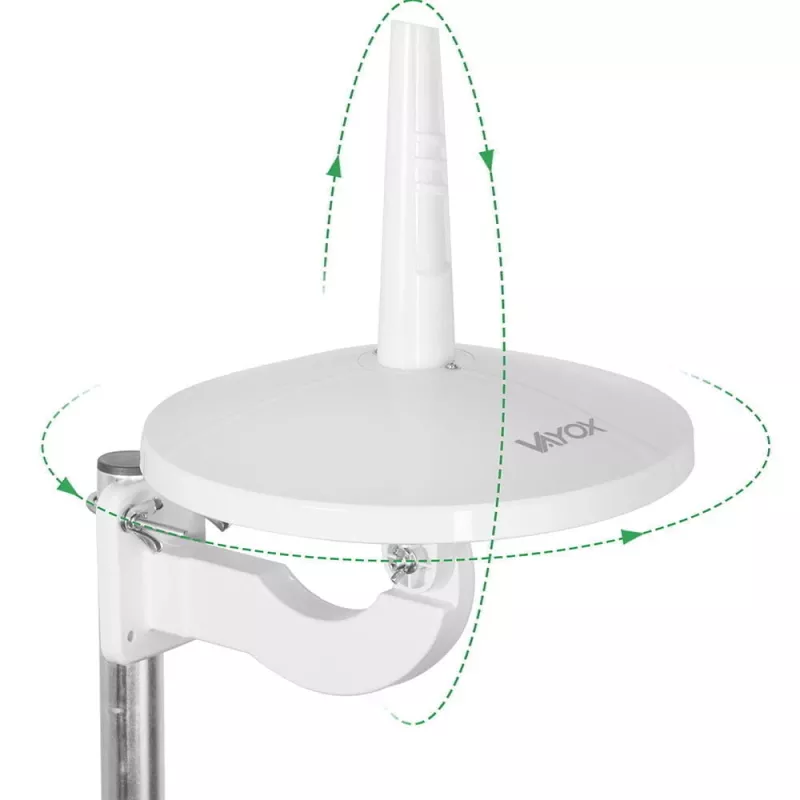

• Mounting Options: Magnetic Base, Suction Cup, Pole Clamp
• Water Resistance: Weatherproof
• UV Resistance: Yes

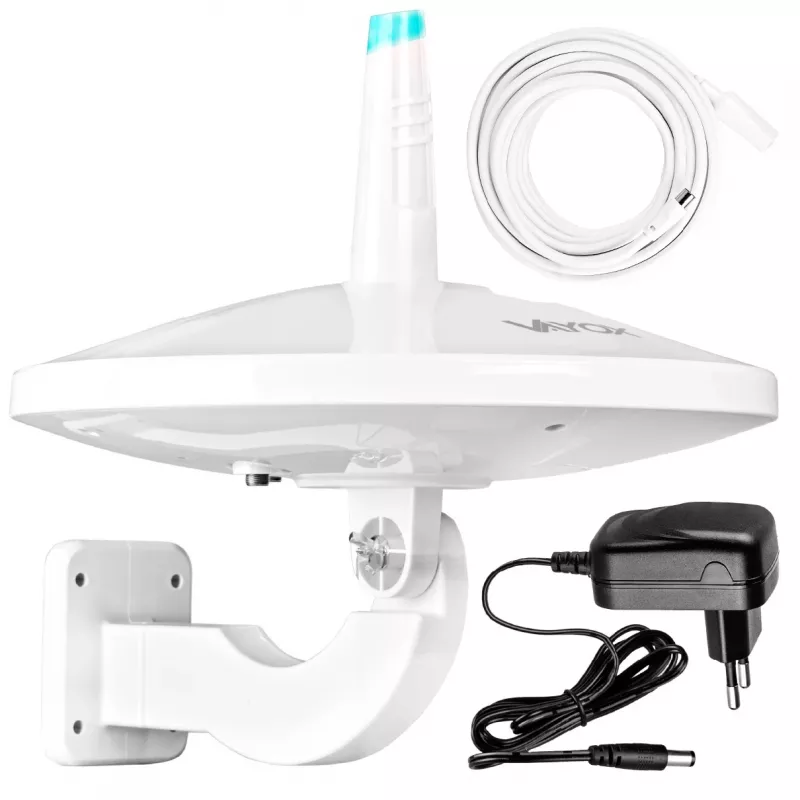

• Included Coaxial Cable Length: 5 meters
• Color: White

Recommendations

For optimal performance, place the antenna in a location with minimal obstructions. Use the included power adapter for stationary indoor/outdoor setups, or the 12V option for mobile applications. Ensure the F-type connector is securely tightened.
