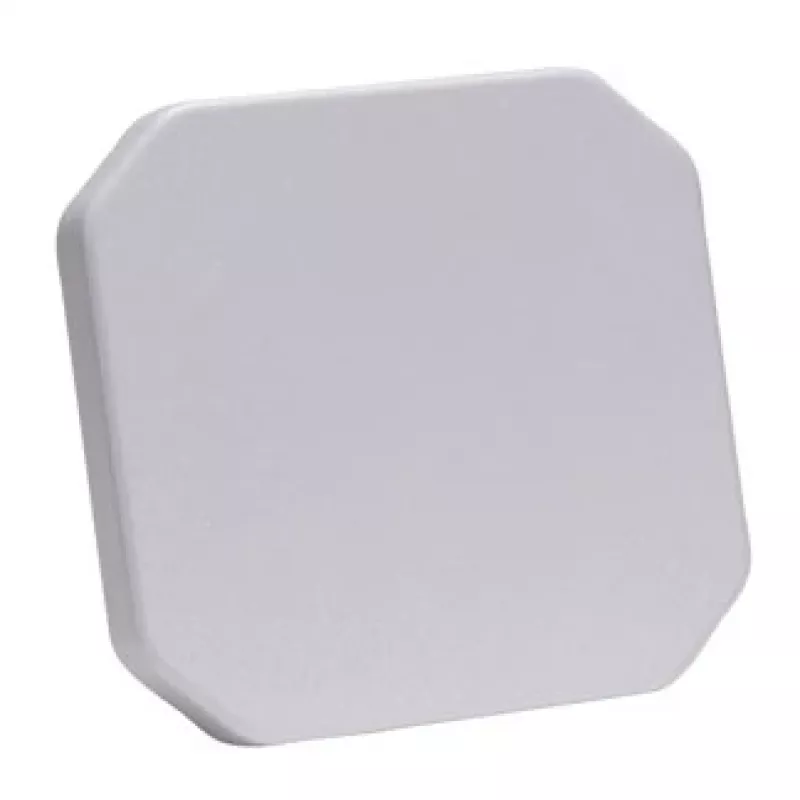

Antena RFID Zebra Symbol AN720 - 6 dBi - antena direcional - branca

The Zebra Symbol AN720 is a high-performance UHF RFID antenna designed for reliable, long-range reading in both indoor and outdoor environments. With a 6 dBi gain and directional pattern, it delivers focused coverage for inventory management, asset tracking, and supply chain applications.

Advantages

Robust IP67-rated housing ensures durability in harsh conditions. Wide frequency range (865-928 MHz) supports global UHF bands. Linear polarization and 70° beamwidth provide consistent read performance. Easy mounting with VESA 75mm, wall, or pole options.

Suitable for

• Warehouse and distribution center dock doors
• Retail inventory management
• Manufacturing and logistics
• Access control and asset tracking

Key specifications

• Antenna type: RFID Antenna
• Frequency range: 865-928 MHz
• Gain: 6 dBi
• Polarization: Linear
• Horizontal beamwidth: 70°
• Vertical beamwidth: 70°
• Connector: RP-TNC Female
• Impedance: 50 Ohm
• VSWR: < 1.5:1
• IP rating: IP67
• Operating temperature: -20°C to 60°C
• Colour: White

Recommendations

For optimal performance, pair with Zebra RFID readers and use appropriate cabling. Ensure proper mounting orientation to maximize read range.
