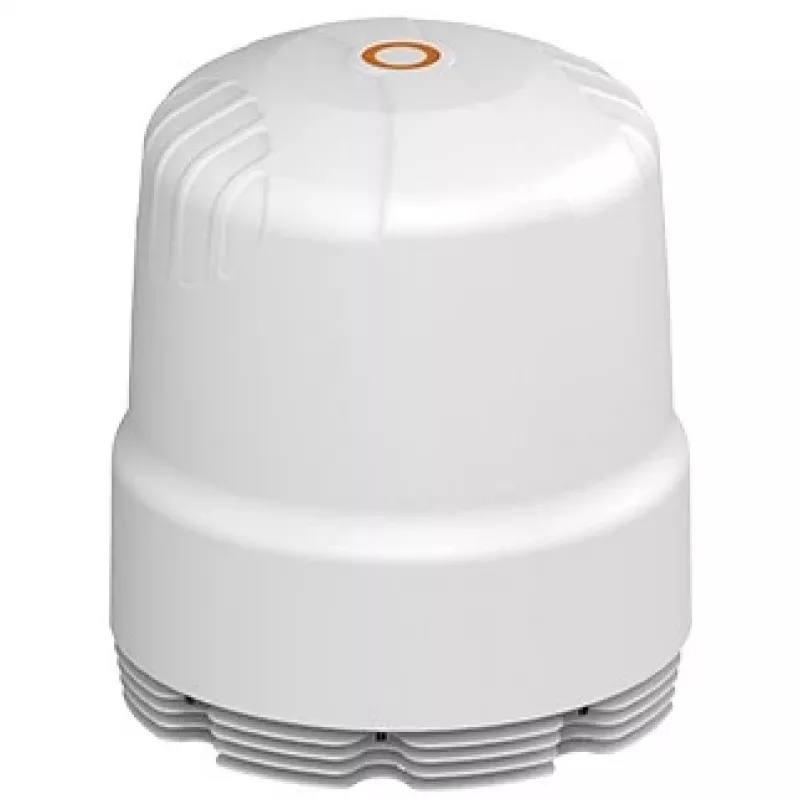

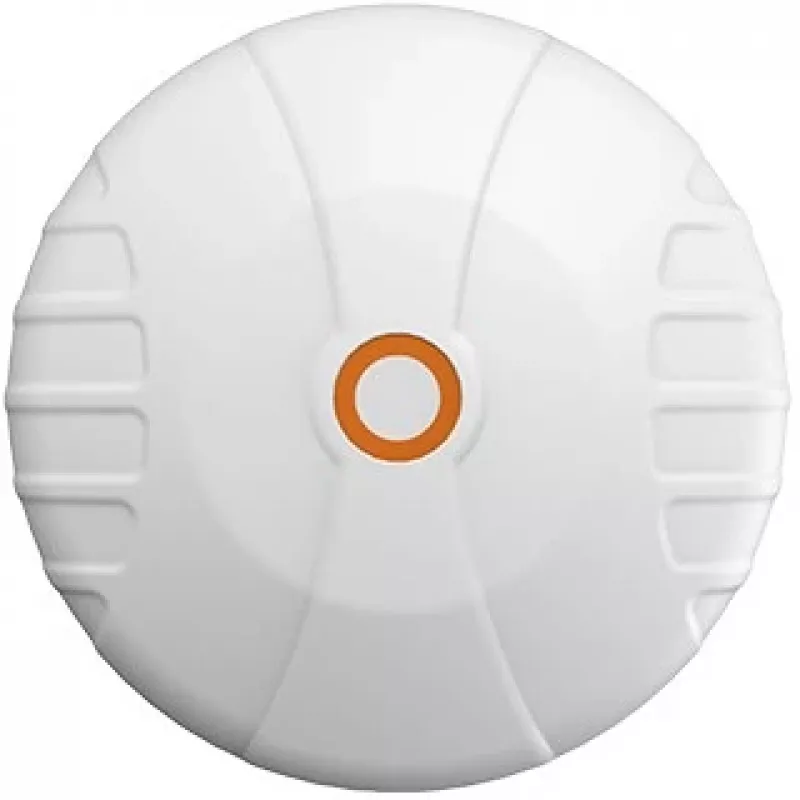

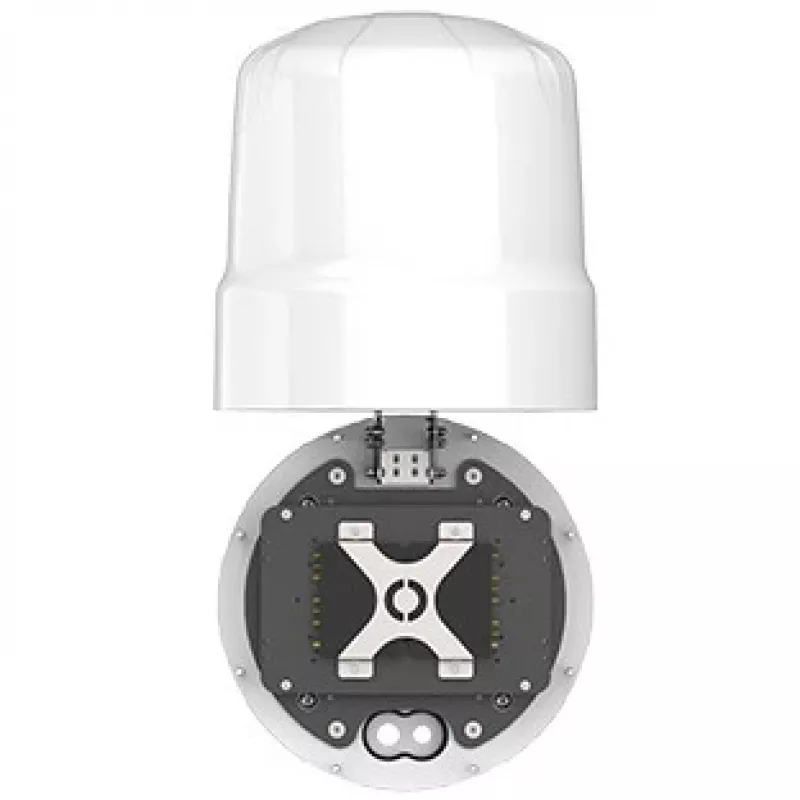

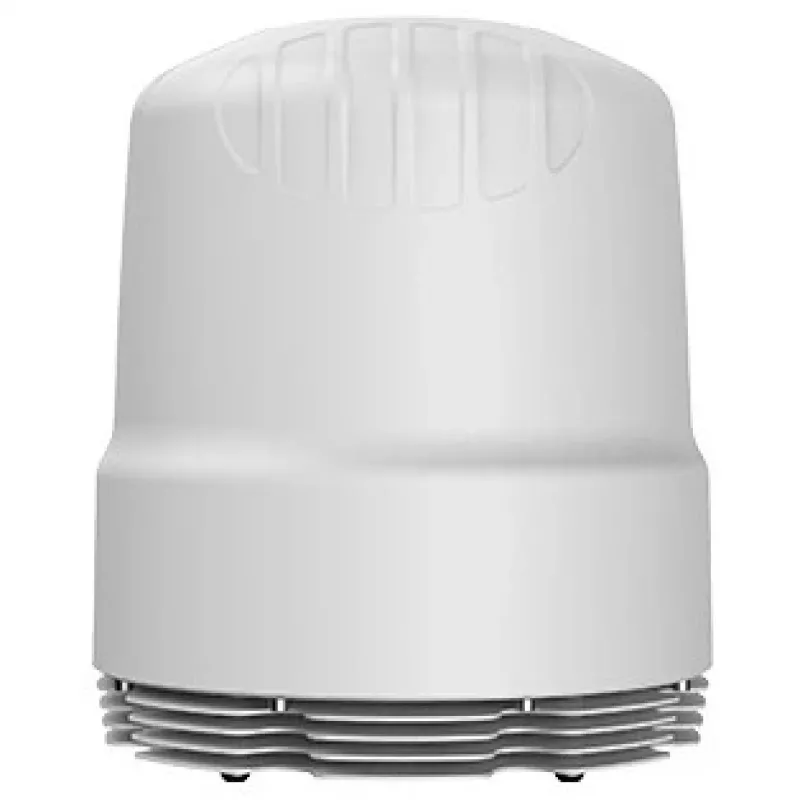

Antenas Poynting 5G/LTE Marine/Coastal A-RIPL-0016-V1-01 4x 4x4 MIMO LTE/5G 16x SMA (F) IP65

The Poynting RIPPLE-16 is a high-performance 4x4 MIMO antenna designed for marine and coastal applications, delivering robust 5G/LTE connectivity. With 16 antenna elements and omnidirectional coverage, it ensures reliable communication in harsh environments.

Advantages

This antenna offers exceptional gain across multiple frequency bands, supporting 4G LTE and 5G networks. Its rugged IP65-rated design withstands marine conditions, while the 16 SMA female connectors enable flexible MIMO configurations for enhanced data throughput.

Suitable for

• Marine vessels (yachts, commercial ships)
• Coastal installations
• Fixed wireless access (FWA) in remote areas

Key specifications

• Antenna Type: Omni-directional
• MIMO Configuration: 4x 4x4 MIMO (16 elements)
• Frequency Bands: 617-960 MHz, 1710-2700 MHz, 3400-4200 MHz, 4800-6000 MHz
• Max Peak Gain: 6 dBi (617-960 MHz), 9 dBi (1710-2700 MHz), 11 dBi (3400-4200 MHz), 11 dBi (4800-6000 MHz)
• Connectors: 16 x SMA (Female)
• Ingress Protection: IP65
• Polarization: Linear (Vertical)
• Input Impedance: 50 Ohm
• Max Input Power: 10 W
• VSWR: < 2.5:1
• Mounting: 1-inch 14 TPI Marine Mount, Pole Mount Bracket included
• Operating Temperature: -40°C to +70°C
• Wind Survivability: Up to 160 km/h
• Radome Material: UV Stable ASA
• Dimensions: Height 535 mm, Diameter 44.9 cm
• Weight: 20.3 kg

Recommendations

Ideal for demanding marine environments where reliable high-speed connectivity is critical. Pair with compatible 5G/LTE routers for optimal performance.
