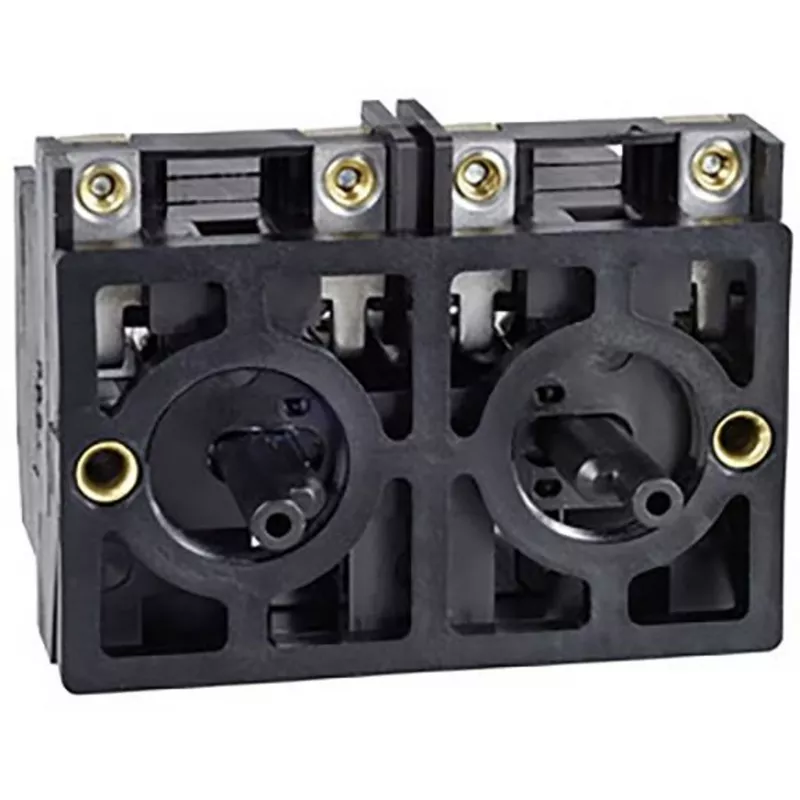

APC Schneider Electric Bloco de corrente principal XESD1291 - interruptor auxiliar para aparelhos de comando suspensos Harmony XAC, contactos 2 NO + 1 NC

The APC Schneider Electric Main Power Block XESD1291 is a high-quality auxiliary switch block designed for use with Harmony XAC pendant control stations. This component ensures reliable switching and control in industrial environments, featuring a robust design and compliance with international standards.

Advantages

This auxiliary contact block offers exceptional durability with 1,000,000 electrical and mechanical cycles, ensuring long-term performance. Its slow-break contact operation provides reliable switching, while the screw clamp terminals facilitate easy and secure wiring. The IP20 protection rating safeguards against solid objects, making it suitable for indoor industrial applications.

Suitable for

• Harmony XAC pendant control stations
• Industrial machinery control systems
• Automation and process control applications

Key specifications

• Product Type: Auxiliary Contact Block
• Range: Harmony XAC
• Contact Configuration: 2 NO + 1 NC
• Contact Operation: Slow-Break
• Rated Insulation Voltage (Ui): 500 V (degree of pollution 3) conforming to EN/IEC 60947-1
• Rated Operational Voltage: 240 V AC-15, 3 A; 250 V DC-13, 0.27 A
• Conventional Free Air Thermal Current (Ith): 10 A conforming to EN/IEC 60947-5-1
• Short-Circuit Protection: 10 A gG cartridge fuse conforming to EN/IEC 60947-5-1
• Mechanical Durability: 1,000,000 cycles
• Electrical Durability: 1,000,000 cycles (AC-15, DC-13)
• Connections - Terminals: Screw clamp terminals, 1 x 0.5...2.5 mm²; 2 x 0.5...2.5 mm²
• IP Degree of Protection: IP20 conforming to IEC 60529 (when mounted)
• Standards: EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
• Operating Temperature: -25…70 °C
• Storage Temperature: -40…70 °C

Recommendations

For optimal performance, ensure compatibility with Harmony XAC pendant control stations. Use appropriate fuses for short-circuit protection as specified. Install in a clean, dry environment to maintain IP20 protection.
