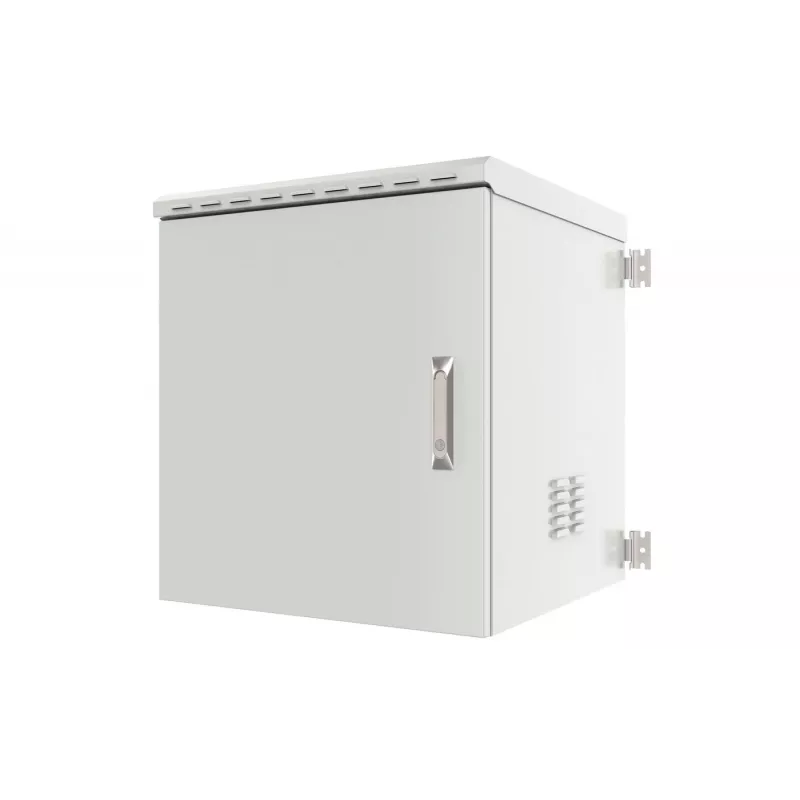

Armário de rack Lanview RWMIP66W012U66W 12U, IP66, branco, 32 kg

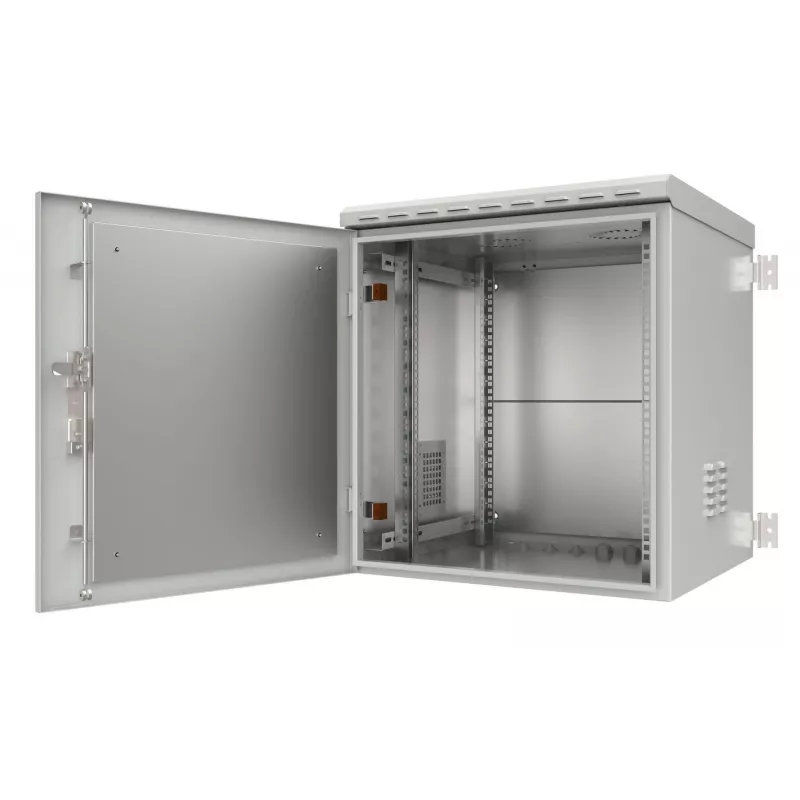

Lanview RWMIP66W012U66W is a 12U, IP66-rated rack cabinet designed to protect 19-inch network and server equipment in harsh or dust- and water-prone environments. The cabinet measures 600 x 600 x 640 mm (depth without the protruding roof is 400 mm) and is finished in white. It features a 4 mm antistatic tempered glass door with smoothed edges, an extruded aluminium frame and coloured side strips that provide a decorative appearance. The standard delivery includes one set of two device installation rails, and the cabinet supports both passive and optional active ventilation via an upper chassis ventilation opening.

Advantages

The cabinet offers IP66 protection for reliable dust and water resistance, making it suitable for outdoor or industrial installations. Its tempered, antistatic glass door with an aluminium frame ensures both visibility of the equipment and high fracture resistance. Adjustable device installation rails allow depth configuration of mounted devices, while 145 x 70 mm cable inlet openings at the top, bottom and rear provide three-directional cable access. An optional fan ventilation module (up to two fans) can be attached for active cooling; when no fans are fitted, the ventilation holes enable passive airflow. Movable rubber-edged cable entry with a 0–50 mm sliding compression system secures incoming cables and reduces dust ingress.

Suitable for

• Mounting 19-inch network switches, patch panels and small servers in industrial or outdoor locations
• Enclosures requiring IP66-level protection against dust and water
• Installations that need front access in wall-mounted setups and front/back access in free-standing setups

Key specifications

• Model: Lanview RWMIP66W012U66W
• Rack units: 12U
• Protection rating: IP66
• External dimensions: 600 x 600 x 640 mm (depth without roof 400 mm)
• Door: 4 mm antistatic tempered glass with extruded aluminium frame
• Weight: 32 kg
• Cable entry: 145 x 70 mm openings at top, bottom and rear; rubber-edged movable cable entry 0–50 mm with sliding compression
• Ventilation: passive via chassis openings; optional active ventilation with up to two fans (module sold separately)

How to use

Choose wall-mounted or free-standing installation. For wall mounting, access to installed equipment is provided from the front only because side doors are fixed. For free-standing installations, you can access the cabinet from both front and rear. Fit devices onto the preinstalled installation rails and adjust their depth as required. Run cabling through the 145 x 70 mm entry points at top, bottom or rear and secure cables using the rubber-edged movable cable entry module; adjust the sliding compression to compress and seal cables within the 0–50 mm range. If additional active cooling is needed, attach the optional fan module (supports up to two fans) to the ventilation hole on the cabinet’s upper chassis.

Recommendations

Install the cabinet on a stable surface or securely fasten it to the wall; when used free-standing, consider optional pinion feet or caster group for stability and mobility. Use the rubber-edged cable entry correctly tightened to maintain IP66 protection. If deploying in high-temperature environments, fit the optional fan module and monitor airflow to prevent overheating.
