Arrefecedor de chipset Akasa AK-210-BK 4 cm preto

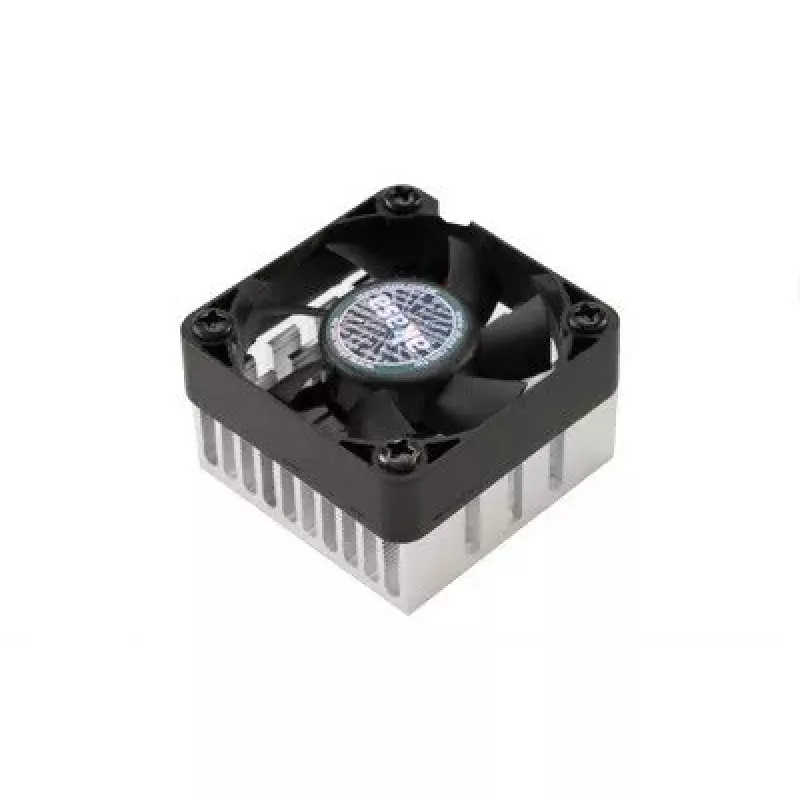

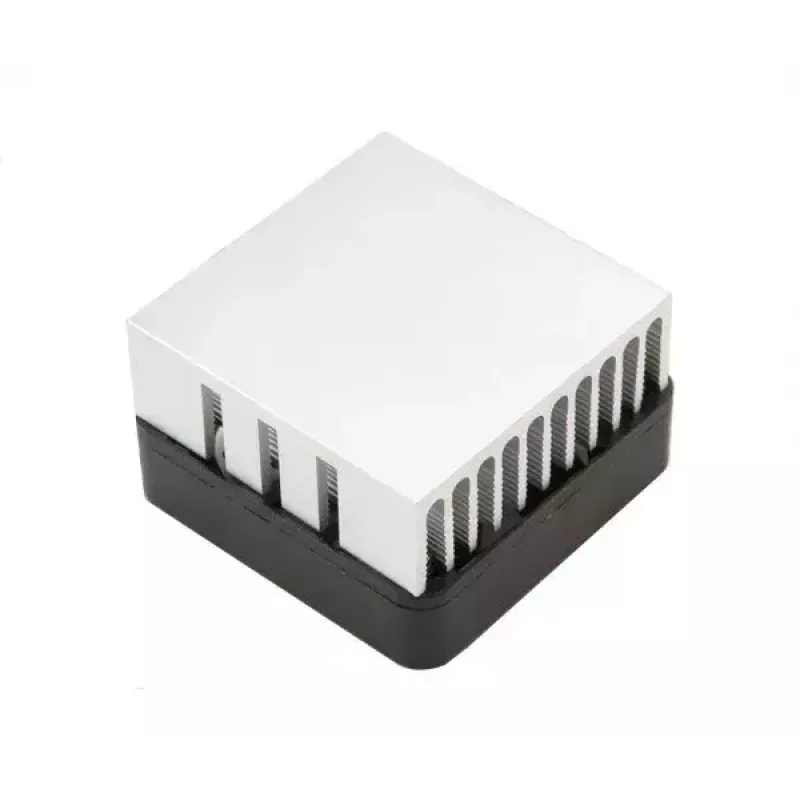

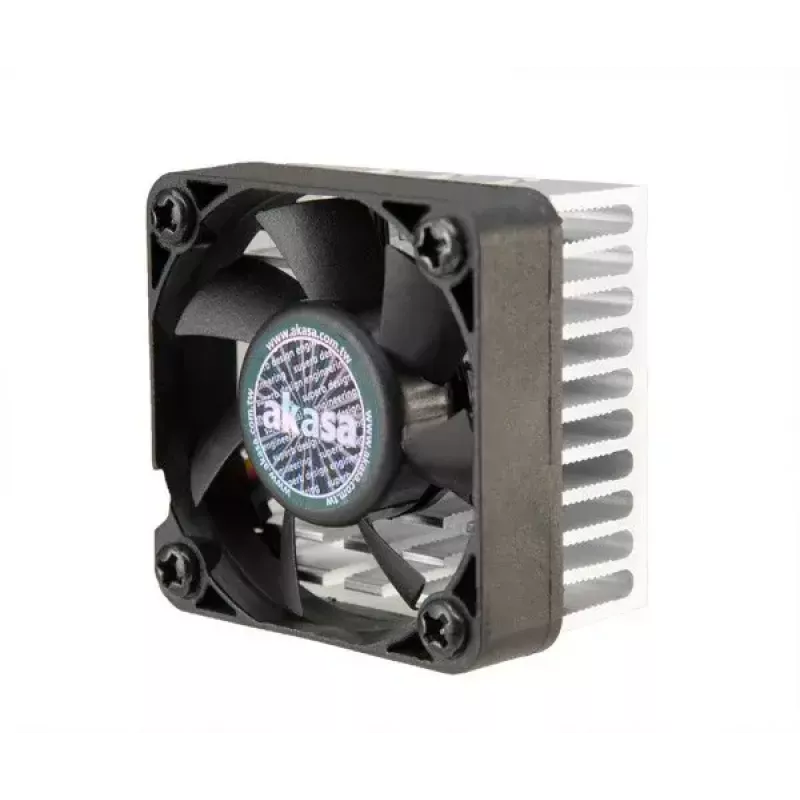

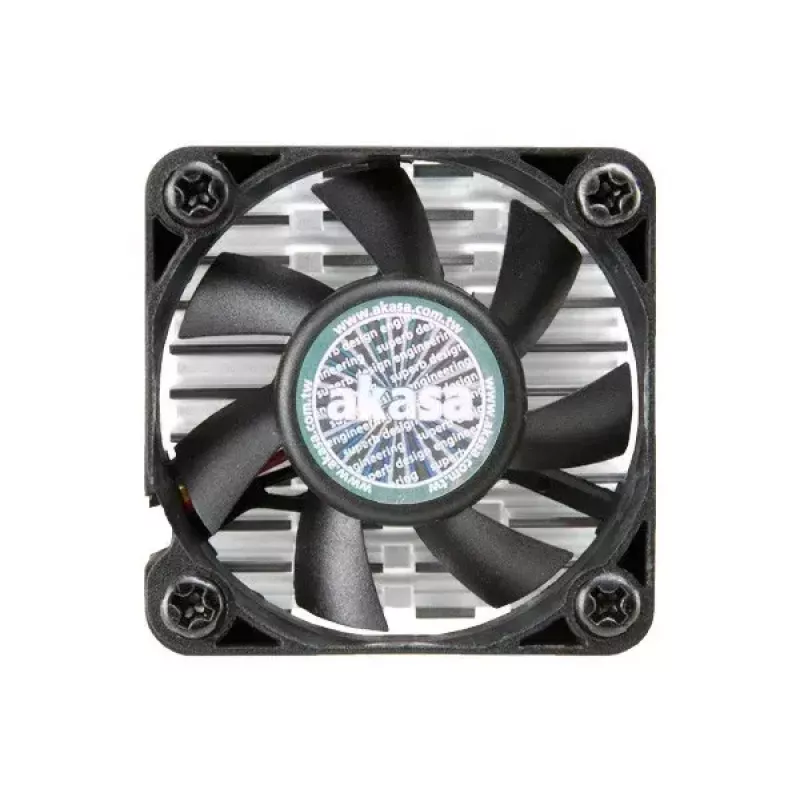

Black and grey chipset cooler with a compact 4 cm fan and aluminium heatsink designed for cooling small motherboard chipsets in tight spaces. The Akasa AK-210-BK combines a low-noise sleeve-bearing fan with a thermally conductive adhesive transfer tape for simple installation. Its dimensions (38 mm x 38 mm x 13 mm) and 12 V rating make it suitable for compact PC builds and systems with limited clearance.

Advantages

The cooler offers a small footprint while delivering up to 5000 RPM and an airflow of 8.66 m³/h, providing sufficient airflow for chipset heat dissipation. The aluminium heatsink improves thermal transfer, the sleeve bearing provides reliable operation, and the included thermally conductive adhesive tape simplifies mounting without additional hardware.

Suitable for

• Small form factor (SFF) PCs and mini-ITX builds
• Cooling motherboard chipsets and southbridges
• Systems with limited clearance where larger coolers don’t fit

Key specifications

• Model: Akasa AK-210-BK
• Fan size: 38 x 38 x 13 mm (4 cm)
• Maximum speed: 5000 RPM
• Airflow: 8.66 m³/h
• Maximum air pressure: 3.28 mmH2O
• Bearing type: Sleeve bearing
• Rated voltage: 12 V
• Colour: Black / grey

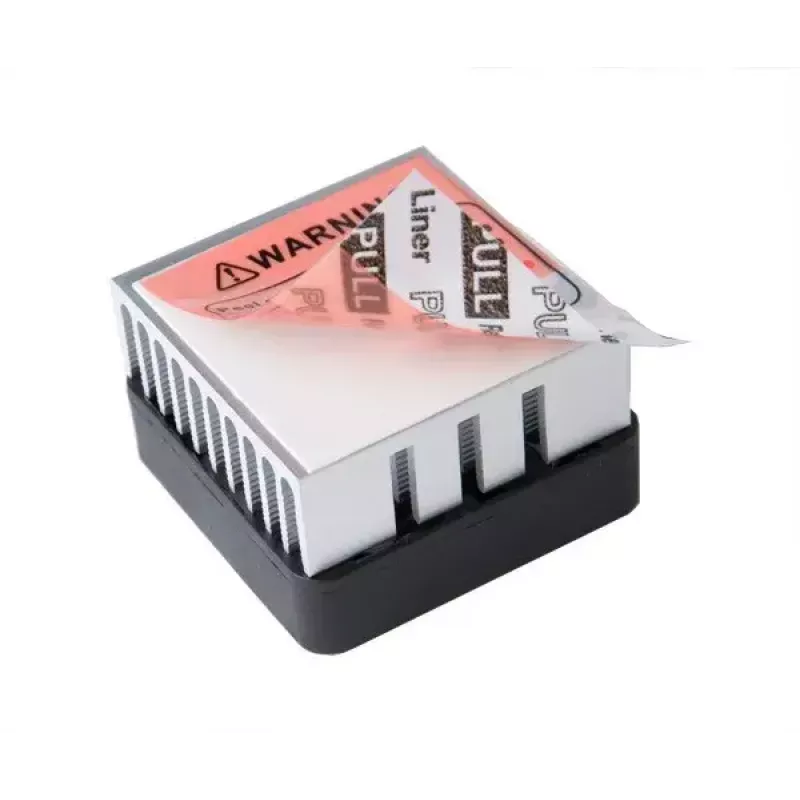

• Mounting: Thermally conductive adhesive transfer tape
• MPN: AK-210-BK, EAN: 4710614539228

How to use

Clean the chipset surface thoroughly to remove dust and old thermal residues. Peel the protective film from the thermally conductive adhesive transfer tape and place the cooler on the chipset, aligning it centrally. Press firmly to ensure full contact between the aluminium heatsink and the chipset. Connect the fan to a 12 V header on the motherboard or an appropriate power source, then verify fan rotation and airflow.

Recommendations

Use in environments with adequate case ventilation to assist the small fan’s airflow; ensure the adhesive tape has good contact and avoid repositioning after mounting to maintain adhesion and thermal performance.
