Arrefecedor de CPU Cooler Master X Dream i117

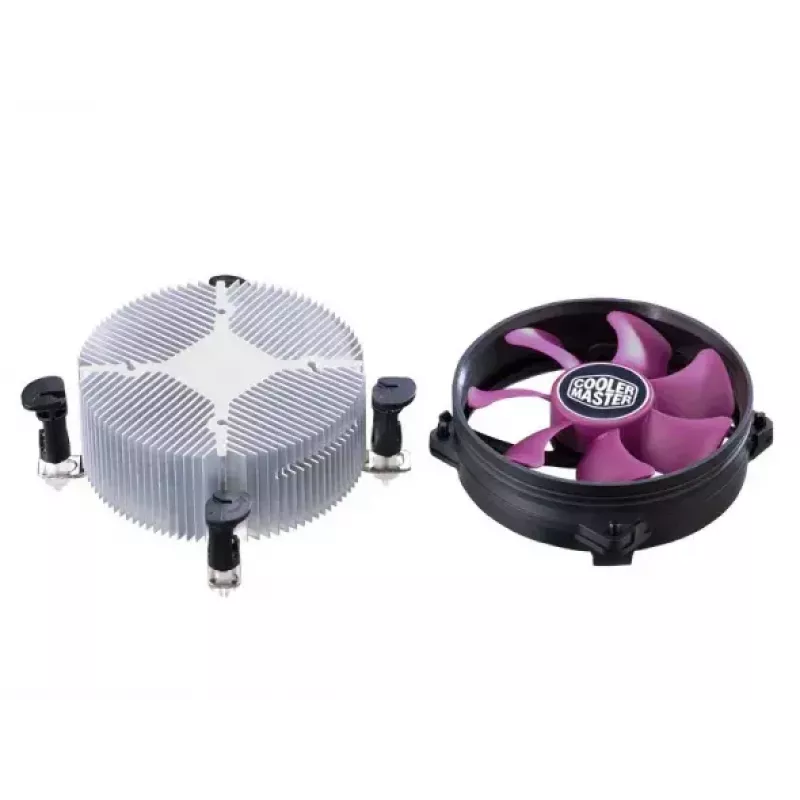

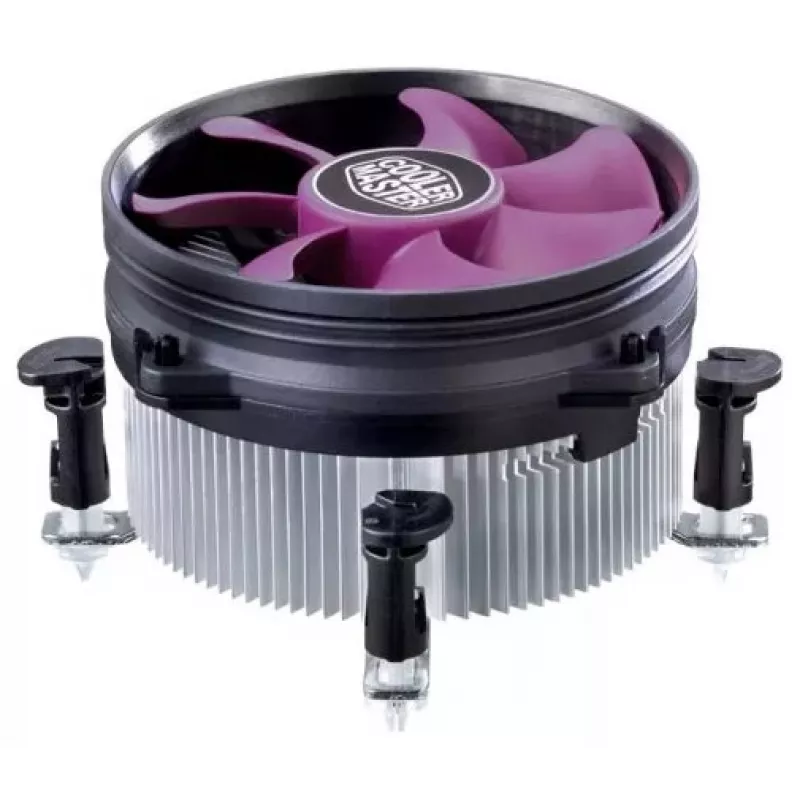

The Cooler Master X Dream i117 is a low-profile aluminium CPU cooler designed for Intel platforms. With a total height of around 60 mm and a 95 mm circular fan, it combines compact dimensions and a cross-shaped fin layout to centralize airflow and improve heat dissipation while maintaining quiet operation. The unit is finished in aluminium with violet accents and uses a 12 V fan that spins from about 1800 RPM to provide steady cooling and a minimum static pressure of 1.55 mmH2O.

Advantages

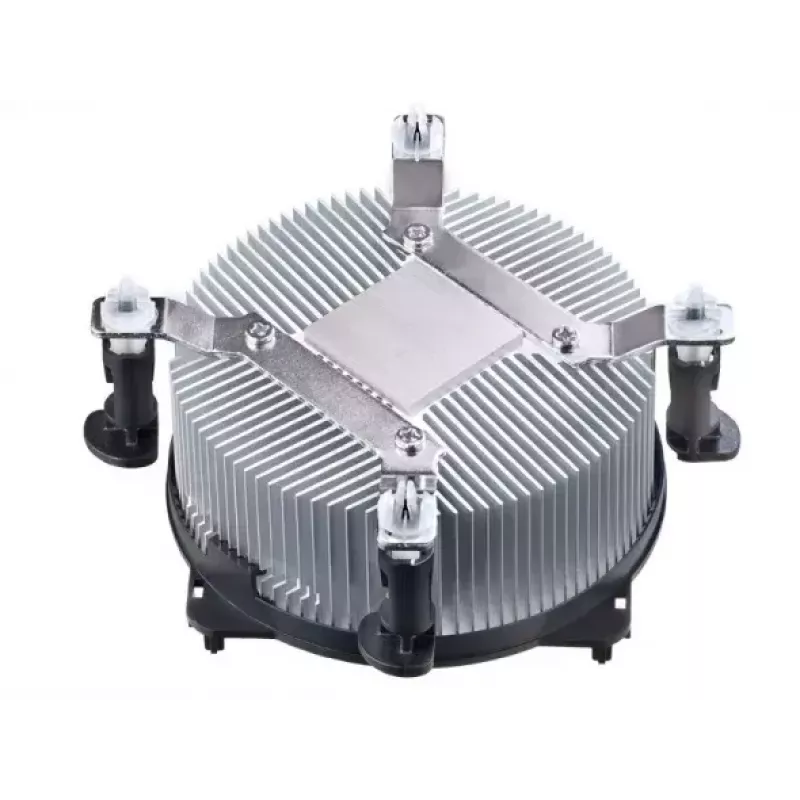

The X Dream i117 offers a slim form factor suitable for small or compact PC builds and low-profile cases. Its cross-shaped aluminium extrusion fins concentrate airflow through the heatsink for effective heat transfer, and the push-pin mounting simplifies installation on supported Intel sockets. The fan is engineered for silent operation at approximately 19 dBA, making it appropriate for quiet working environments.

Suitable for

• Small form factor and compact desktop builds
• Systems requiring a low-profile cooler (≈60 mm height)
• Quiet office or home PCs where low noise is important
• Intel-based motherboards using compatible LGA sockets

Key specifications

• Type: Cooler
• Fan diameter: 95 mm
• Height: ~60.4 mm
• Dimensions (W×D): 112.2 × 112.2 mm
• Fan speed (min): 1800 RPM
• Air pressure (min): 1.55 mmH2O
• Noise level: ~19 dBA
• Voltage: 12 V
• Weight: 0.37 kg
• Colour: Aluminium, Violet

How to use

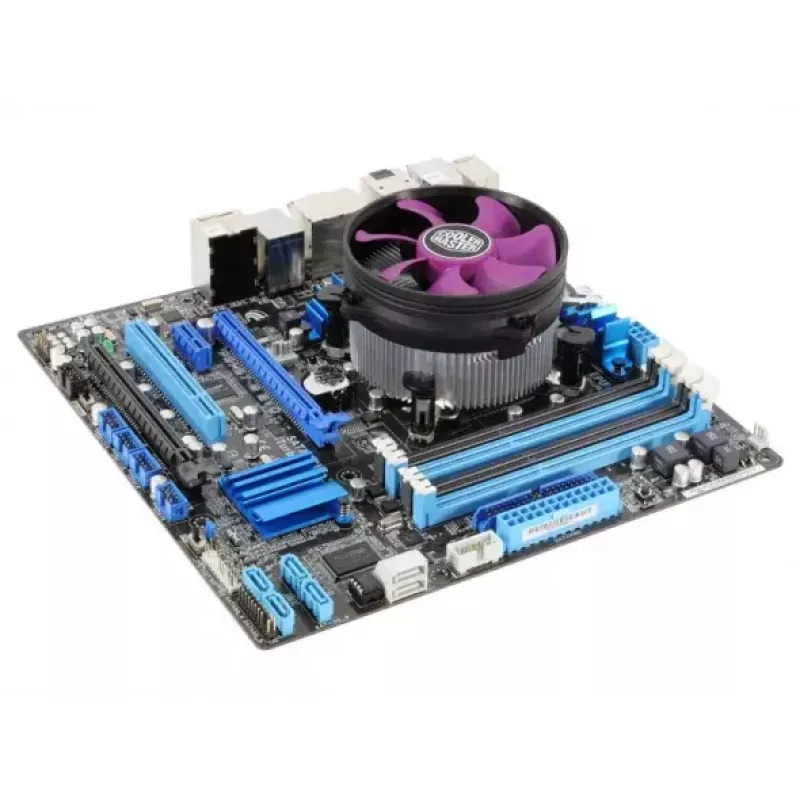

Install the X Dream i117 onto a compatible Intel socket following the motherboard and cooler instructions: align the cooler over the CPU, press the push-pins into the corresponding holes on the motherboard until they click, and verify secure seating. Connect the fan header to a 4-pin or 3-pin CPU fan connector on the motherboard and confirm the fan spins during system power-up. Ensure there is adequate clearance in the case given the cooler's ~60 mm height and that surrounding components do not obstruct airflow.

Recommendations

For optimal results, use this low-profile cooler in systems with moderate CPU heat output and ensure good case ventilation. Regularly clean dust from the fan and fins to maintain cooling performance; check compatibility with your exact Intel socket model before purchase.
