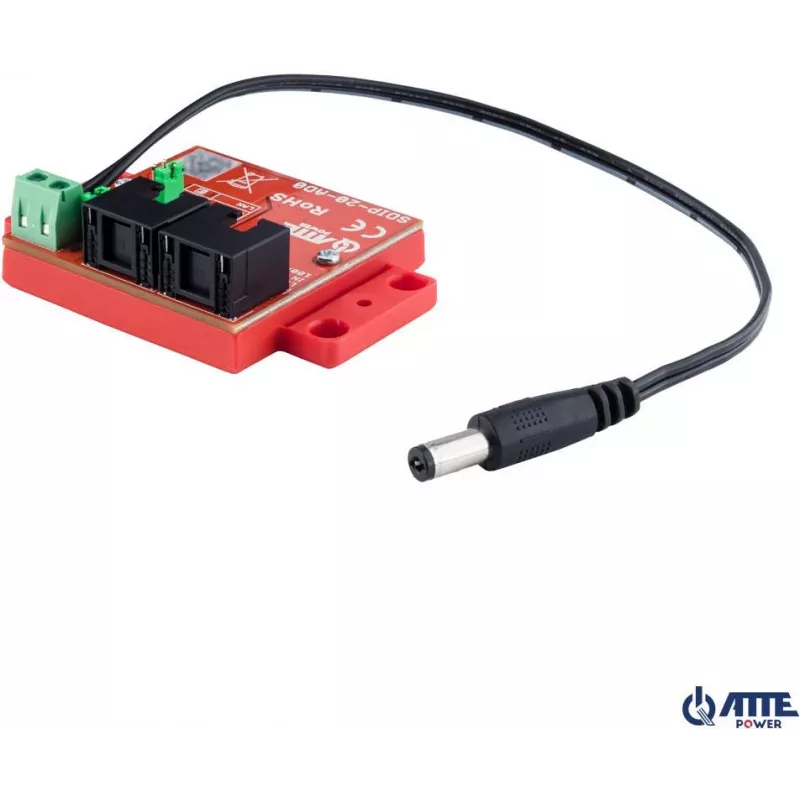

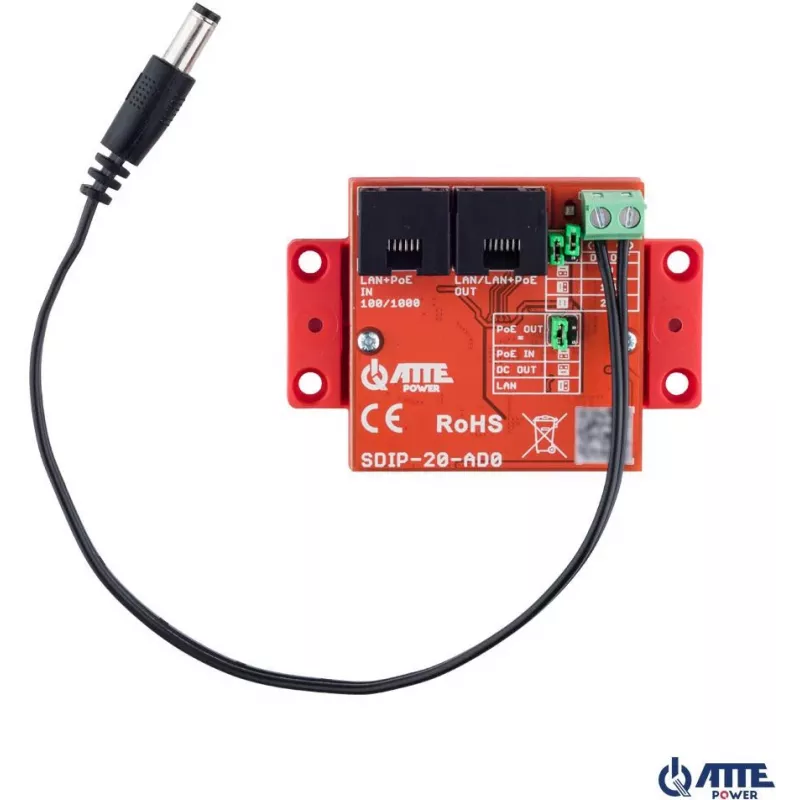

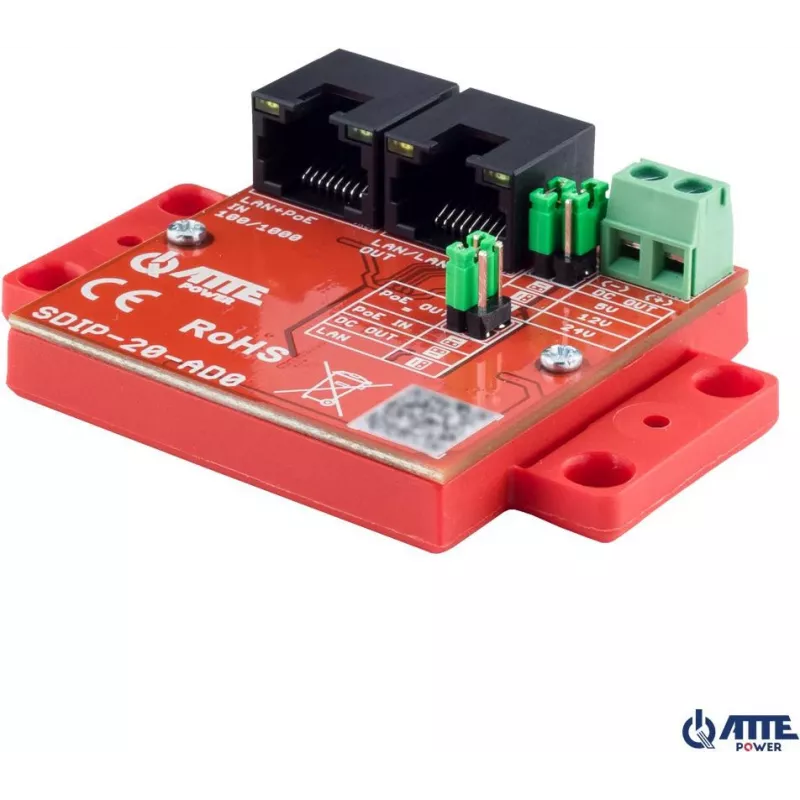

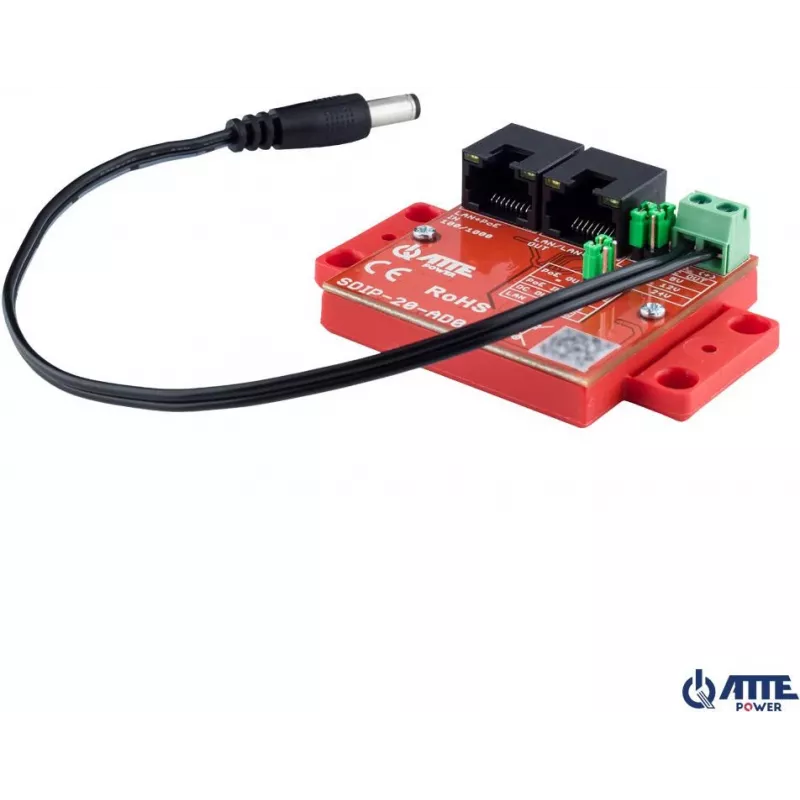

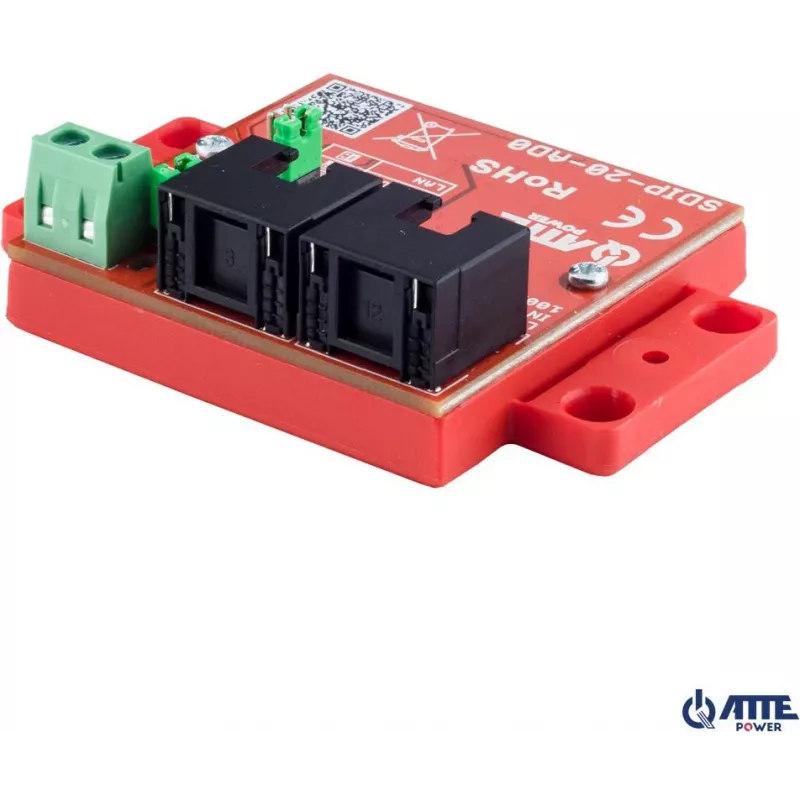

ATTE SDIP-20-AD0 Adaptador PoE Step-Down 20W 12V para calha DIN

The ATTE SDIP-20-AD0 is a high-performance PoE step-down adapter designed to convert Power over Ethernet (PoE) input into a stable 12V DC output. Compliant with IEEE 802.3af/at and Passive PoE standards, this adapter delivers up to 20W of power, making it ideal for powering low-voltage devices such as IP cameras, access points, and IoT equipment. Its compact DIN rail mountable design ensures easy installation in industrial or network cabinets.

Advantages

This adapter offers galvanic isolation for enhanced safety, supports Gigabit Ethernet data pass-through, and includes protection against short-circuit, overload, and overvoltage. With an efficiency greater than 85% and a wide operating temperature range from -25°C to 65°C, it ensures reliable performance in demanding environments.

Suitable for

• IP cameras and video surveillance systems
• Wireless access points and routers
• IoT and automation devices requiring 12V DC power
• Industrial networking equipment

Key specifications

• Input Voltage: 24-56V DC (PoE)
• Output Voltage: 12V DC
• Max Output Power: 20W
• Max Output Current: 1.6A
• PoE Standard: IEEE 802.3af/at, Passive PoE
• Data Speed: 10/100/1000 Mbps (Gigabit Ethernet)
• Connectors: 1x RJ45 PoE IN, 1x RJ45 Data OUT, Screw Terminal Block for power output
• Mounting: DIN Rail mountable (clip included)
• Housing Material: Plastic
• LED Indicator: Power/Status
• Protection: Short-circuit, Overload, Overvoltage
• Operating Temperature: -25°C to 65°C
• Efficiency: >85%

Recommendations

For optimal performance, use with a PoE switch or injector that supports IEEE 802.3af/at. Ensure the total power consumption of connected devices does not exceed 20W. The adapter is not waterproof; install in a dry indoor environment or protected enclosure.
