Base de volante PXN VD10 CS — volante de gaming para PC e consolas, suporte Force Feedback

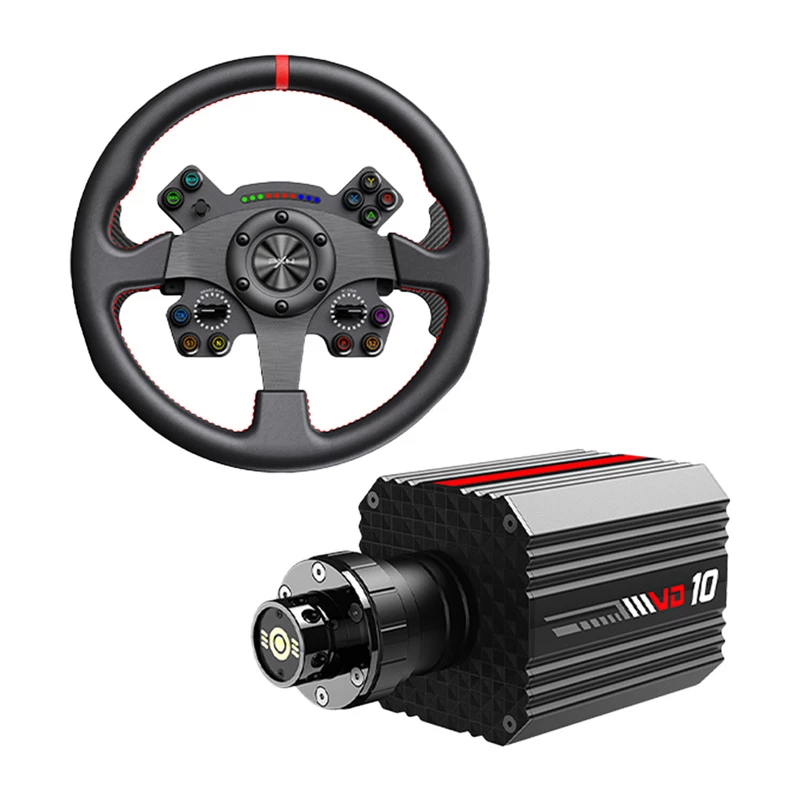

PXN VD10 CS base steering wheel

The PXN VD10 CS is a Direct Drive racing wheel featuring a proprietary servo motor with 10 Nm of torque, a precision 24-bit encoder and advanced cooling. With a combination of high power, low latency and full compatibility with popular PC simulators, this model offers a realistic and stable driving experience. It is an option for gamers who expect solid performance and high configurability while maintaining intuitive operation.

Power, precision and instant response

At the heart of the VD10 CS is a proprietary PXN racing motor, based on a 20-pole DD servo motor. With precise control of the magnetic field to within ±0.001 mm, the base achieves as much as 50% faster response time and 95% higher energy efficiency. In practice, this means a dynamic but stable transmission of forces to the steering wheel - without lag or unnecessary power loss. A constant torque of 10Nm provides intense and realistic force feedback, allowing the driver to immediately sense differences in the road surface or vehicle dynamics.

No worries about overheating even at maximum load

Thanks to an intelligent cooling system with an aluminum chassis and active temperature control, the base maintains optimal operating conditions even during multi-hour sessions. Tests have shown that the operating temperature of the VD10 CS is 30°C lower than that of older models, which significantly affects the service life and stability of operation.

Maximum control accuracy and smoothness

The integrated 24-bit magnetic encoder generates as many as 46,603 pulses per degree of rotation, with a delay of less than 1 ms. As a result, every steering wheel adjustment is instantly read and reproduced in the game. The whole thing is supported by a control chip that ensures smooth and natural responses from the system.

Authentic track experience

The VD10 CS is distinguished by realistic multi-level force feedback. Small changes in the road surface, slips or differences in grip can be felt. The proprietary PXN Sense+ algorithm uses native game data, analyzing vehicle dynamics, pavement and telemetry to make the steering wheel react in the most natural way possible - without the need for additional configuration.

Ready for your favorite games

The PXN VD10 CS works with popular PC racing titles such as Assetto Corsa, Forza Horizon 5, DiRT Rally 2.0 and Le Mans Ultimate. Installation and setup are simplified thanks to PXN SimRacing software, which allows you to quickly adjust gas, brake and clutch settings, as well as use ready-made presets tailored to specific games.

A steering wheel that gives you full control

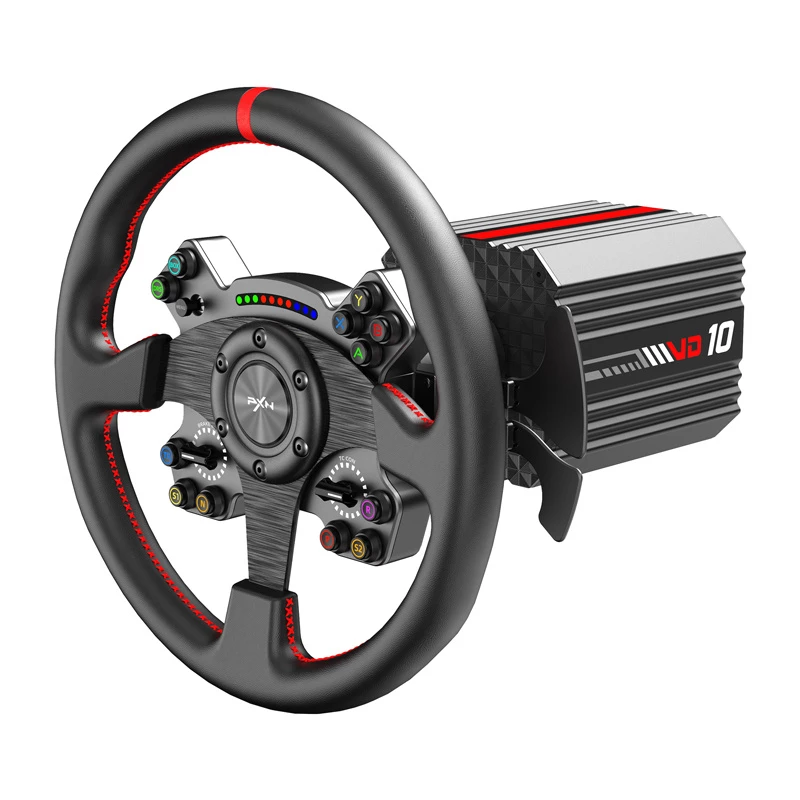

It comes with a 330mm diameter steering wheel, finished in durable synthetic microfiber leather. Its shape and design ensure a firm grip and comfort even during long sessions. Two 20-degree rotary encoders with pushbutton function, 13 programmable buttons (12 of which support backlighting) and 10 customizable LEDs allow personalization and quick access to key functions.

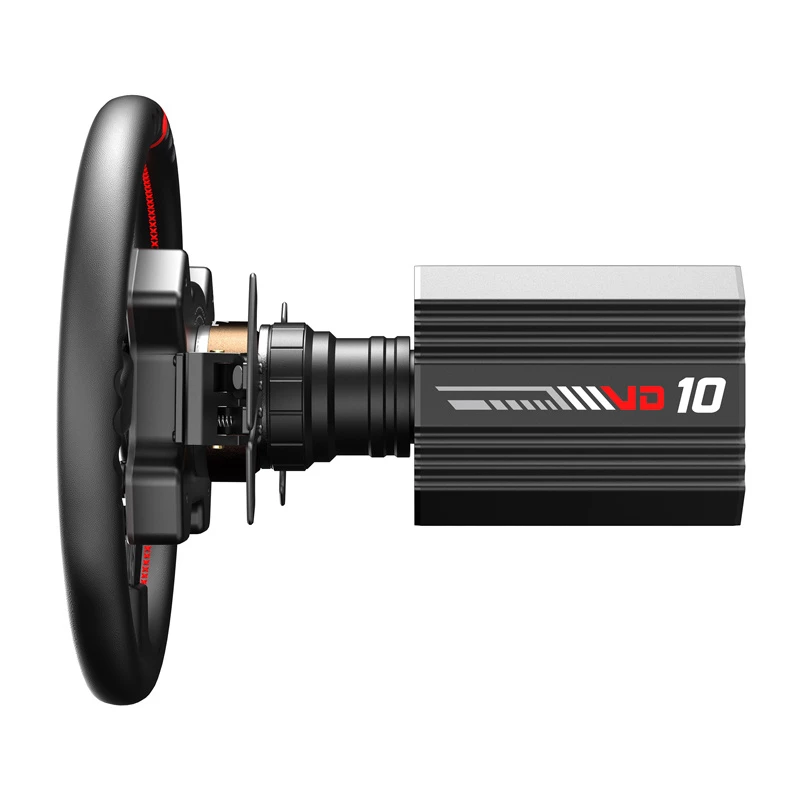

Robust construction and quick steering wheel replacement

The aerospace-grade carbon fiber shift paddles used work with Hall technology - they are responsive, lightweight and quick to respond, resulting in precise gear shifts without delay. The Class 6 aluminum Quick Release system allows for instant disconnection and connection of the handlebars, supporting a PCD diameter of 70mm. An integrated aerospace-grade conductive ring ensures stable power supply and uninterrupted signal transmission - even under high torque loads.

Included

• WCS R2 steering wheel
• USB-C to USB-A cable
• Allen wrench
• black silicone pads x4
• VD10 base
• power adapter
• user manual
• accessory kit

How to use

Mount the VD10 base to a compatible rig and attach the WCS R2 wheel via the Class 6 Quick Release (PCD 70 mm). Connect the base to a PC using the supplied USB and power the unit with the included adapter. Install PXN SimRacing software to load presets or adjust force feedback, pedal and clutch mappings. Use the rotary encoders, programmable buttons and LEDs on the wheel to configure controls in‑game. For best results, run a short calibration in the game or software before starting a session.

Recommendations

Use the VD10 CS on a stable rig or cockpit and ensure good ventilation around the base to maintain optimal cooling. Keep the firmware and PXN SimRacing software up to date for compatibility with new titles. For prolonged sessions, monitor ambient temperature and allow brief breaks to prevent unnecessary thermal stress.
