Base para rack DIGITUS DN-19 PLINTH-8/12-NB para armários de rede e servidores 800×1200 mm preto

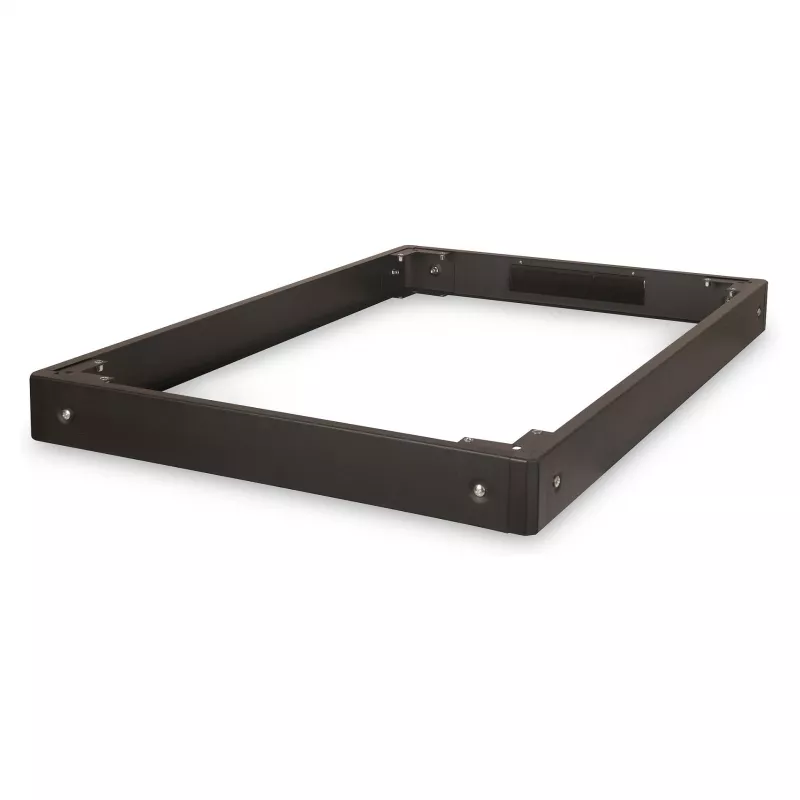

The DIGITUS 483 mm (19") plinth DN-19 PLINTH-8/12-NB is a base element for network and server cabinets sized 800×1200 mm (W×D). Designed for the Unique Series and Dynamic Basic Series, it raises the cabinet floor clearance by 100 mm to provide additional space for cable storage and routing. The plinth is made to German standards, delivered unassembled and finished in black.

Advantages

The plinth increases under-cabinet clearance and creates a dedicated area for cable storage and management without modifying the cabinet. It features a rear brush cable entry to enable tidy cable routing, removable side panels for easier access during installation, and a robust steel construction that supports typical cabinet loads.

Suitable for

• Network cabinets from the DIGITUS Unique Series
• Server cabinets from the DIGITUS Dynamic Basic Series
• Installations requiring additional floor clearance for cables or ventilation

Key specifications

• Compatible footprint: 800 × 1200 mm (W × D)
• Raises cabinet floor clearance by 100 mm (stackable up to 200 mm)
• Rear brush cable entry opening size: 300 × 60 mm
• Material: steel sheet with 1.5–2.0 mm thickness
• Removable side panels for access
• Color: black
• Delivered unassembled

How to use

Place the plinth underneath a compatible DIGITUS 483 mm (19") cabinet and secure it according to the cabinet manufacturer’s assembly instructions. Use the removable side panels to access the interior during installation. Route cables through the rear brush cable entry to keep cables organized and reduce dust ingress. If greater clearance is needed, stack a second plinth to reach a total of 200 mm.

Recommendations

Install the plinth on a level surface and follow the cabinet’s load and grounding instructions. Use the brush cable entry for bundled cable runs and avoid sharp bends near the brush to prevent cable damage.
