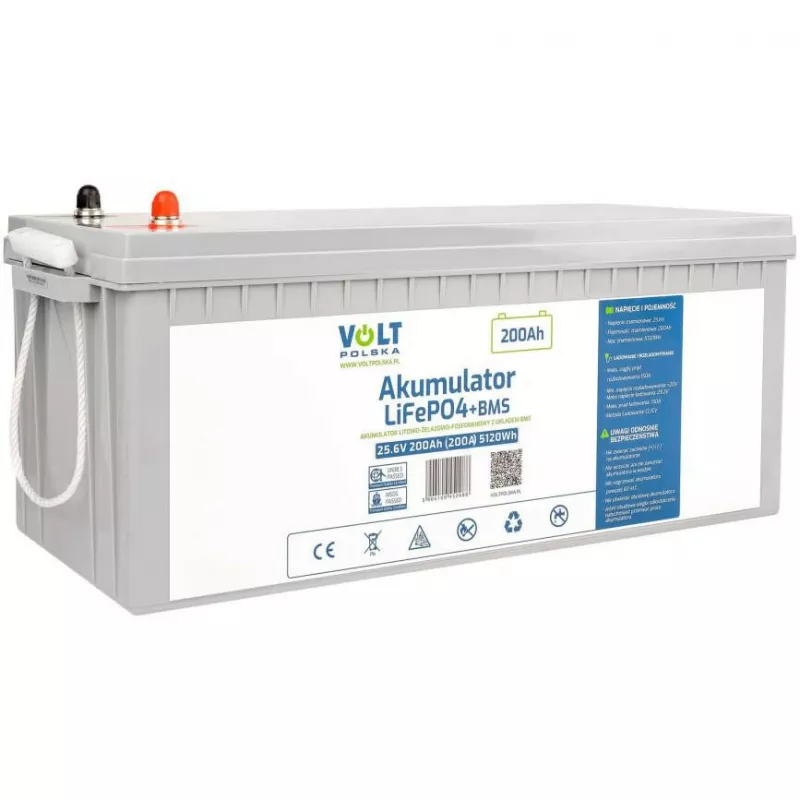

Bateria LiFePO4 VOLT POLSKA 25,6V 200Ah (150A)

The VOLT POLSKA LiFePO4 Battery 25.6V 200Ah (150A) is a high-performance lithium iron phosphate battery designed for demanding energy storage applications. With a nominal voltage of 25.6V and a capacity of 200Ah, it delivers 5.12 kWh of reliable power. Its robust BMS ensures safe operation, while the high discharge current capability makes it suitable for powering inverters, electric vehicles, and solar systems.

Advantages

This battery offers over 6000 cycles at 80% depth of discharge, providing a long service life. It features a built-in Battery Management System (BMS) that protects against overcharge, over-discharge, over-current, short-circuit, and over-temperature. The low self-discharge rate (<3% per month) ensures minimal energy loss during storage. With M8 threaded terminals, installation is straightforward and secure.

Suitable for

• Solar energy storage systems
• Off-grid and backup power
• Electric vehicles (golf carts, boats, RVs)
• Telecommunication and UPS systems

Key specifications

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 25.6V
• Nominal Capacity: 200Ah
• Energy Capacity: 5.12 kWh
• Max Continuous Discharge Current: 150A
• Max Peak Discharge Current: 300A (3-5 sec)
• Max Continuous Charge Current: 100A
• Recommended Charge Voltage: 28.8V (±0.2V)
• Discharge Cut-off Voltage: 20.0V
• Cycle Life: >6000 cycles @ 80% DOD
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): 0°C to 45°C
• Self-Discharge Rate: <3% per month
• Internal Resistance: <0.5 mΩ
• Terminal Type: M8 Threaded Terminals
• Built-in BMS: Yes
• BMS Protection: Overcharge, Over-discharge, Over-current, Short-circuit, Over-temperature
• Cell Configuration: 8S (8 series cells)
• Parallel Connection Capability: Up to 4 units

Recommendations

For optimal performance, use a compatible LiFePO4 charger with the recommended charge voltage. Do not connect batteries in series. Ensure proper ventilation during operation. Store in a cool, dry place.
