BDS Broca de coroa HM D25/35mm Quick In (HKK-F025) - broca anular com pastilhas de carboneto de tungsténio

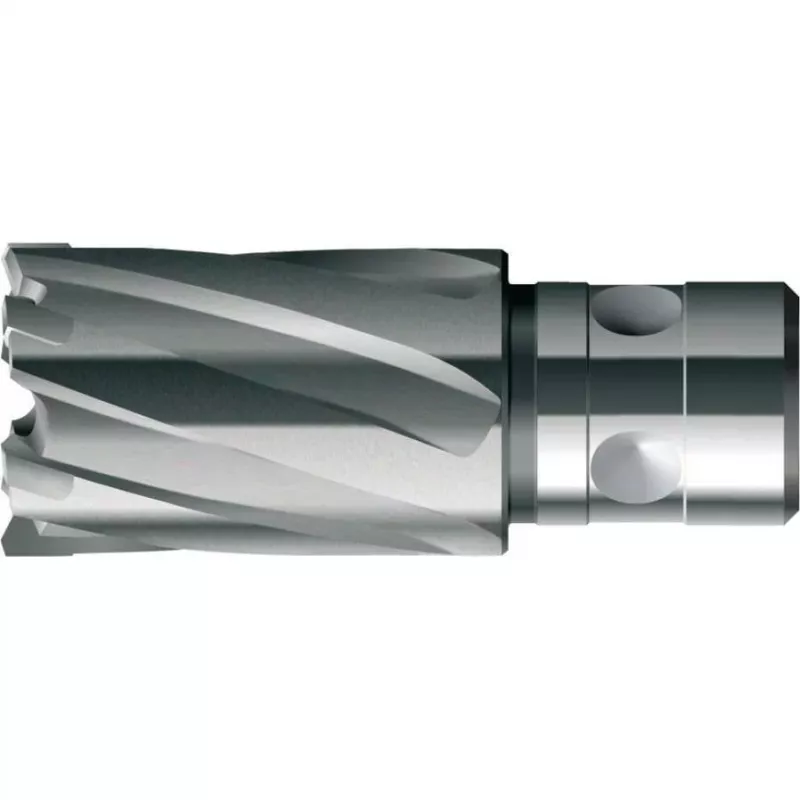

This BDS HM core drill stands out from typical twist drills by removing only a ring of material, leaving a solid slug that ejects cleanly. The result is a faster, smoother hole with far less power draw on your magnetic drilling machine. With a 25 mm cutting diameter and 35 mm depth, it is built for serious metalworking tasks where precision and repeatability matter.

Highlights

• Tungsten carbide tipped (TCT) cutting edges for exceptional wear resistance
• Quick-In shank for fast, tool-free bit changes on compatible BDS machines
• Three cutting edges distribute load evenly, reducing vibration and improving hole quality
• Optimized for steel, stainless steel, cast iron, and non-ferrous metals
• Hollow design allows efficient chip evacuation and internal cooling

In daily use

On the shop floor, this core drill delivers clean, burr-free holes in a single pass. The Quick-In system means you can swap between sizes in seconds without wrenches or collets. Because the carbide tips stay sharp longer than HSS, you spend less time replacing bits and more time drilling. The 35 mm depth is ideal for plates, beams, and profiles up to that thickness.

Full specifications

• Drill type: Annular cutter (core drill)
• Cutting material: Tungsten carbide tipped (TCT / HM)
• Cutting diameter: 25 mm
• Cutting depth: 35 mm
• Shank type: Quick-In
• Number of cutting edges: 3
• Recommended materials: Steel, stainless steel, cast iron, non-ferrous metals
• Series: HKK-F
• Compatibility: BDS magnetic drilling machines with Quick-In holder
• Application: Hole drilling in metal
• Design: Hollow drill bit for efficient chip removal
• Precision: High concentricity for accurate holes
• Durability: High wear resistance due to carbide tips
• Cooling: Suitable for internal cooling systems

Final note

For professionals who demand clean holes and long tool life, the BDS HKK-F025 core drill is a reliable choice. Its carbide construction and Quick-In convenience make it a valuable addition to any metalworking setup.
