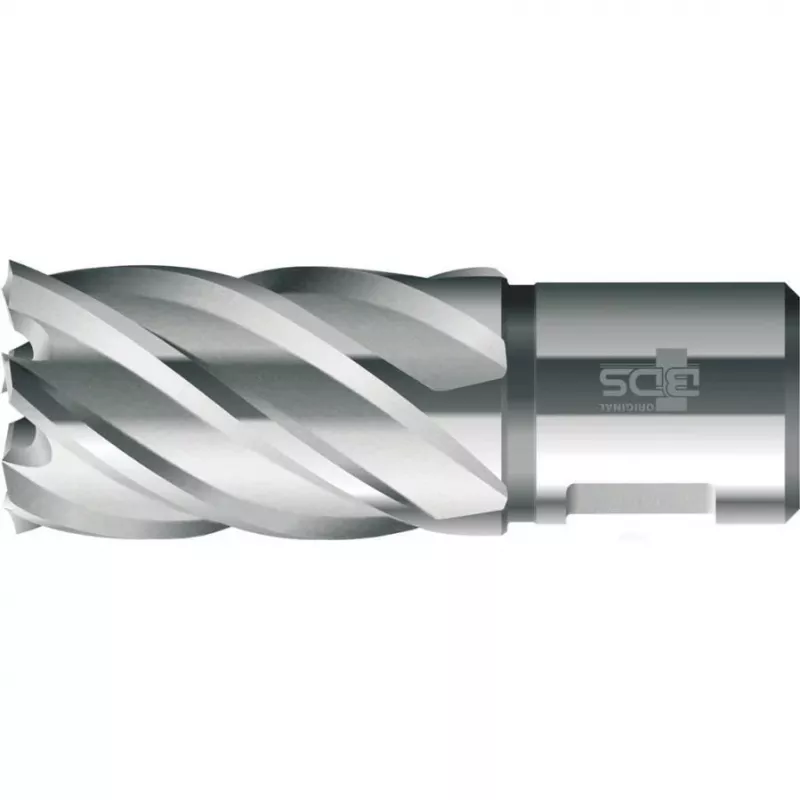

BDS broca de núcleo HSS padrão 13,0 mm diâmetro de corte, 30 mm profundidade de corte, haste Weldon (KBK-013)

Drilling large-diameter holes in steel often requires a heavy twist drill and a lot of power. This BDS annular cutter removes only a ring of material, leaving a solid slug, so you need less force and get a cleaner hole faster.

Who is it for

Metalworking professionals and serious DIYers who use magnetic drilling machines and need precise, repeatable holes in structural steel, cast iron, or non-ferrous metals.

Main features

• High-speed steel (HSS) body for durability and heat resistance.
• Weldon shank with 19.05 mm (3/4 inch) diameter for secure mounting in magnetic drill arbors.
• Two-flute design for efficient chip evacuation.
• Precision ground cutting edges for clean hole finish.
• Bright, uncoated surface that allows easy resharpening.

Specifications

• Product type: Annular cutter
• Material: High-speed steel (HSS)
• Cutting diameter: 13.0 mm
• Cutting depth: 30 mm
• Shank type: Weldon
• Shank diameter: 19.05 mm (3/4 inch)
• Series: Standard
• Application suitability: Steel, structural steel, cast iron, non-ferrous metals
• Compatible machine type: Magnetic drilling machines
• Core pin compatibility: Requires pilot pin
• Flute count: 2
• Surface treatment: Bright (uncoated)
• Manufacturing process: Precision ground
• Recommended cooling: External (cutting fluid)
• Overall length: Approx. 65 mm

Tips

Always use a pilot pin and cutting fluid to prolong tool life and improve hole quality. Clear chips regularly to prevent clogging.
