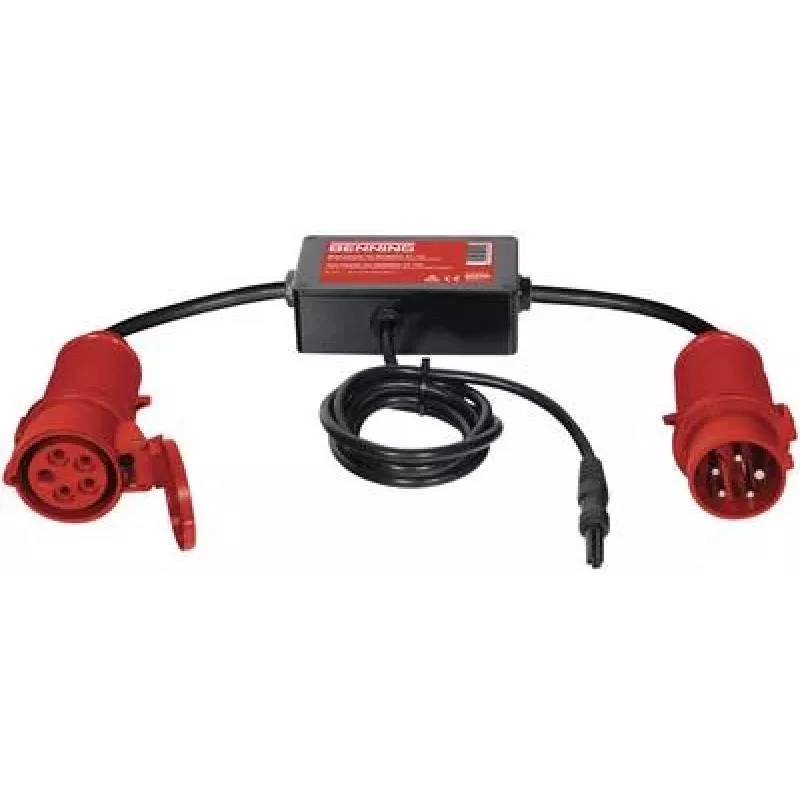

BENNING 044140 adaptador de medição ativo de 3 fases para tomadas CEE 16A de 5 polos, 400V

For electricians testing three-phase CEE 16 A sockets, the BENNING 044140 active measuring adapter provides direct access to all five conductors through 4 mm safety sockets. Unlike passive breakout adapters, its active design with LED indicators confirms phase presence before connecting a tester, reducing the risk of miswiring or missed faults during installation verification.

Highlights

• Plugs directly into CEE 16 A, 5-pin (3P+N+PE) sockets up to 400 V AC
• Active adapter with LED phase indicators for L1, L2, L3
• Outputs via five 4 mm safety sockets: L1, L2, L3, N, PE
• Compatible with BENNING IT 105, IT 115, IT 120, IT 130 installation testers
• Supports RCD testing, loop impedance, insulation resistance, phase sequence, voltage, and PE conductor test
• Robust, impact-resistant plastic housing for field use

In daily use

Connect the adapter to the CEE socket under test, verify the phase LEDs, then plug your BENNING installation tester into the corresponding safety sockets. The adapter is rated CAT III 400 V and meets VDE 0100-600 / IEC 60364-6 requirements for testing electrical installations.

Full specifications

• Product type: Measuring adapter
• Input connector: CEE 16 A, 5-pin
• Phases: 3-phase
• Nominal voltage (L-L): 400 V AC
• Nominal voltage (L-N): 230 V AC
• Nominal current: 16 A
• Output connection: 4 mm safety sockets (L1, L2, L3, N, PE)
• Safety category: CAT III 400 V
• Indicators: LED phase indicators (L1, L2, L3)
• Application: Testing of CEE 16 A sockets
• Standards compliance: VDE 0100-600 / IEC 60364-6
• Housing material: Robust, impact-resistant plastic
• Operating principle: Active adapter
• Connection method: Direct plug-in
• Number of test points: 5

Final note

The BENNING 044140 is a specialised tool for professional electricians performing periodic inspection and testing of three-phase CEE outlets in industrial and commercial environments.
