BlueLAN NVIDIA Cabo DAC Breakout 400G QSFP-DD compatível 1m Cobre Passivo 400GBASE-CR8 para 2x200GBASE-CR4 QSFP56

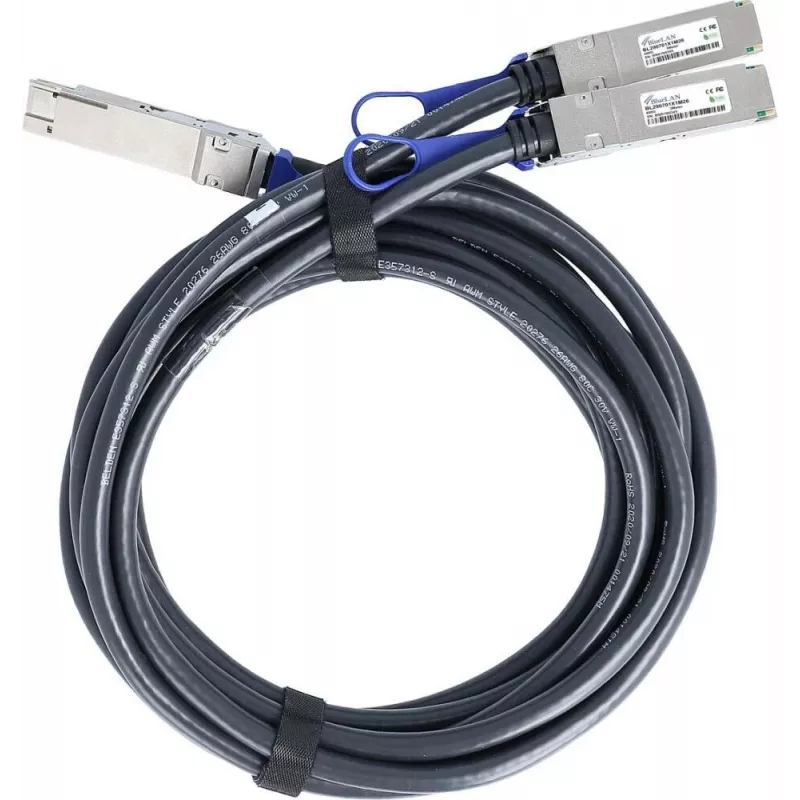

The BlueLAN 980-9IA3S-00W001-BL is a high-performance passive copper Direct Attach Cable (DAC) designed for breakout applications in modern data centers. It connects a 400GBASE-CR8 QSFP-DD port to two 200GBASE-CR4 QSFP56 ports, enabling efficient aggregation and flexible network architecture. With a length of 1 meter and ultra-low power consumption, this cable is ideal for short-reach, high-speed interconnects within racks.

Advantages

This breakout cable offers a cost-effective and power-efficient solution for splitting a 400G link into two 200G links, maximizing port utilization and reducing cabling complexity. The passive copper design ensures zero power consumption and minimal latency, while the robust construction guarantees reliable signal integrity. Compatibility with NVIDIA (Mellanox) equipment ensures seamless integration into existing infrastructures.

Suitable for

• High-speed data center interconnects
• Top-of-rack to server connections
• Network aggregation and breakout scenarios
• NVIDIA (Mellanox) switch and adapter deployments

Key specifications

• Cable Type: Direct Attach Cable (DAC) - Passive Copper
• Configuration: Breakout Cable (1 to 2)
• Aggregate Data Rate: 400 Gbps
• Connector A: QSFP-DD (400GBASE-CR8)
• Connector B: 2x QSFP56 (200GBASE-CR4 each)
• Length: 1 Meter
• Compatibility: NVIDIA (Mellanox) compatible
• Hot-Swappable: Yes
• Power Consumption: Ultra-low (passive)

Recommendations

For optimal performance, ensure that both the host device and the connected equipment support the respective standards (400GBASE-CR8 and 200GBASE-CR4). This cable is not suitable for active optical or longer distance applications. Always verify compatibility with your specific hardware model.
