Cabo breakout universal de fibra ótica pré-montado Digitus multimodo OM4 12 fibras LC/UPC 50 m

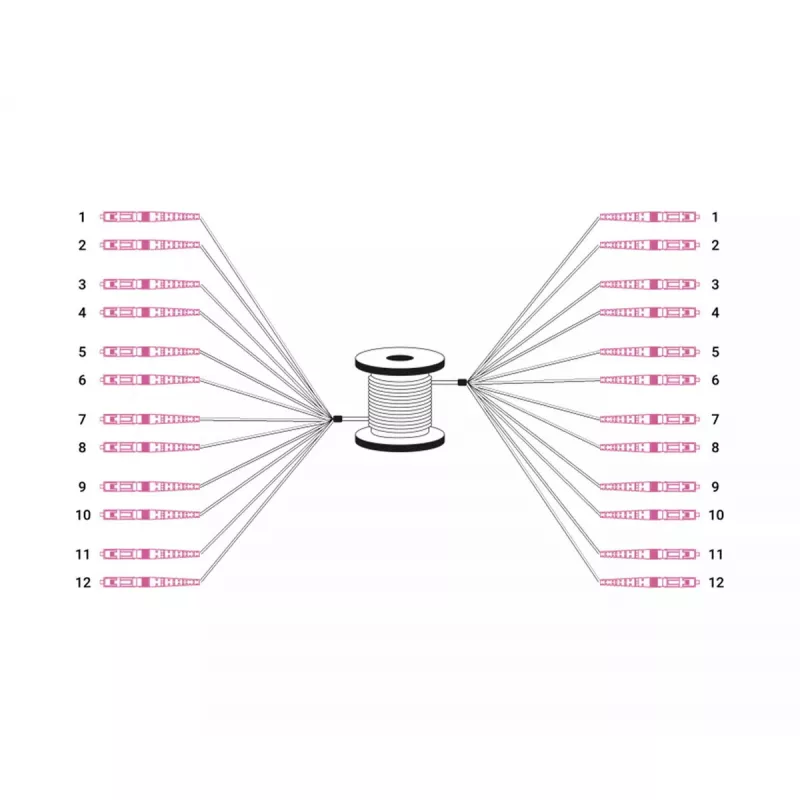

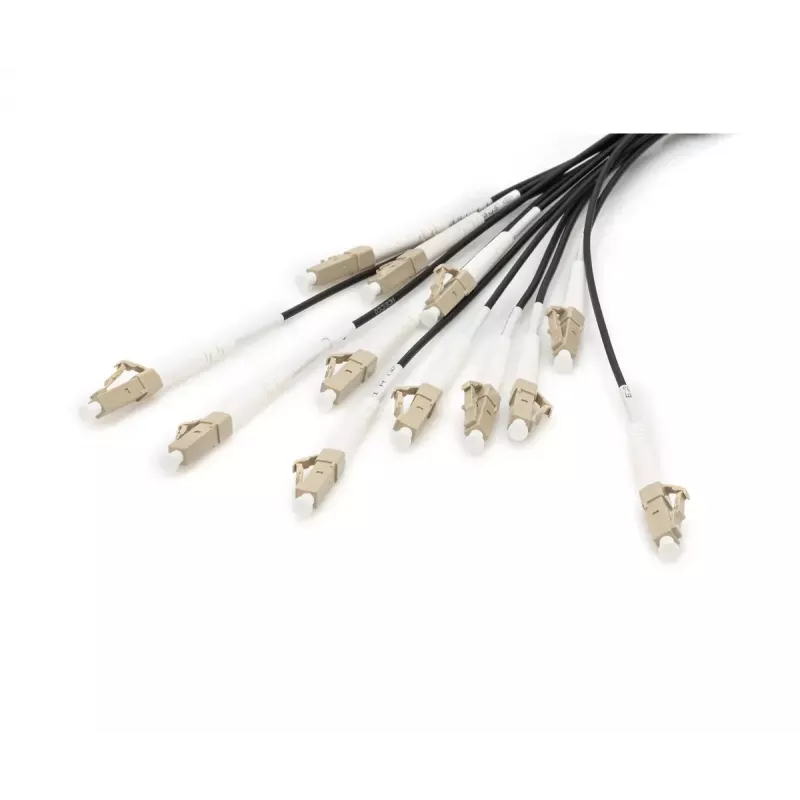

Digitus Pre-assembled Fiberglass Universal Breakout Cable Multi Mode OM4 12 Fibers LC/UPC 50m is a factory-assembled multimode OM4 fiber optic breakout cable with 12 individual fibers terminated with LC/UPC connectors. The cable is 50 meters long with a 50 µm core diameter, designed for high-bandwidth indoor and outdoor network routes and ready for immediate use without additional splicing.

Advantages

The pre-assembled design includes high-quality, factory-mounted LC/UPC plugs and robust cable construction that provides individual mechanical protection for each fiber. Standard lengths are available from stock and the included measurement report removes the need for time-consuming follow-up testing. A two-sided insertion tool is supplied for secure installation, and the cable supports installation in network cabinets while avoiding potential differences.

Suitable for

• High-bandwidth backbone and distribution links in data centers
• Patch panel connections and partially equipped rack installations
• Indoor and outdoor fiber optic network routes
• Multimode OM4 applications requiring 12 fibers with LC/UPC terminations

Key specifications

• Brand: DIGITUS
• MPN: DK-2433CU050BK-BBB
• EAN: 4016032484288
• Fiber type: Multimode OM4
• Number of fibers: 12 (breakout)

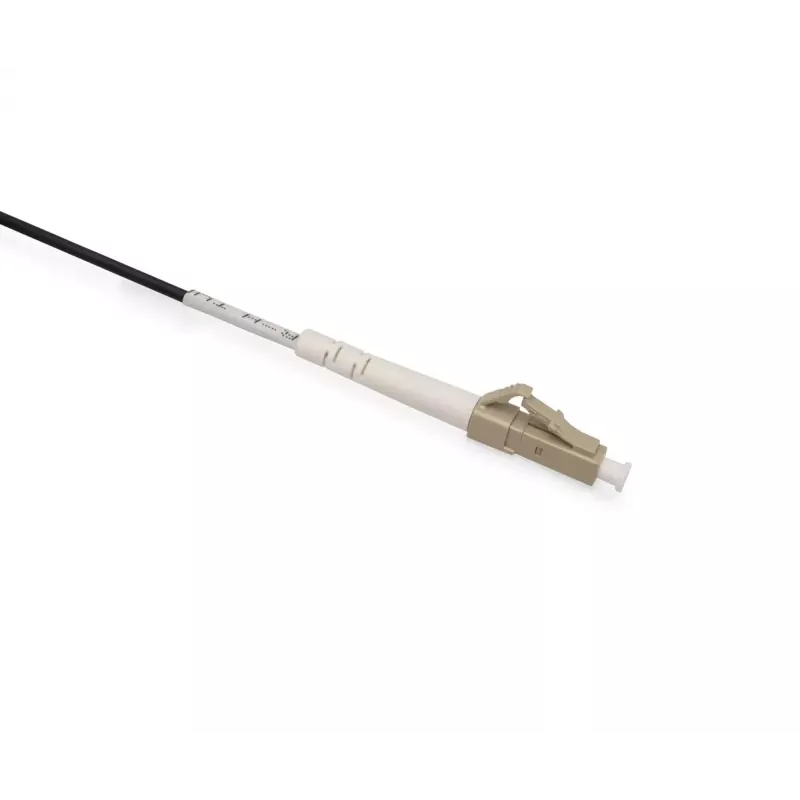

• Connectors: LC/UPC
• Core diameter: 50 µm
• Length: 50 m

How to use

Route the pre-assembled breakout cable along the planned network path and secure it according to local cabling guidelines. Use the supplied two-sided insertion tool to insert the LC/UPC terminations into patch panels or equipment. No additional splicing is required; verify connections with the provided measurement report and perform any site-specific grounding or cabinet equalization as needed.

Recommendations

Handle the breakout cable carefully to maintain mechanical protection of individual fibers; avoid tight bends and protect the breakout points during installation. Use appropriate strain relief and follow OM4 multimode handling guidelines for optimal performance.
