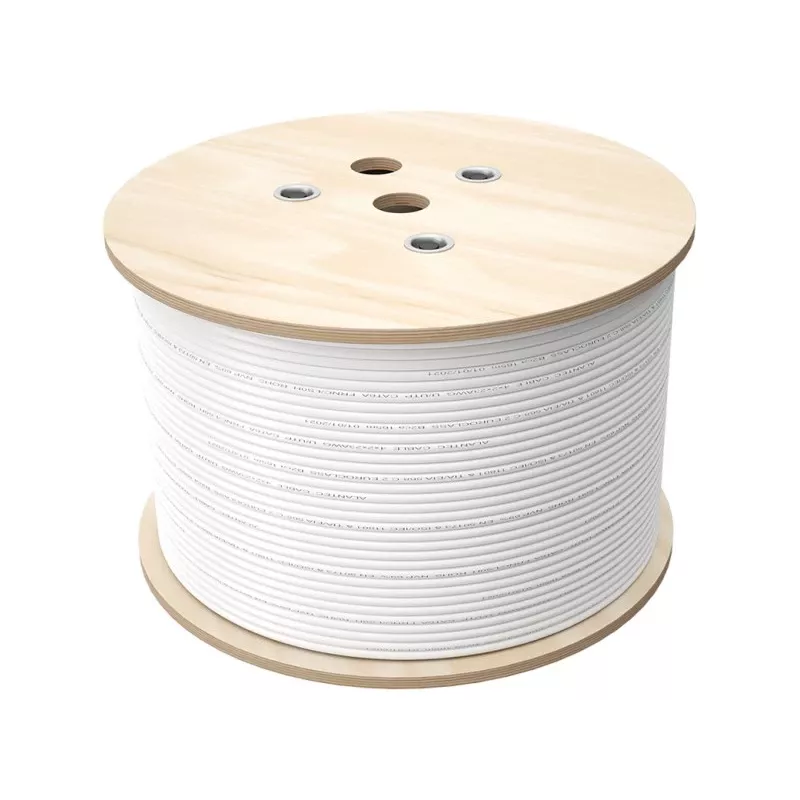

Cabo coaxial Alantec Trishield RG6 75 Ohm

The Alantec Coaxial Cable Trishield RG6 75 Ohm is a high-performance cable designed for reliable signal transmission in digital TV, satellite, broadband, and CCTV applications. With triple shielding and a 75 Ohm impedance, it ensures minimal interference and excellent signal quality over long distances.

Advantages

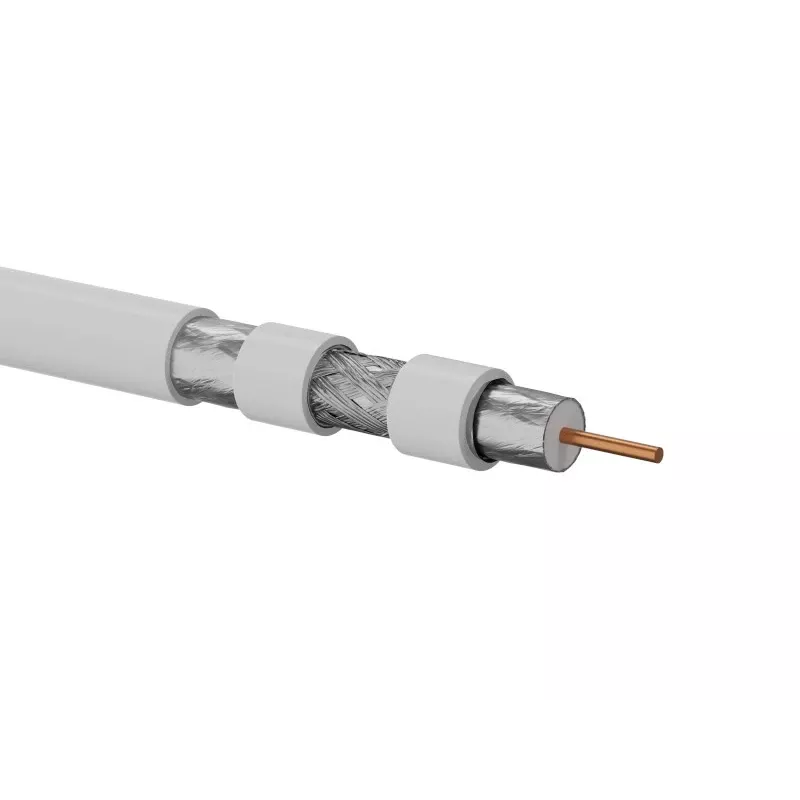

Triple shielding (Trishield) provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI). The copper-clad steel (CCS) inner conductor offers a balance of conductivity and strength, while the foamed polyethylene (FPE) dielectric ensures low signal loss. The PVC jacket is durable and flexible, making installation easy in various environments.

Suitable for

• Digital TV (DVB-T/T2)
• Satellite TV (DVB-S/S2)
• Broadband internet (cable modem)
• CCTV and surveillance systems
• Any application requiring 75 Ohm coaxial cable

Key specifications

• Cable Type: RG6
• Impedance: 75 Ohm
• Shielding: Triple (Aluminium Foil + Aluminium Braid + Aluminium Foil)
• Inner Conductor: Copper Clad Steel (CCS), 1.02 mm (18 AWG)
• Dielectric: Foamed Polyethylene (FPE)
• Jacket Material: PVC, White
• Outer Diameter: 6.8 mm
• Frequency Range: 5 - 3000 MHz
• Attenuation @ 100m (100 MHz): ~6.5 dB
• Attenuation @ 100m (1000 MHz): ~20.0 dB
• Velocity of Propagation: 85%
• Capacitance: 52 pF/m
• Return Loss: >20 dB (5-2150 MHz)
• Operating Temperature: -20°C to +70°C
• RoHS Compliant

Recommendations

For optimal performance, use with F-Type connectors and ensure proper termination. Suitable for both indoor and outdoor installations when protected from direct exposure to moisture.
