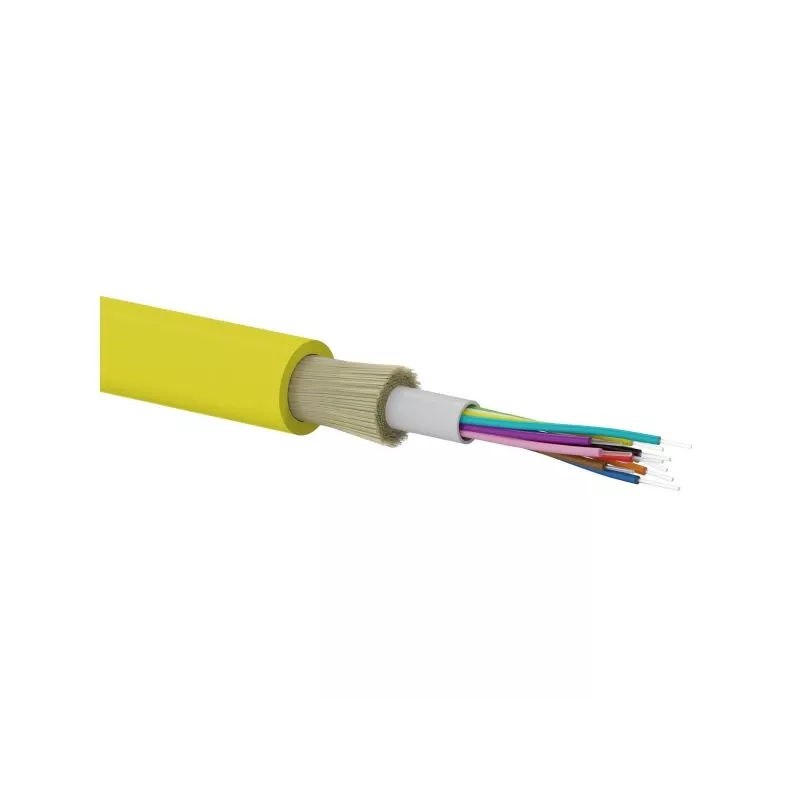

Cabo de fibra ótica ALANTEC FOK-U8J-SM-B-1, monomodo G.657.A1, 8 fibras, 9/125 µm, LSOH, B2ca, FireHardy, universal

The ALANTEC FOK-U8J-SM-B-1 is a high-quality singlemode fiber optic cable designed for universal indoor/outdoor applications. With 8 fibers, ITU-T G.657.A1 compliance, and a 9/125 µm core/cladding, it ensures reliable data transmission over long distances. The LSOH (Low Smoke Zero Halogen) sheath and B2ca CPR fire reaction class make it ideal for installations requiring enhanced fire safety. The FireHardy flame-retardant properties and UV resistance further enhance its durability.

Advantages

This cable offers low attenuation (≤0.35 dB/km at 1310 nm, ≤0.20 dB/km at 1550 nm), excellent bend performance (minimum bend radius 10 mm), and a robust loose tube design. It is non-metallic and dielectric, making it suitable for environments where electrical interference must be avoided.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• FTTx (Fiber to the x) deployments
• Industrial and commercial building cabling
• Outdoor and indoor backbone connections

Key specifications

• Brand: ALANTEC
• Model: FOK-U8J-SM-B-1
• MPN: FOK-U8J-SM-B-1
• EAN: 5904204407519
• Category: Fiber Optic Cable
• Fiber Mode: Singlemode
• Fiber Standard: ITU-T G.657.A1
• Number of Fibers: 8
• Core/Cladding Diameter: 9/125 µm
• Sheath Material: LSOH
• CPR Fire Reaction Class: B2ca
• Flame Retardancy: Yes (FireHardy)
• Cable Construction Code: U-DQ(ZN)BH
• Wavelengths Supported: 1310 nm, 1550 nm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.20 dB/km
• Minimum Bend Radius: 10 mm
• Cable Design: Loose Tube
• Dielectric Strength: Non-metallic
• UV Resistance: Yes

Recommendations

For optimal performance, use with compatible singlemode connectors and ensure proper installation to maintain bend radius specifications. This cable is ideal for high-speed data networks requiring low signal loss and high fire safety standards.
