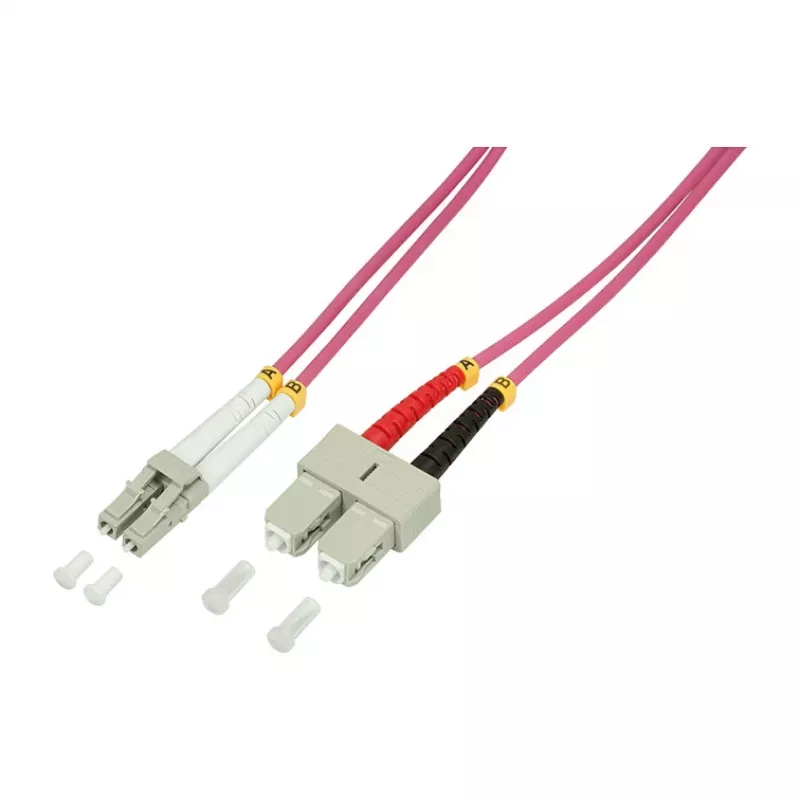

Cabo de patch de fibra ótica LogiLink OM4 LC/SC duplex multimodo 20m LSZH aqua

This 20-meter OM4 fiber optic patch cable delivers high-speed, low-loss connectivity for demanding data center and enterprise networks. With LC to SC duplex connectors and laser-optimized multimode fiber, it supports 40/100 Gigabit Ethernet over long distances, making it ideal for backbone cabling and high-density patching.

Advantages

The OM4 fiber core ensures exceptional bandwidth of 4700 MHz·km at 850 nm, enabling reliable transmission for today's high-throughput applications. Low insertion loss (<0.3 dB) and high return loss (>30 dB) maintain signal integrity, while the LSZH jacket provides safety in enclosed spaces by emitting low smoke and zero halogen in case of fire. The aqua-colored jacket allows quick identification of OM4 cabling.

Suitable for

• Data center backbone connections
• 10G, 40G, and 100G Ethernet applications
• High-density fiber patching in racks
• Enterprise network uplinks
• Telecom rooms and server rooms

Key specifications

• Cable length: 20 m
• Fiber type: OM4 multimode, 50/125 µm
• Connectors: LC duplex to SC duplex
• Jacket: LSZH, aqua
• Insertion loss: <0.3 dB
• Return loss: >30 dB
• Attenuation: <2.5 dB/km @850 nm, <0.8 dB/km @1300 nm
• Operating temperature: -20°C to 70°C
• Standards: IEC 60793-1, TIA/EIA-568-C.3

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and ensure proper bend radius during installation. Use in structured cabling systems where low smoke and halogen-free materials are required.
