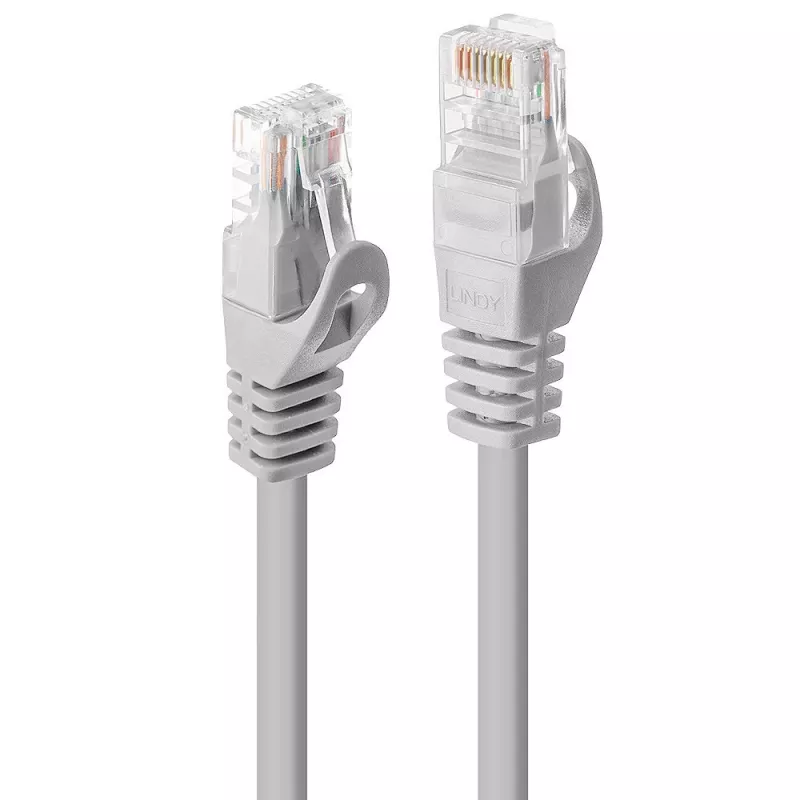

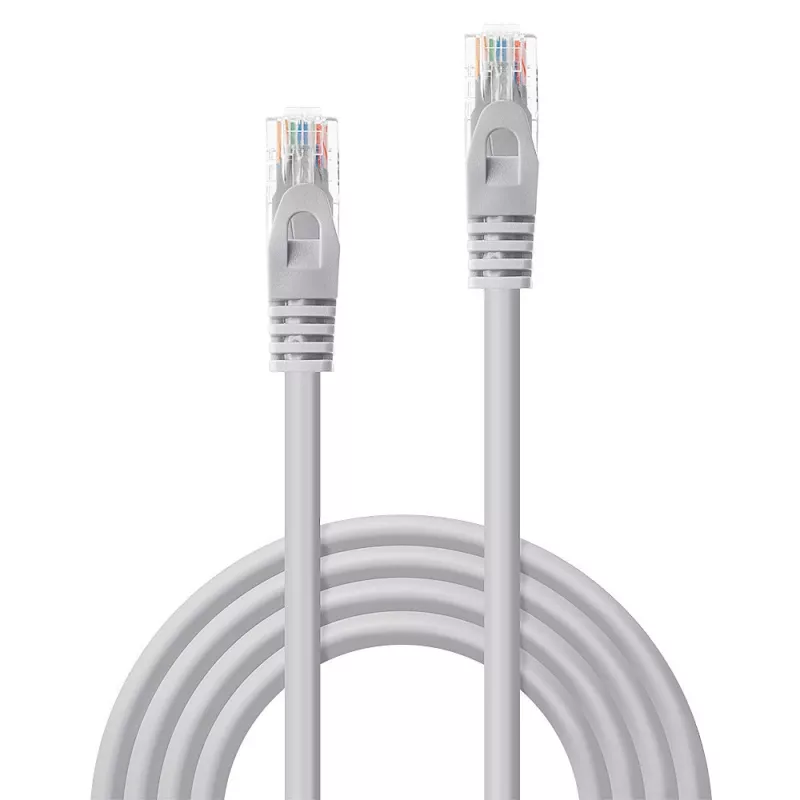

Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)

Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)
Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)
Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)
Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)
Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)
Cabo de rede Lindy 48161 cinzento 0,5 m Cat6 U/UTP (UTP)
13,14 €
Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the speci... Ler mais
Stock EsgotadoSem stock Código 2220629 Marca LINDY Modelo 48161 Garantia 2 anos

Envios e devoluções

Cat.6 U/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.

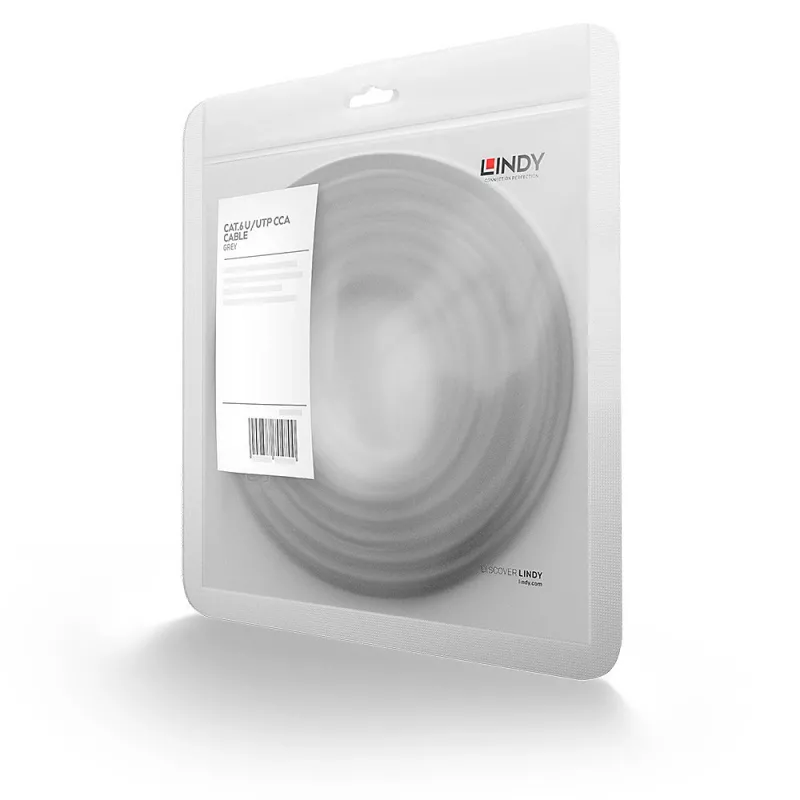

Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m.
Available colours: Grey, Blue, Red, Black, White.

Lindy 48161. Cable length: 0.5 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Grey

Destaques principais
  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6 U/UTP, CCA
  • Integrated snagless connector for latch protection
  • Gold plated pins for better conductivity and elimination of signal loss
  • 0.5 m
  • RJ-45 Male
  • RJ-45 Male
  • Cat6 U/UTP (UTP)
  • Grey
Especificações
Bitola do fio (AWG)
26
Blindagem do cabo
U/UTP (UTP)
Categoria
6
Certificação
RoHS, REACH, California Proposition 65
Código do Sistema Harmonizado (HS)
84733080
Comprimento do cabo
0.5 m
Conector 1
RJ-45
Conector 2
RJ-45
Cor do produto
Grey
Diâmetro exterior
5.8 mm
Dimensões do conector 1 (LxPxA)
11.6 x 22.8 x 8.3 mm
Dimensões do conector 2 (LxPxA)
11.6 x 22.8 x 8.3 mm
Frequência
250 MHz
Género do conector 1
Male
Género do conector 2
Male
Material da bainha
Polyvinyl chloride (PVC)
Material do condutor
Copper-Clad Aluminium (CCA)
Norma do cabo
Cat6
Raio de curvatura (mín.)
6.9 cm
Revestimento dos contactos do conector
Gold
Tecnologia de cablagem
10/100/1000Base-T(X)
Temperatura de armazenamento (T-T)
-20 - 75 °C
Temperatura de funcionamento (T-T)
-10 - 60 °C
Tipo de embalagem
Polybag
