Cabo de rede TELEGÄRTNER LC para LC Single-Mode OS2 duplex, 5 m, amarelo

Low insertion loss of <0.3 dB and high return loss of >50 dB ensure reliable signal integrity over 5 metres of 9/125 µm single-mode fibre.

Overview

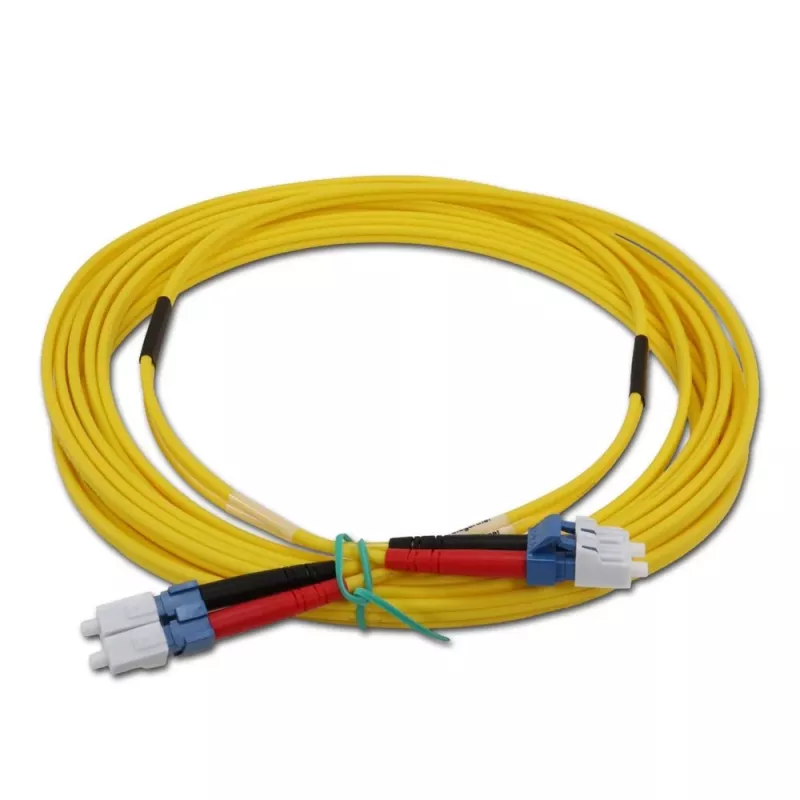

This TELEGÄRTNER patch cable connects LC to LC interfaces in data centres, LANs, SANs, and FTTx networks. The duplex construction with two fibres supports bidirectional communication, and the yellow LSZH jacket meets low-smoke zero-halogen requirements.

What stands out

• OS2 single-mode fibre for long-distance, high-bandwidth links.

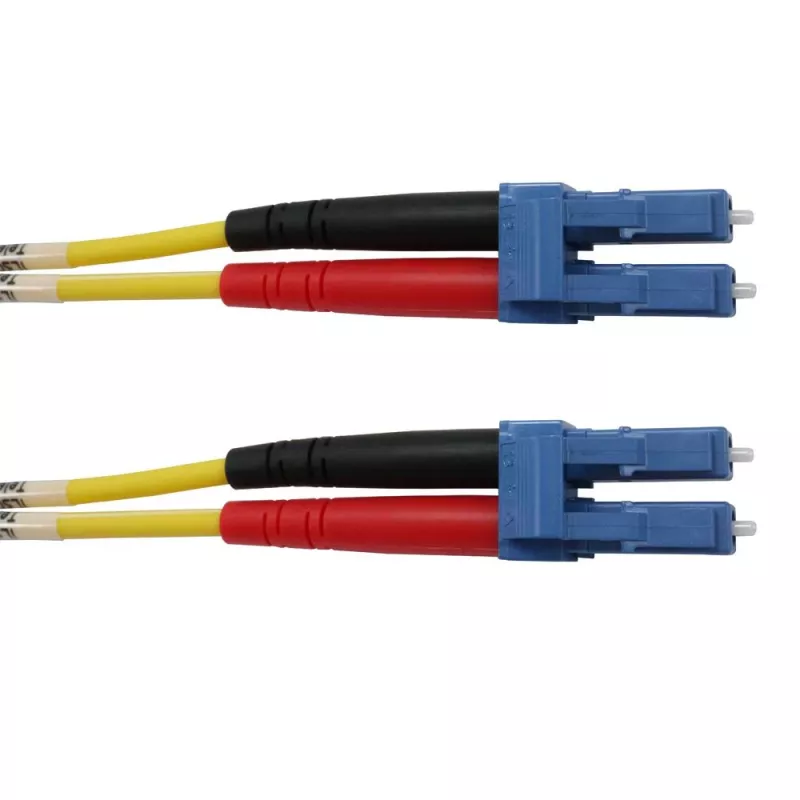

• LC male connectors on both ends for secure, high-density connections.
• LSZH jacket reduces toxic smoke in case of fire.
• Operating temperature range from -20°C to 70°C.

Technical details

• Cable type: Fibre optic patch cable, duplex
• Fibre mode: Single-mode, OS2
• Core/cladding diameter: 9/125 µm
• Connector 1: LC male
• Connector 2: LC male
• Cable length: 5 m
• Jacket colour: Yellow
• Jacket material: LSZH
• Insertion loss: <0.3 dB
• Return loss: >50 dB
• Operating temperature: -20°C to 70°C

Our verdict

A dependable single-mode patch cable for professional fibre installations, offering low loss and a flame-retardant jacket.
