Cabo Direct Attach QSFP112 BlueLAN compatível com Supermicro CBL-NTWK-0912-QSFP-2, 400GBASE-CR4, InfiniBand, 1,5 m (CBL-NTWK-0912-QSFP-2-BL)

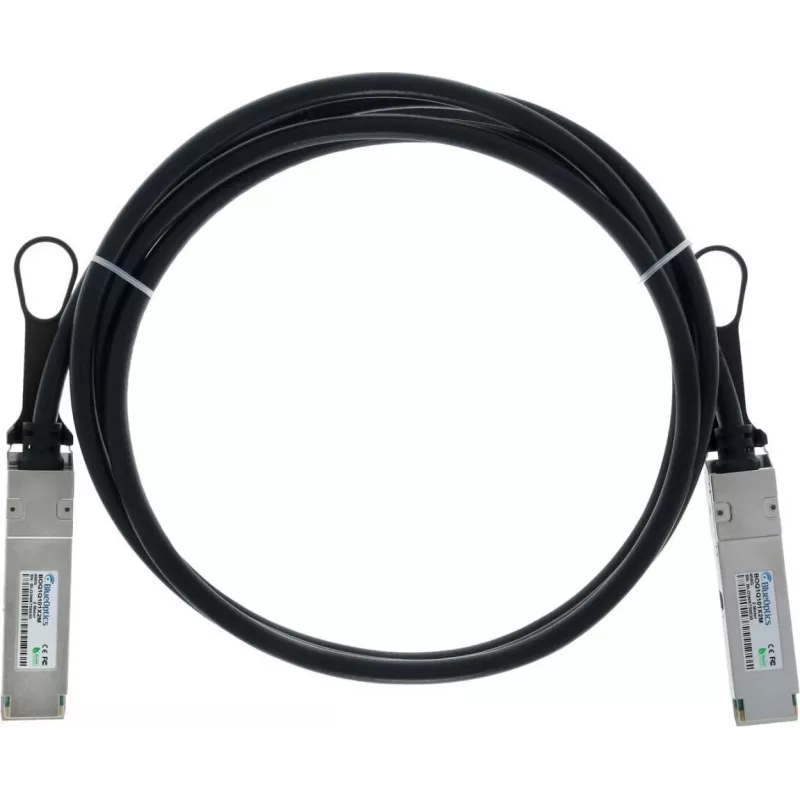

The BlueLAN CBL-NTWK-0912-QSFP-2-BL is a high-performance, compatible direct attach cable (DAC) designed for Supermicro CBL-NTWK-0912-QSFP-2 applications. This passive copper cable supports 400GBASE-CR4 Ethernet and InfiniBand protocols, delivering 400 Gbps data rates over a 1.5-meter length. With QSFP112 connectors on both ends, it provides a cost-effective, low-power solution for short-reach interconnects in data centers and high-performance computing environments.

Advantages

This DAC offers ultra-low power consumption as a passive cable, eliminating the need for external power. It ensures reliable, high-speed connectivity with minimal latency, making it ideal for dense network topologies. The BlueLAN cable is fully compatible with Supermicro equipment, providing a seamless drop-in replacement for original cables at a fraction of the cost.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network switches and servers
• InfiniBand and 400GbE networks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 400 Gbps
• Ethernet Standard: 400GBASE-CR4
• Protocol Support: Ethernet, InfiniBand
• Connector Type (End A): QSFP112
• Connector Type (End B): QSFP112
• Cable Length: 1.5 m
• Cable Type: Passive Copper
• Compatibility: Supermicro CBL-NTWK-0912-QSFP-2 (Compatible)
• Form Factor: QSFP112
• Transceiver Type: Passive
• Number of Lanes: 4
• Hot-Swappable: Yes
• Power Consumption: Ultra-low (Passive)

Recommendations

For optimal performance in high-speed data center environments, pair this BlueLAN DAC with compatible Supermicro switches and servers. Ensure proper cable management to maintain signal integrity over the 1.5-meter length.
