Cabo patch de fibra ótica LSZH multimodo 50/125 OM2 ACT 1 metro duplex com fichas LC e ST

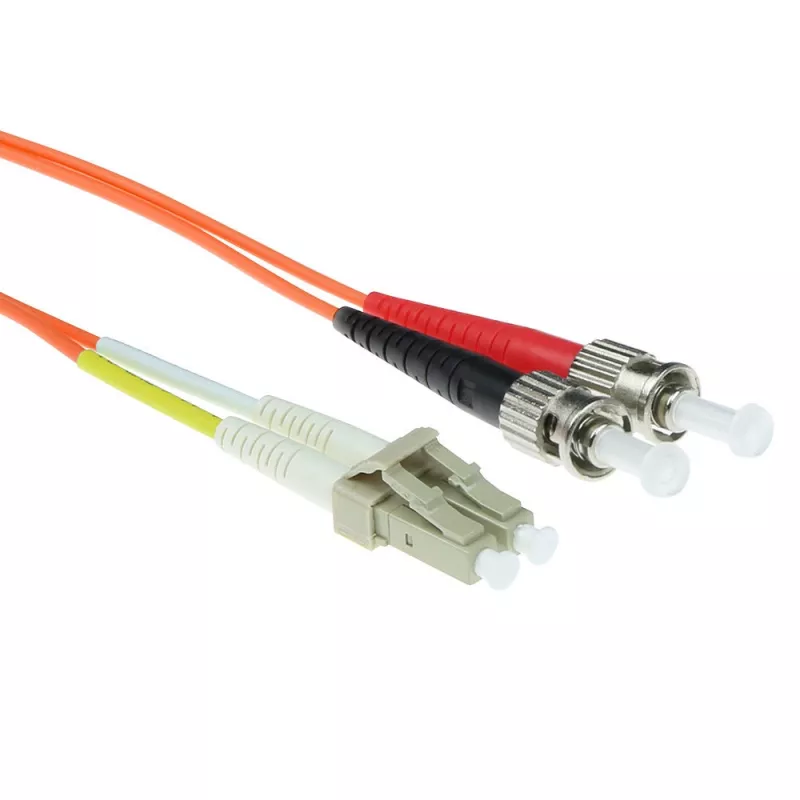

The ACT Fiber Patch Cable 1 meter LSZH Multimode 50/125 OM2 duplex LC–ST is a short multimode fiber patch lead designed for indoor network connections where high-speed optical transmission and safety are required. The cable uses 50/125 µm multimode glass (OM2) and terminates in a duplex LC connector on one end and an ST connector on the other, providing compatibility with equipment that accepts these connector types. The LSZH outer jacket reduces toxic smoke and halogen emissions in case of fire, making the cable suitable for enclosed spaces and areas with ventilation or safety constraints.

Advantages

This 1 meter multimode fiber patch cable delivers consistent optical performance for short-distance links and equipment interconnects. The OM2 50/125 core/cladding dimensions support common multimode network applications and patching in data centers, telecom rooms, and enterprise racks. The duplex LC–ST arrangement allows direct connection between devices with different connector interfaces without additional adapters, while the LSZH jacket enhances safety in indoor installations.

Suitable for

• Short-range fiber patching in data centers and server rooms
• Interconnecting switches, transceivers and patch panels with LC and ST ports
• Indoor structured cabling where low-smoke, halogen-free materials are required

Key specifications

• Fiber type: Multimode 50/125 µm (OM2)
• Connector set: Duplex LC to ST
• Cable length: 1 meter
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Mode: Multimode duplex

How to use

Confirm that the connected devices support multimode fiber and the specified connector types (LC and ST). Clean connector endfaces before insertion to ensure optimal optical transmission. Align and insert the duplex LC connector into the LC port and insert the ST connector into the ST socket until it clicks or the bayonet coupling is secure. Avoid sharp bends and excessive pulling on the cable; maintain the minimum bend radius recommended for multimode fiber to prevent attenuation and damage.

Recommendations

Store the cable coiled without tight loops and protect connector endfaces with dust caps when not in use. Use this OM2 multimode patch cable for short indoor connections; for longer runs or higher bandwidth requirements, consider higher-grade multimode standards or singlemode alternatives as appropriate for your network design.
