Cabo troncal de fibra ótica SYNERGY21 U-DQ ZN BH 8G 50/125 LC/LC OM4 10m anel - fibra multimodo

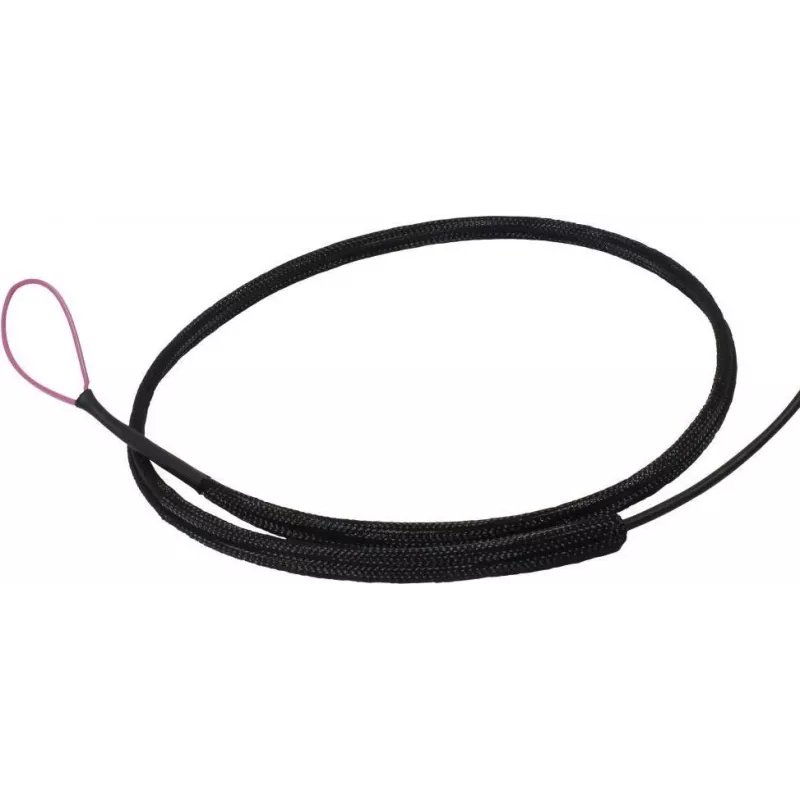

The SYNERGY21 S217070 is a high-performance fiber optic trunk cable designed for reliable data transmission in demanding network environments. This multimode OM4 cable features 8 fibers with LC connectors on both ends, providing a robust solution for backbone cabling, data centers, and enterprise networks. The cable construction U-DQ ZN BH ensures universal application, loose tube design, non-metallic components, halogen-free materials, and flame retardancy, making it suitable for both indoor and outdoor use.

Advantages

This trunk cable offers exceptional bandwidth and low attenuation, supporting high-speed data rates over medium distances. The OM4 fiber class is optimized for 40/100 GbE applications, with a minimum modal bandwidth of 4700 MHz*km at 850 nm. The LSZH jacket enhances safety by reducing toxic smoke emissions in case of fire. The pre-terminated LC connectors with ceramic ferrules and UPC polish ensure low insertion loss and high return loss, providing a reliable and easy-to-install solution.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• Telecommunications rooms
• Indoor/outdoor campus networks
• High-speed data transmission up to 100 GbE

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode
• Fiber Class: OM4
• Fiber Count: 8 Fibers
• Fiber Core/Cladding Diameter: 50/125 µm
• Connector Type A: LC
• Connector Type B: LC
• Cable Length: 10 m
• Cable Construction: U-DQ ZN BH (Universal, Loose Tube, Non-metallic, Halogen-free, Flame Retardant)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Application Environment: Indoor/Outdoor
• Max. Attenuation @ 850nm: 2.5 dB/km
• Max. Attenuation @ 1300nm: 0.7 dB/km
• Min. Modal Bandwidth @ 850nm: 4700 MHz*km
• Min. Modal Bandwidth @ 1300nm: 500 MHz*km
• Connector Ferrule Material: Ceramic
• Connector Polish Type: UPC
• Cable Color: Aqua

Recommendations

For optimal performance, ensure proper cable management and avoid sharp bends. This cable is ideal for structured cabling systems requiring high bandwidth and reliability. Compatible with standard LC interfaces.
