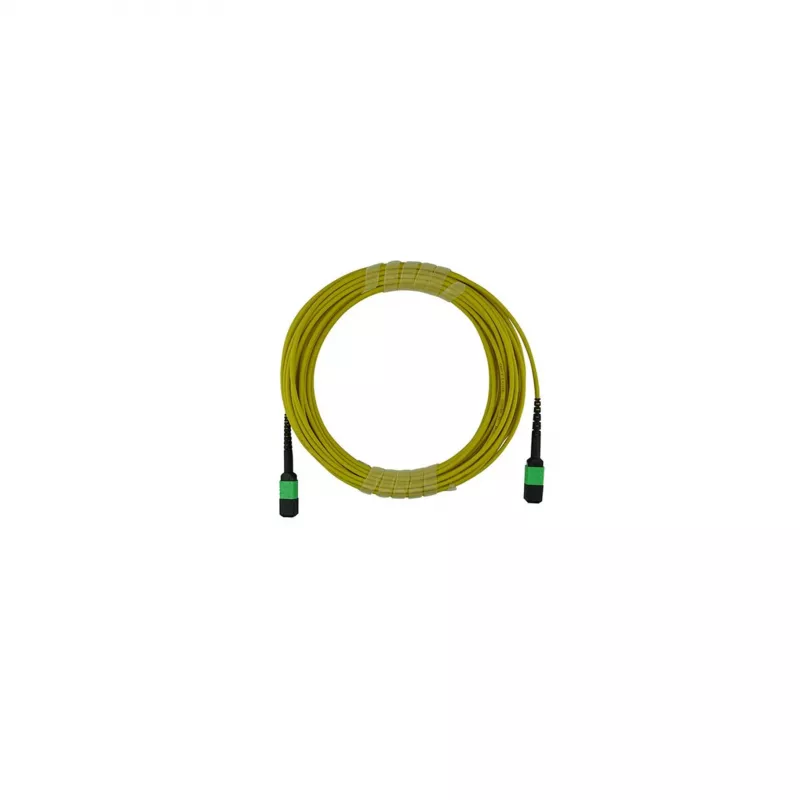

Cabo Trunk de Fibra Ótica BlueOptics Compatível Juniper MTP12-FF-S10M MTP/APC para MTP/APC Monomodo OS2, 10 m, Amarelo

The BlueOptics MTP12-FF-S10M is a high-performance fibre optic trunk cable designed for compatibility with Juniper Networks equipment. This 10-meter single-mode OS2 cable features MTP/APC female connectors on both ends, providing a reliable and low-loss connection for data centre, SAN, and LAN applications. With 12 fibres and Type B polarity, it ensures optimal signal transmission in parallel optics environments.

Advantages

Engineered for minimal insertion loss (≤0.35 dB per connector) and high return loss (≥60 dB), this trunk cable delivers exceptional signal integrity. The LSZH (Low Smoke Zero Halogen) jacket enhances safety in confined spaces, while the durable 3.0 mm diameter cable withstands demanding installations. Compatible with Juniper systems, it offers a cost-effective alternative to OEM solutions without compromising performance.

Suitable for

• Data centre interconnects
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• Parallel optics applications
• Juniper network equipment

Key specifications

• Cable Type: MTP/MPO Fibre Optic Trunk Cable
• Fiber Count: 12 Fibers
• Connector A: MTP/APC Female
• Connector B: MTP/APC Female
• Fiber Mode: Singlemode (OS2)
• Cable Length: 10 meters
• Polarity: Type B (Cross-over)
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss (Max): 0.35 dB per connector
• Return Loss (Min): 60 dB
• Ferrule Material: Zirconia Ceramic
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards: TIA/EIA-604-5 (FOCIS 5), IEC 61754-7, RoHS, CE

Recommendations

For optimal performance, ensure proper cleaning of connectors before installation. This cable is ideal for high-density fibre environments where space and reliability are critical. Pair with compatible Juniper transceivers for seamless integration.
