Cabo VGA Vision TC3-PK10MCABLES 10 m

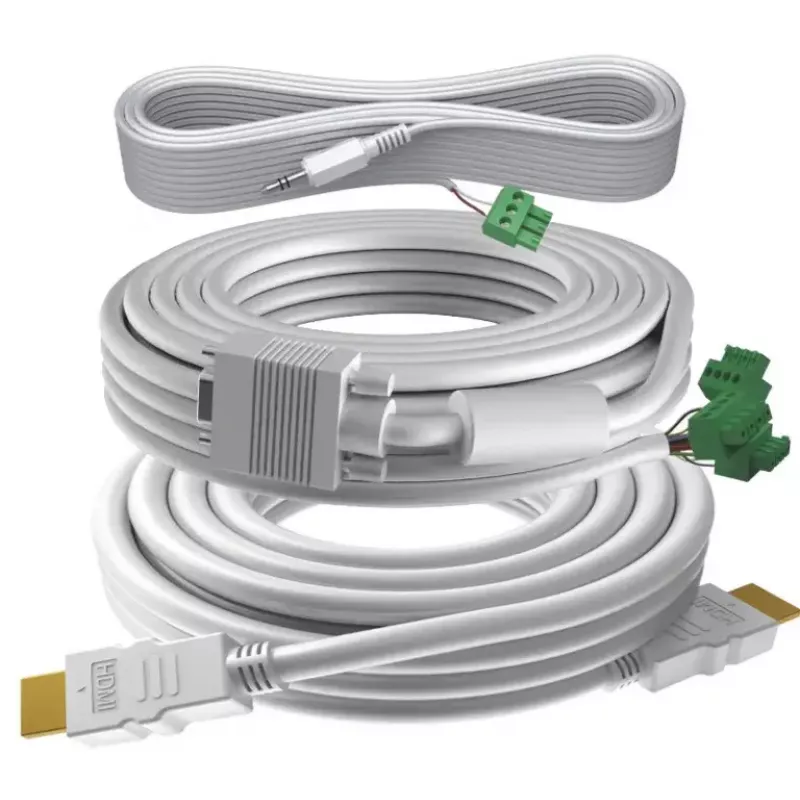

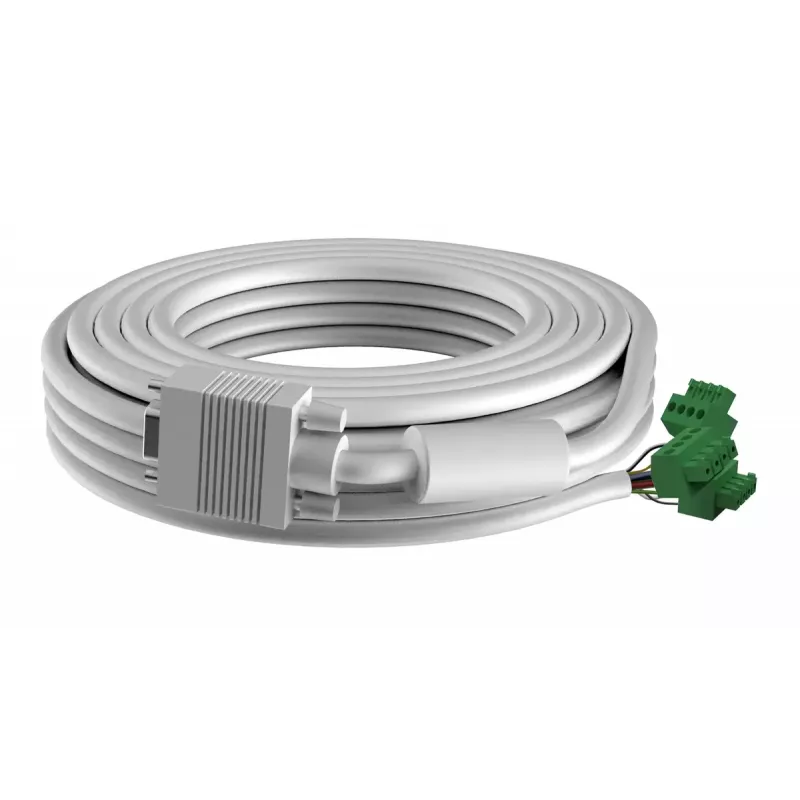

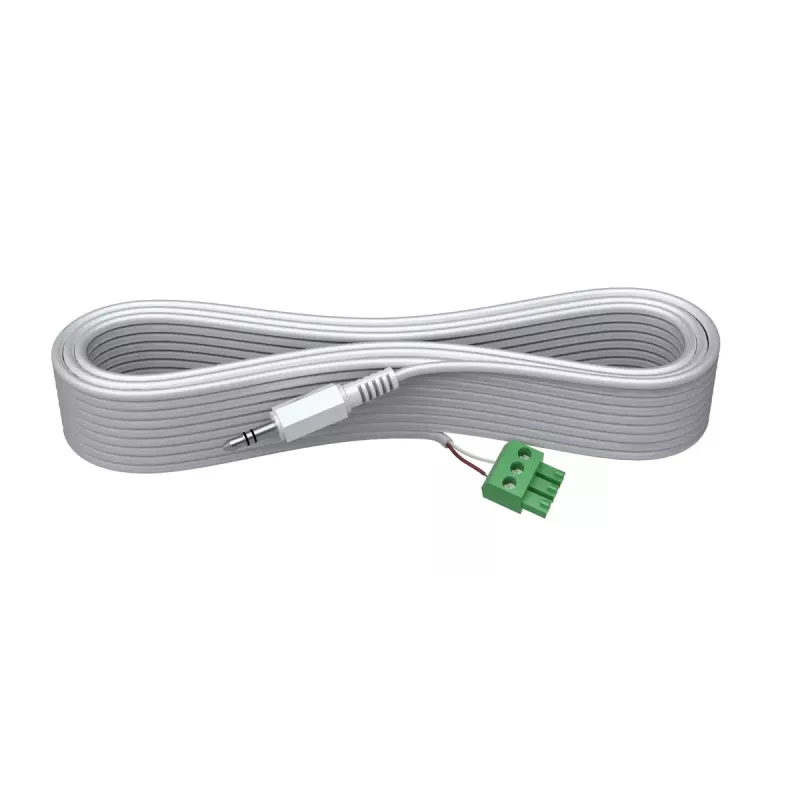

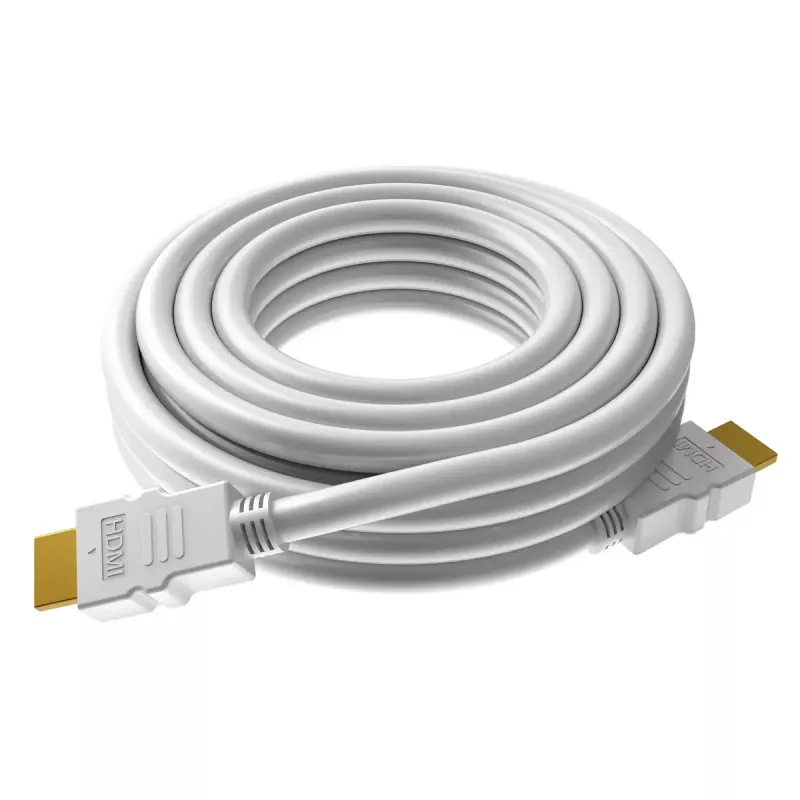

The Vision TC3-PK10MCABLES kit contains three white AV cables designed for installation use: a 10 m VGA cable with moulded D-Sub connectors, a 3.5 mm mono/stereo minijack installation lead with moulded connector, and a 4K-capable High Speed HDMI cable (HDMI 1.4) with Ethernet. Cables feature PVC sheaths, gold-plated HDMI and VGA contacts, and ferrite core on the VGA lead to reduce RF interference. Conductor gauges vary by cable length for the HDMI cable; the VGA cable uses 28 AWG conductors and a braided Al-Mg shield with >65% coverage.

Advantages

The set provides ready-made, installation-friendly leads with moulded connectors on one end and male phoenix-style connectors on the other for direct connection to Techconnect faceplate modules. Materials and construction — including gold-plated contacts, braided shielding on the VGA lead, and a ferrite core to suppress RF noise — are selected to maintain stable signal transmission in typical AV installations. The HDMI cable supports 4K and Ethernet over HDMI where supported by connected devices.

Suitable for

Key specifications

How to use

Plug the moulded VGA HD15 connector into the VGA source or display and insert the male phoenix connector into the corresponding terminal on the Techconnect module or wall plate. Connect the 3.5 mm minijack to the audio source or sink and insert its phoenix connector into the faceplate module. For HDMI, connect HDMI-A plugs to source and display devices. Ensure connectors are fully seated and routed to avoid sharp bends; secure cables in the installation to prevent strain on connectors.

Recommendations

For best performance, keep VGA and HDMI runs away from large sources of electromagnetic interference and avoid excessive bending or kinking. Use the ferrite-equipped VGA lead in environments with potential RF noise. Verify device compatibility for HDMI Ethernet and 4K features before depending on those functions.
