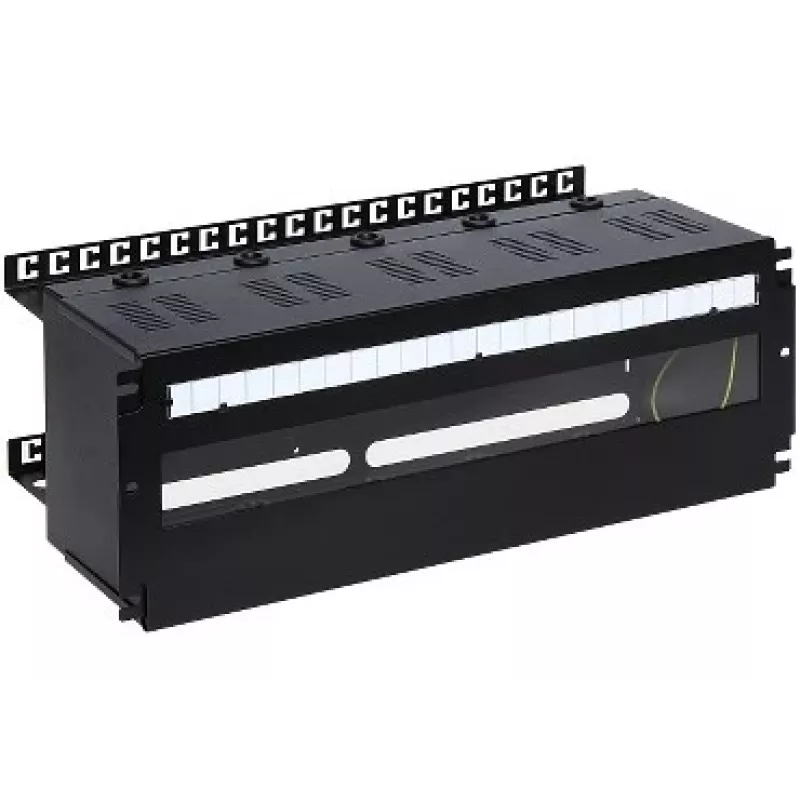

Caixa com calha DIN PULSAR ARADIN3 — modelo A19-TS-35/OB-4U

The PULSAR ARADIN3 enclosure model A19-TS-35/OB-4U is a ready-to-install housing designed to accommodate electrical and electronic modules on a TS-35 DIN rail. It provides a compact, secure frame for mounting circuit protection devices, terminals, relays and small controllers within control panels or distribution cabinets. The enclosure simplifies organization of components and wiring while maintaining accessibility for maintenance and inspection.

Advantages

This enclosure features a standardized TS-35 DIN rail mounting interface that ensures compatibility with a wide range of modular devices. The prepared housing reduces installation time by providing a stable mounting platform and preconfigured space for up to four units on the rail. Its construction supports neat wiring routes and improves component accessibility, contributing to safer and more orderly electrical panels.

Suitable for

Key specifications

How to use

Install the enclosure inside a cabinet or panel and secure the TS-35 DIN rail according to cabinet layout and mounting recommendations. Snap or fasten modular devices onto the rail within the prepared housing space, ensuring each device is properly seated and secured. Route wiring through the enclosure opening and connect to device terminals following standard electrical safety rules and applicable local regulations. Leave adequate spacing for heat dissipation and access for maintenance.

Recommendations

Verify compatibility of each module with the TS-35 rail profile before installation, observe correct tightening torque for terminal and mounting screws, and ensure the enclosure is used in dry indoor environments or protected locations consistent with the product’s intended application.
