Caixa de PC Kolink Citadel Mesh Micro Tower preto

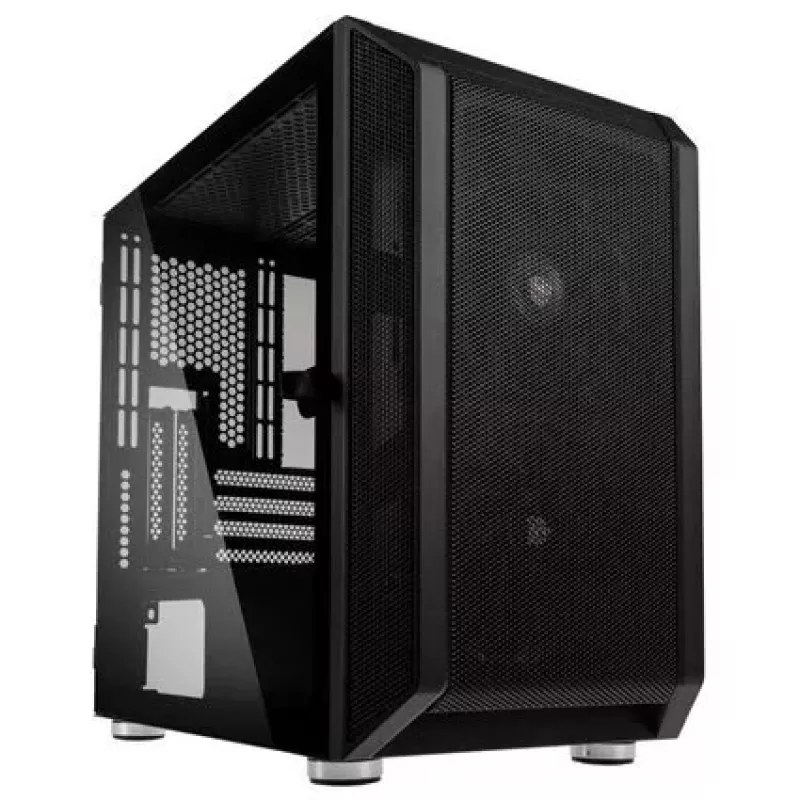

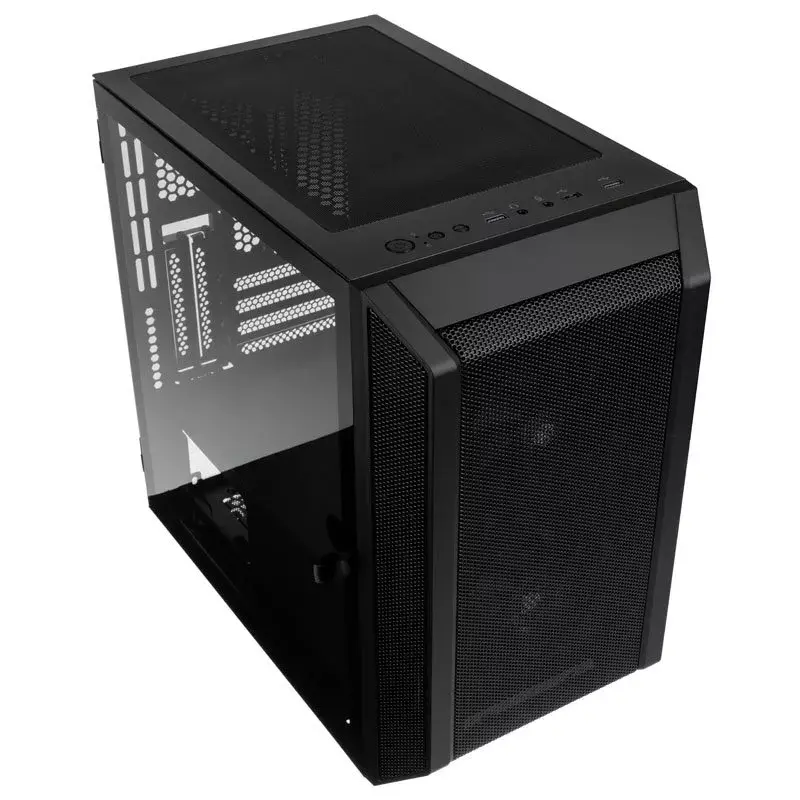

The Kolink Citadel Mesh Micro Tower Black is a compact Micro-ATX / Mini-ITX PC case engineered for high airflow and practical component layout. The case features a full mesh front panel, a hinged tempered glass side window and two pre-installed 120 mm PWM front fans. With support for ATX power supplies, multiple drive configurations and radiator mounting options, the chassis is aimed at small-footprint builds that require efficient cooling and clear component visibility.

Advantages

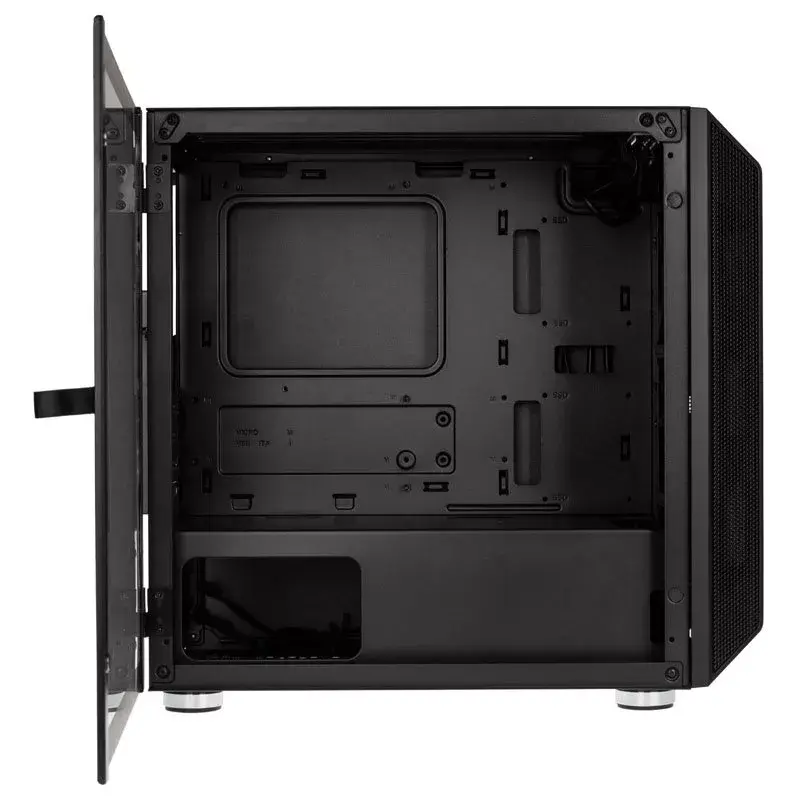

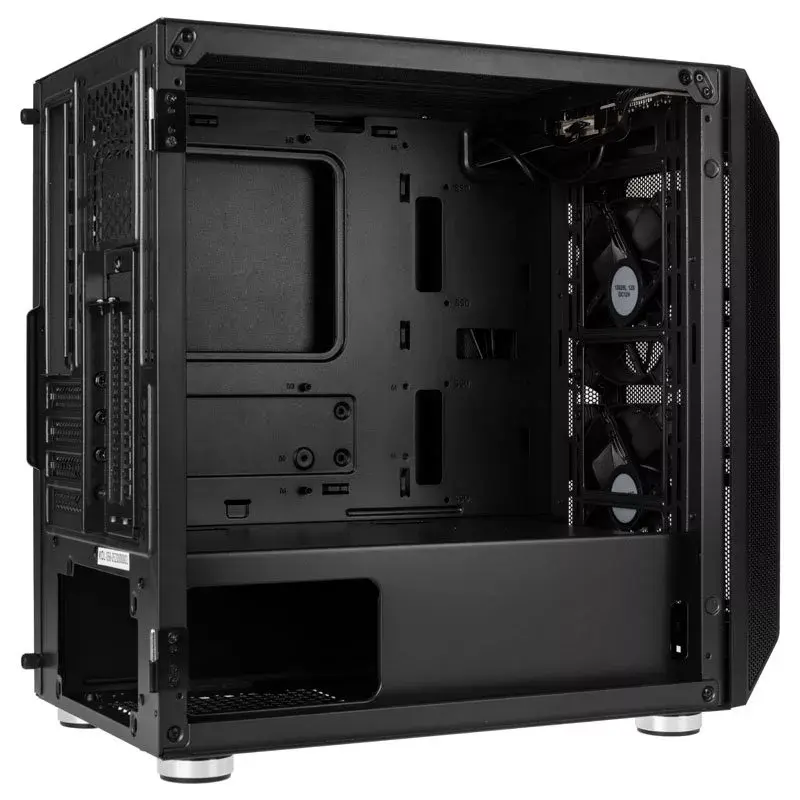

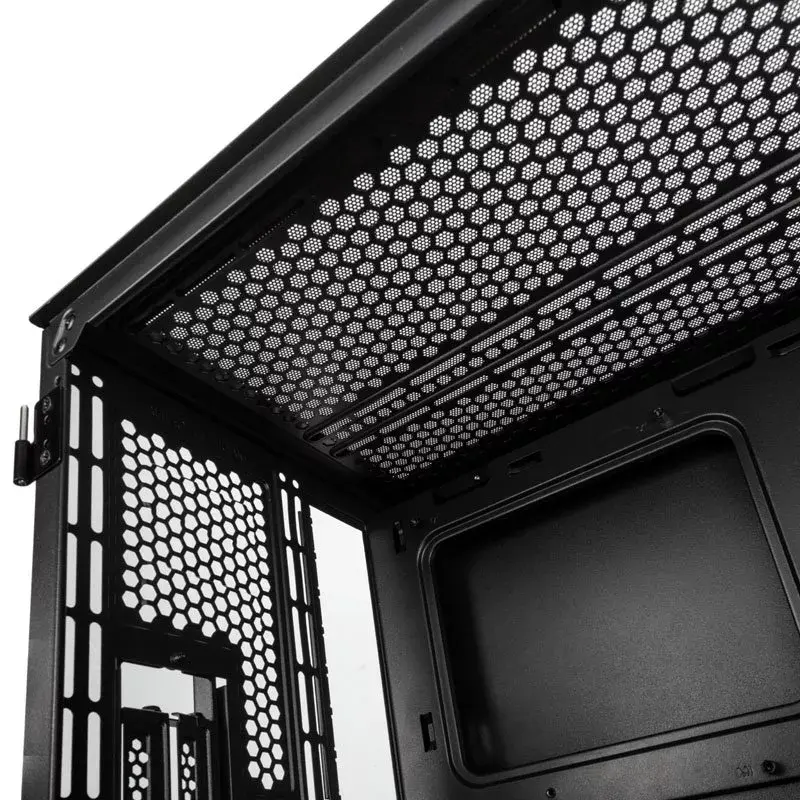

The full mesh front panel combined with two pre-installed 120 mm PWM fans provides effective intake airflow while allowing automatic fan-speed control through motherboard PWM headers. A hinged tempered glass side panel offers easy access and a clear view of internal components without tools, and magnetic retention keeps the panel securely closed. The internal layout includes a PSU shroud, dedicated HDD cage and multiple 2.5" mounting points for flexible storage arrangements. Removable dust filters and a roof-mounted magnetic dust filter simplify maintenance and protect components from debris.

Suitable for

• Compact gaming or productivity builds using Micro-ATX or Mini-ITX motherboards
• Systems requiring strong airflow in a small chassis footprint
• Builds that combine multiple SSDs and HDDs for mixed storage
• Cooling-focused setups with support for front and roof radiators or additional fans

Key specifications

• Form factor: Micro Tower compatible with Micro-ATX and Mini-ITX motherboards

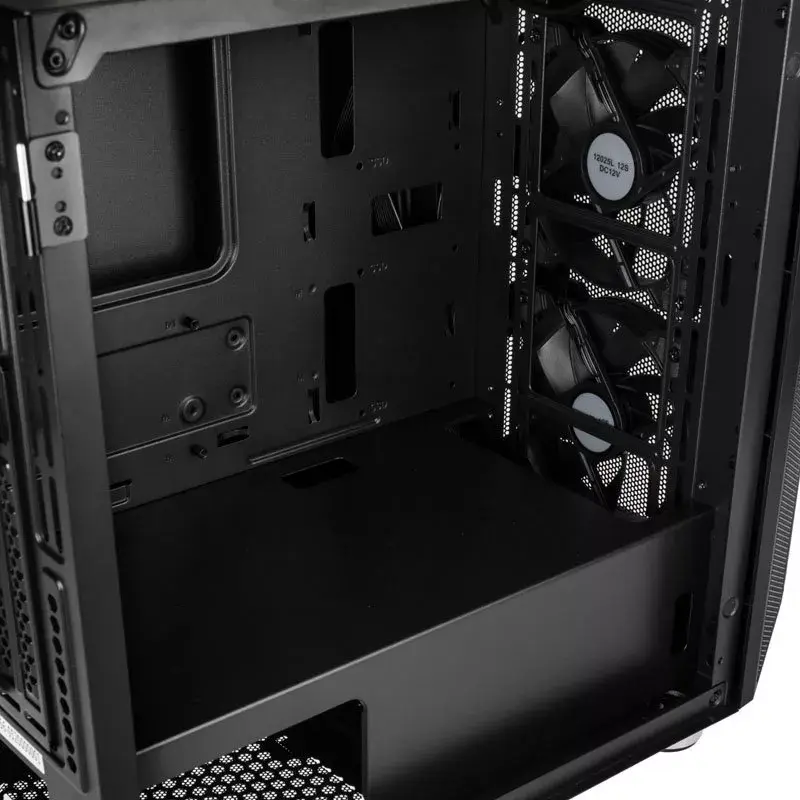

• Pre-installed cooling: two 120 mm PWM front fans
• Fan support: additional two 120 mm on roof and one 120 mm rear
• Radiator support: front up to 280 mm, roof up to 240 mm
• Drive bays: support for up to two 3.5" drives and three 2.5" drives
• Expansion: graphics card clearance up to 345 mm (320 mm with front AIO)
• CPU cooler clearance: up to 190 mm

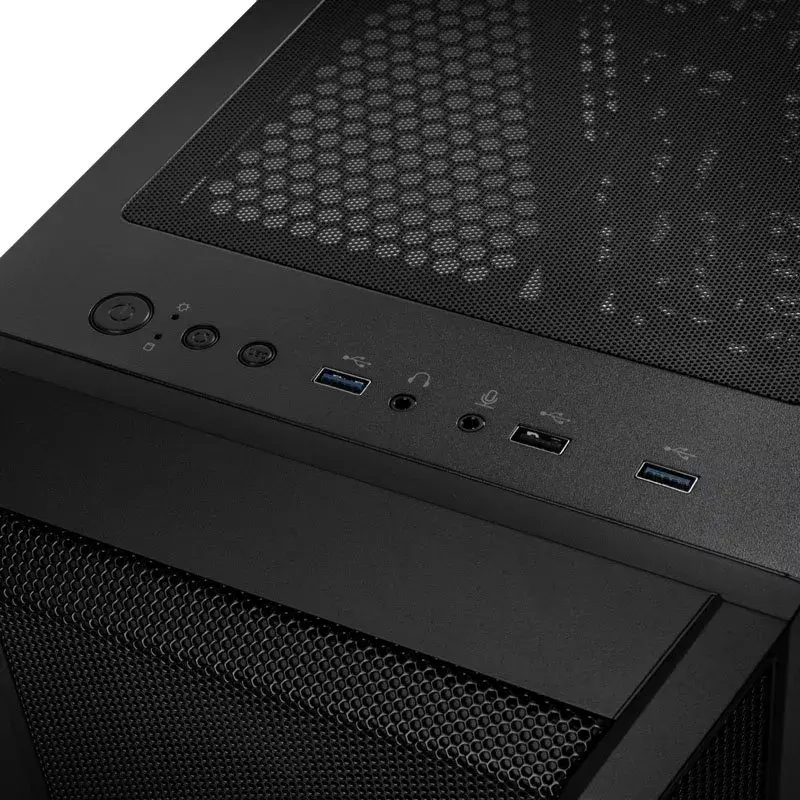

• Front I/O: two USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports
• Materials: tempered glass side panel, steel chassis, mesh front and plastic trims
• External dimensions (W×D×H): 230 mm × 400 mm × 375 mm
• Weight: approximately 5.3 kg

How to use

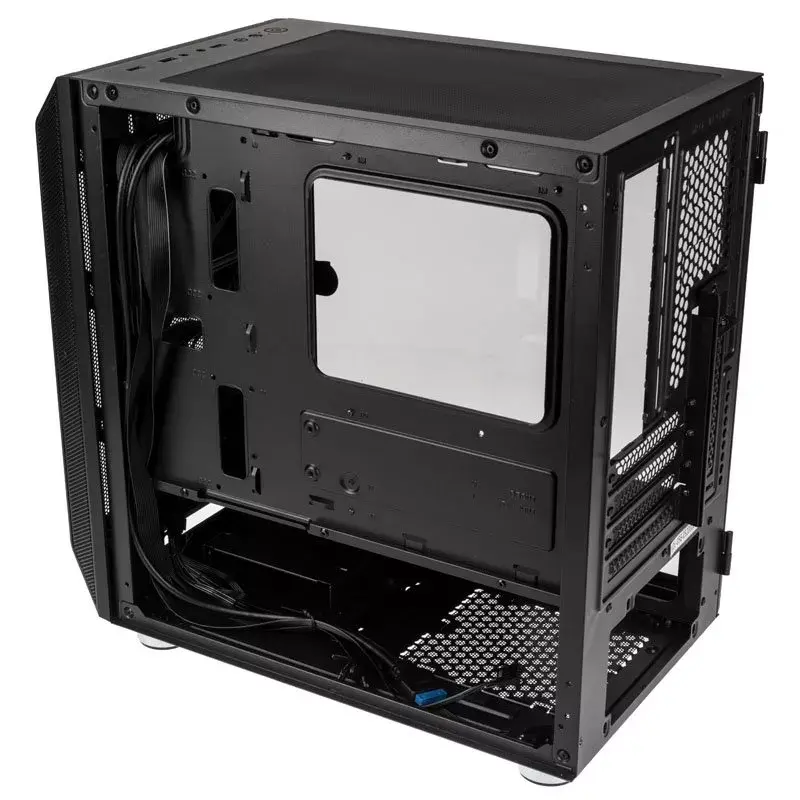

Install a Micro-ATX or Mini-ITX motherboard and secure the power supply in the PSU compartment, observing the recommended orientation and verifying the PSU depth allowance. Mount storage drives in the provided 3.5" cage or 2.5" mounts next to the motherboard as required. Connect the pre-installed front fans to available motherboard PWM headers to enable automatic speed control, and route cables through the tray openings and behind the PSU shroud to maintain airflow. If installing liquid cooling, fit a front 280 mm radiator or a roof 240 mm radiator according to clearance specifications and ensure dust filters are in place before powering the system.

Recommendations

To maintain optimal cooling and reduce dust buildup, check and clean the front and bottom dust filters regularly, use the PWM fan headers for automatic control, and plan cable routing to preserve unobstructed airflow from the mesh front to the rear exhaust.
