Caixa de terminação FTTH LOGILINK FB1007, 4 portas, montagem na parede ou em calha DIN, branco

Fiber-to-the-home installations often struggle with the transition from outdoor drop cables to indoor optical cabling, risking damage to delicate splices and creating messy fiber routing. The LOGILINK FTTH Termination Box FB1007 addresses these challenges by providing a compact, robust enclosure that supports up to four fiber connections, includes an integrated splice tray for fusion or mechanical splices, and offers flexible wall or DIN rail mounting—all in a clean white ABS housing.

Who is it for

This termination box is ideal for telecom installers, network technicians, and DIY enthusiasts setting up FTTH or FTTx networks in residential or small office environments. It suits anyone needing a reliable indoor fiber termination point that is easy to install and maintain.

Main features

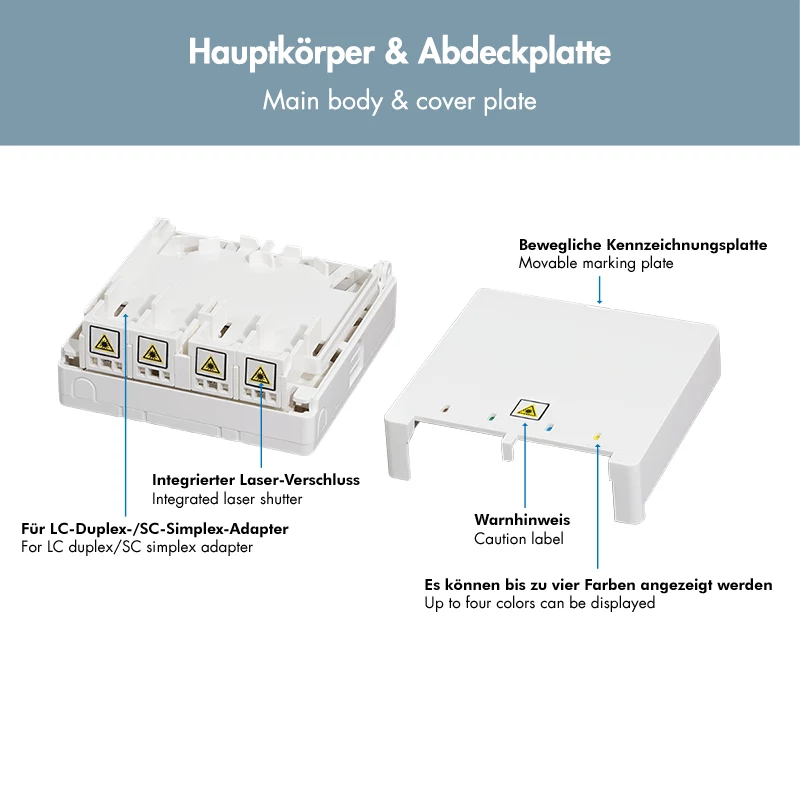

• Supports up to 4 fibers with SC simplex or LC duplex adapters (adapters not included)

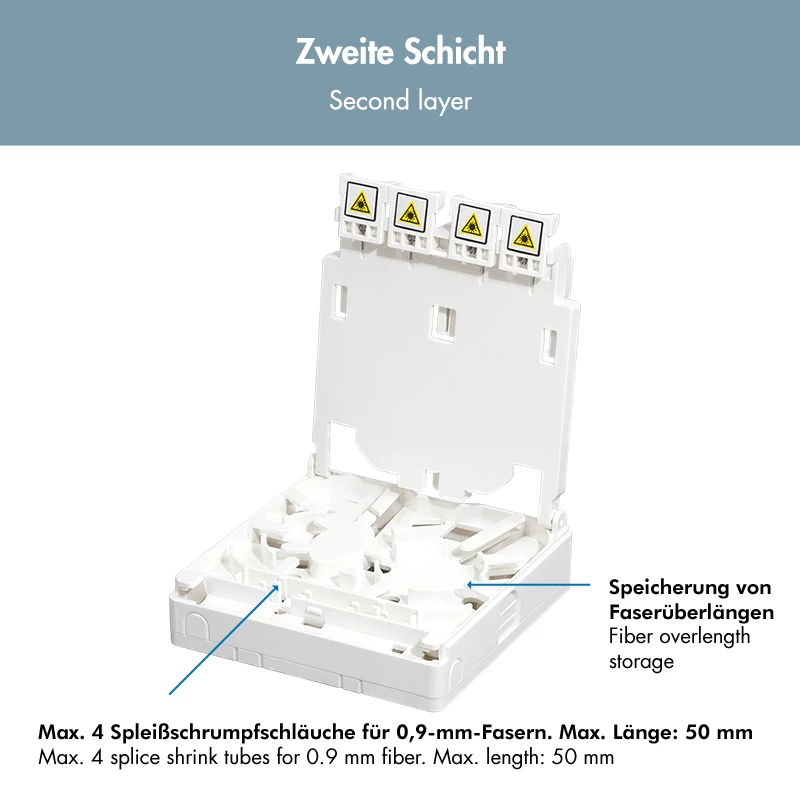

• Integrated splice tray for fusion or mechanical splices, with space for up to 4 splice protectors
• Flexible mounting: wall mount or DIN rail mount (DIN rail clip included)
• Durable white ABS plastic housing with IP20 rating for indoor use
• Multiple cable entry points for drop cables and indoor fiber cables
• Integrated fiber management for bend radius control
• Compliant with RoHS and CE standards

Specifications

• Product Type: FTTH Termination Box
• Port Capacity: 4 Fibers
• Connector Compatibility: 4x SC Simplex or 4x LC Duplex Adapters
• Mounting Options: Wall Mount, DIN Rail Mount
• Color: White
• Material: ABS Plastic
• Ingress Protection (IP) Rating: IP20
• Application: Fiber to the Home (FTTH), FTTx Networks
• Splice Tray: Integrated, for fusion or mechanical splices
• Cable Entry Points: Multiple (e.g., for drop cables)
• Fiber Management: Integrated for bend radius control
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Number of Splice Protectors: 4 (typically included)
• Cable Type Support: Drop cable, indoor fiber cable
• Installation Environment: Indoor
• Standards Compliance: RoHS, CE

Tips

For a neat installation, use the integrated fiber management guides to maintain proper bend radius and prevent signal loss. If mounting on a DIN rail, ensure the clip is securely fastened to avoid vibration. Always keep the cover closed when not working on splices to protect against dust.
