Câmara de videovigilância IP turret Hikvision Pro Series DS-2CD2H66G2H-IZSY 2,8–12 mm, 3200×1800, exterior, montagem em teto/parede

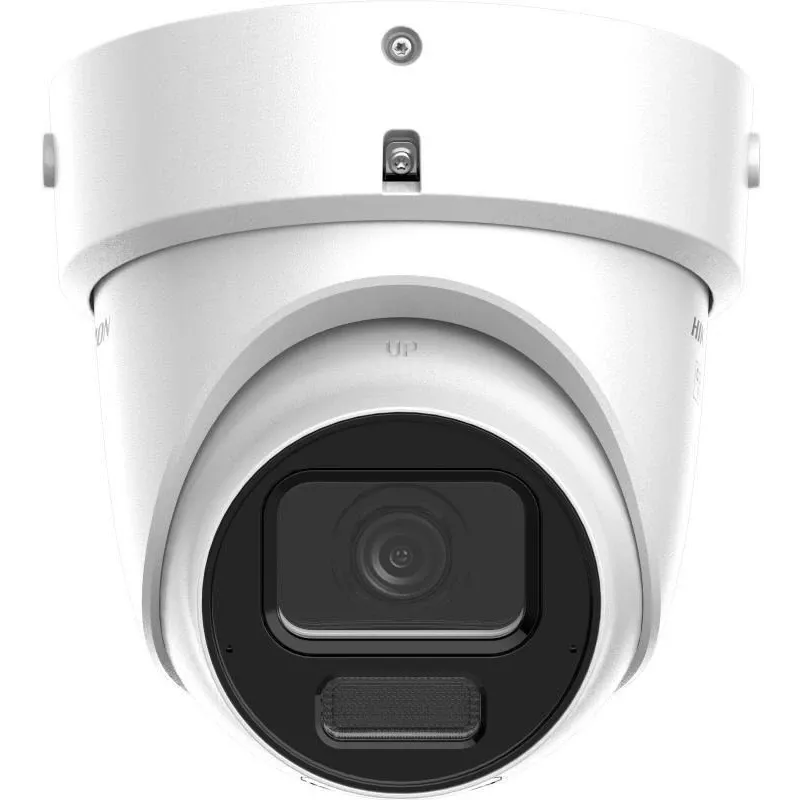

Hikvision Pro Series DS-2CD2H66G2H-IZSY is a turret-form IP security camera designed for outdoor ceiling or wall mounting. It captures up to 3200×1800 resolution at 30 fps using a 1/1.8" CMOS sensor and features a motorized/manual 2.8–12 mm varifocal lens with a horizontal viewing angle from 112.3° to 41.2°. The camera supports wired Ethernet connectivity and offers 360° rotation in its mount, making it suitable for perimeter and property surveillance. Built-in video motion detection, advanced image processing and rugged environmental protection allow continuous operation in exposed locations.

Advantages

The DS-2CD2H66G2H-IZSY combines a high-resolution 6 MP sensor with a motorized varifocal lens to provide flexible field-of-view adjustment without physical lens changes. Hardware and software features such as wide dynamic range (WDR), efficient H.265+ compression and deep-learning–based person and vehicle classification help improve detection accuracy while reducing storage and bandwidth requirements. The housing is engineered for outdoor use with IP67 dust/water resistance, IK10 vandal resistance and anti-corrosion treatment for reliable long-term performance.

Suitable for

• Perimeter and property surveillance for residential compounds and business premises
• Entranceways, driveways and parking areas where person and vehicle detection are required
• Outdoor ceiling or wall installations exposed to weather and potential vandalism

Key specifications

• Image sensor: 1/1.8" CMOS, up to 6 MP (3200×1800) at 30 fps
• Lens: Motorized/manual varifocal 2.8–12 mm, horizontal angle 112.3°–41.2°
• Compression: H.265+ (efficient video compression)
• Low-light and color performance technologies integrated (ColorVu 3.0 compatible features)
• Smart features: Video motion detection, person and vehicle classification (deep learning)
• Wide dynamic range: 120 dB WDR for challenging lighting conditions
• Networking: Wired Ethernet LAN connectivity
• Environmental protection: IP67 ingress protection, IK10 vandal resistance, NEMA 4X anti-corrosion design
• Mounting: Ceiling or wall mount, turret form factor with 360° rotation capability
• Physical: Product colour white, weight approximately 1.24 kg

How to use

Mount the camera on a suitable ceiling or wall bracket and connect it to a PoE-capable Ethernet switch or injector to provide power and network connectivity. Use the motorized varifocal lens to set the desired focal length and field of view remotely via the camera web interface or supported NVR software; perform fine focusing after framing. Configure video stream settings, motion detection zones and smart detection parameters in the device menu to suit the monitored area. Ensure firmware is up to date and integrate the camera into your recording and monitoring system according to network and storage requirements.

Recommendations

For reliable outdoor surveillance, install the camera under a small protective overhang where possible, align the lens to cover primary approaches and adjust motion detection sensitivity to reduce false alarms from foliage or traffic. Use H.265+ compression and appropriate bitrate settings to balance image quality and storage use. Regularly inspect seals and mounting hardware and update firmware to maintain security and performance.
