Câmara de vigilância DAHUA HAC-HFW1200TH-I8A0360BS6 HDCVI 1080P IR Bullet

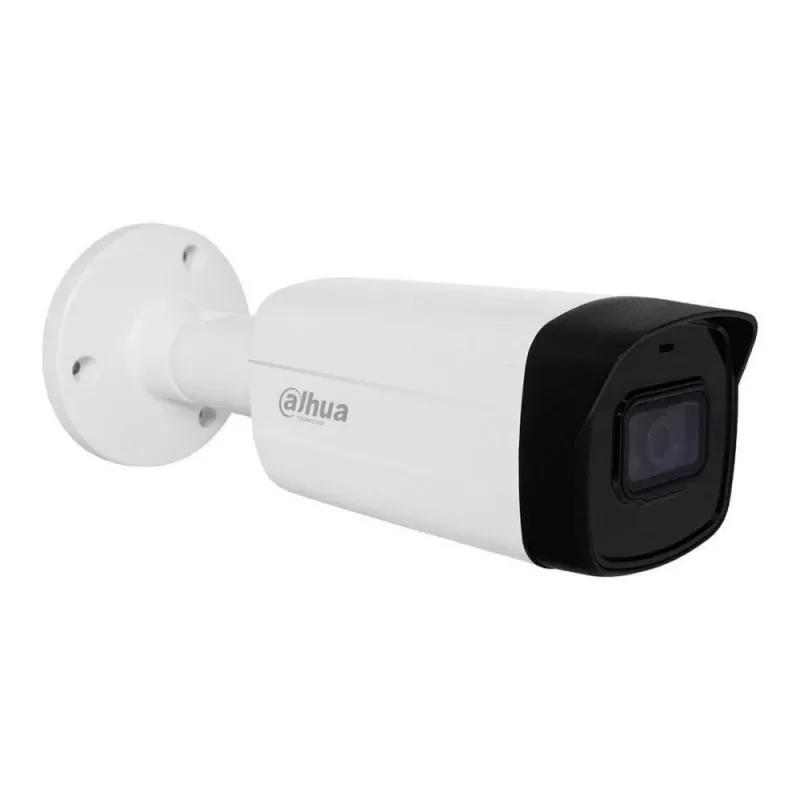

DAHUA HAC-HFW1200TH-I8A0360BS6 is an outdoor HDCVI 1080P IR bullet surveillance camera with a 3.6mm fixed lens (M12 mount), 1920 × 1080 effective pixels and low-light sensitivity down to 0.001 Lux. It supports electronic shutter speeds up to 1/100000 s and requires a 12 VDC ±30% power supply; housing dimensions are 240.7 × 90.7 × 90.4 mm.

Advantages

The camera provides high-definition 1080P HDCVI video transmission and integrated infrared illumination for night monitoring. Its outdoor-ready housing and standard M12 lens mount offer straightforward installation and reliable operation in exterior environments. Low minimum illumination ensures useful image capture in very low light conditions.

Suitable for

• Residential perimeter and driveway monitoring
• Small-to-medium commercial premises and storefront surveillance
• Parking lots and outdoor common areas
• Integration with HDCVI recording systems

Key specifications

• Type: Outdoor, bullet
• Video interface: HDCVI
• Resolution: 1920 (H) × 1080 (V) (1080P)
• Focal length: 3.6 mm (M12 mount)
• Minimum illumination: 0.001 Lux
• Electronic shutter speed: PAL 1/25 s–1/100000 s; NTSC 1/30 s–1/100000 s
• Power supply: 12 VDC ± 30%
• Dimensions: 240.7 × 90.7 × 90.4 mm

How to use

Install the camera in an outdoor location with a clear field of view, mount using suitable fasteners for the housing, and connect to an HDCVI-compatible DVR using coaxial cable and power it with a 12 VDC supply within the specified tolerance. Adjust the fixed 3.6 mm lens orientation to frame the scene, then configure the recorder or monitoring software for 1080P capture and required exposure settings.

Recommendations

For reliable long-term operation, use weatherproof cable glands and ensure the power supply provides stable 12 VDC within ±30%. Mount the camera to avoid direct, continuous exposure to heavy spray or debris; clean the lens periodically to maintain image clarity. For best integration, pair with a compatible DAHUA HDCVI DVR.
