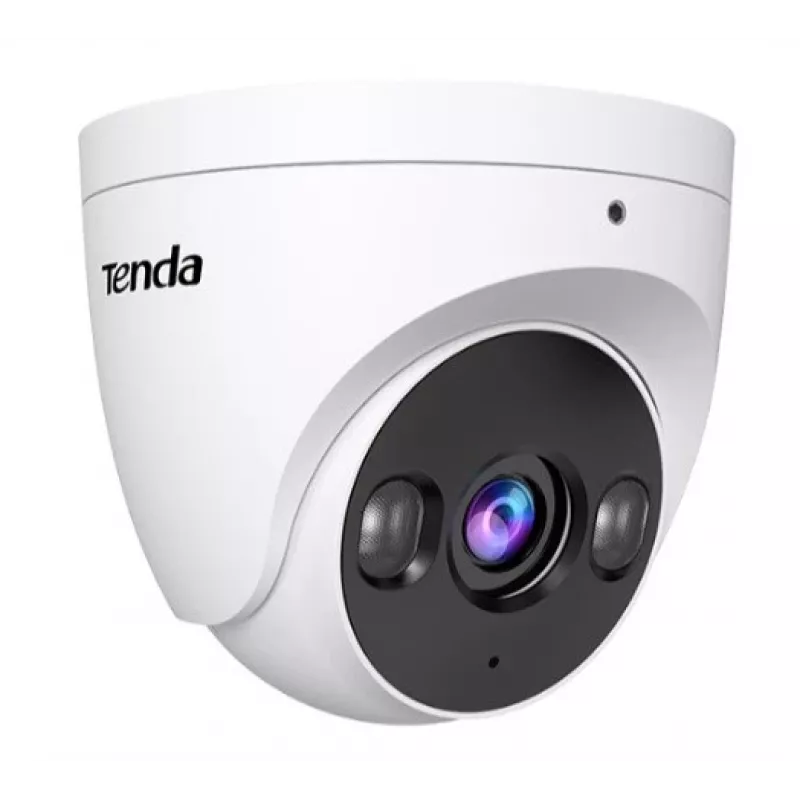

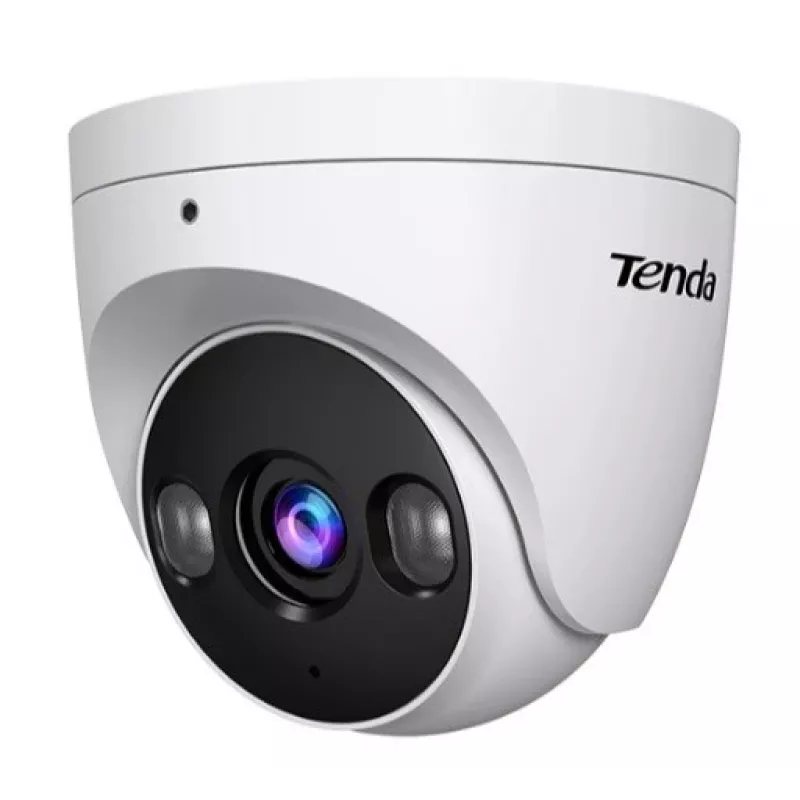

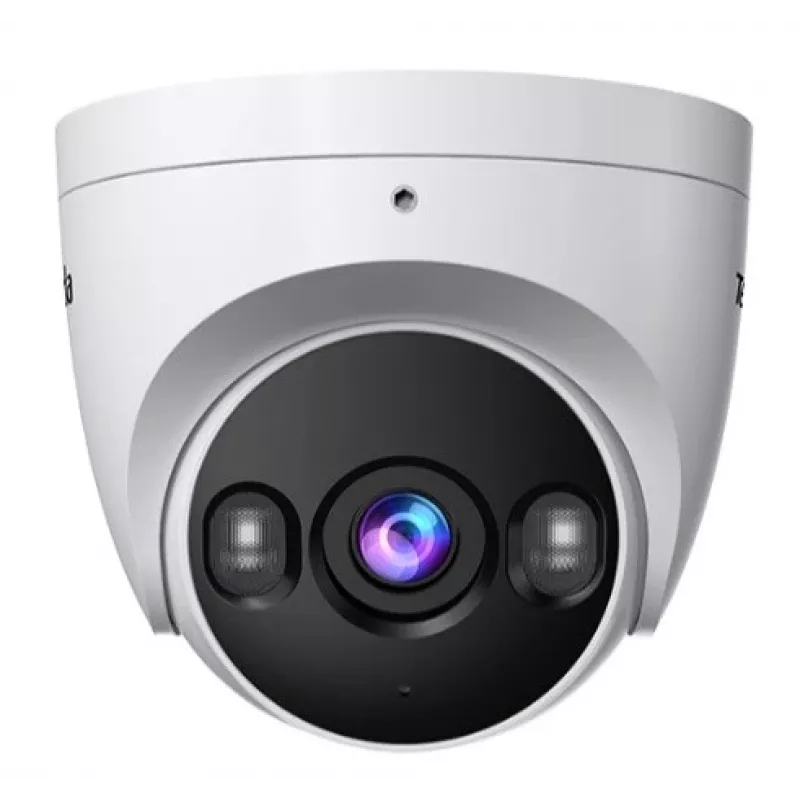

Câmara de vigilância dome TENDA TC3T24C 2,8 mm, 2,56 MP (2560×1440), 30 fps, WDR, IR 30 m, PoE/12 V DC

Wired dome surveillance camera TENDA TC3T24C with a 2.8 mm fixed lens offers 2.56 MP (2560×1440) resolution at 30 fps. The camera uses a CMOS progressive sensor, supports day/night mode and WDR/DWDR, and includes IR illumination up to 30 m. It provides wired connectivity via 100 Mbps Ethernet (RJ-45) with ONVIF support and can be powered by 12 V DC (1 A) or PoE. The compact white dome housing is suitable for desk or ceiling mounting and is rated for outdoor placement within an operating temperature range of −40 to 60 °C and relative humidity of 10–95%.

Advantages

The TENDA TC3T24C combines 2.56 MP resolution and a wide 97.3° diagonal viewing angle with WDR and human-detection IVS to deliver clear daytime and low-light images. Infrared LEDs extend night vision up to 30 m, while ONVIF and standard Ethernet ensure compatibility with network recorders and third-party systems. The camera’s compact dome form, outdoor rating, and included power adapter and mounting accessories simplify installation.

Suitable for

• Small business and retail surveillance
• Home outdoor and indoor monitoring
• Office common areas and entrances

Key specifications

• Image sensor: CMOS, progressive scan, 2.56 MP
• Maximum resolution: 2560 × 1440 pixels at 30 fps
• Lens: 2.8 mm fixed focal length, maximum aperture f/1.6; diagonal view 97.3°
• Day/night functionality with IR illumination up to 30 m
• Wide Dynamic Range (WDR/DWDR) and video motion detection with human detection IVS
• Connectivity: 100 Mbps Ethernet (RJ-45), wired; ONVIF compliant
• Power: 12 V DC, 1 A (AC adapter included); supports PoE
• Dimensions (W×D×H): 80 × 76 × 80 mm; weight: 307 g
• Operating conditions: −40 to 60 °C; relative humidity 10–95%
• Audio: built-in microphone, mono
• Pan/tilt range: pan 0–360°, tilt 0–78°

How to use

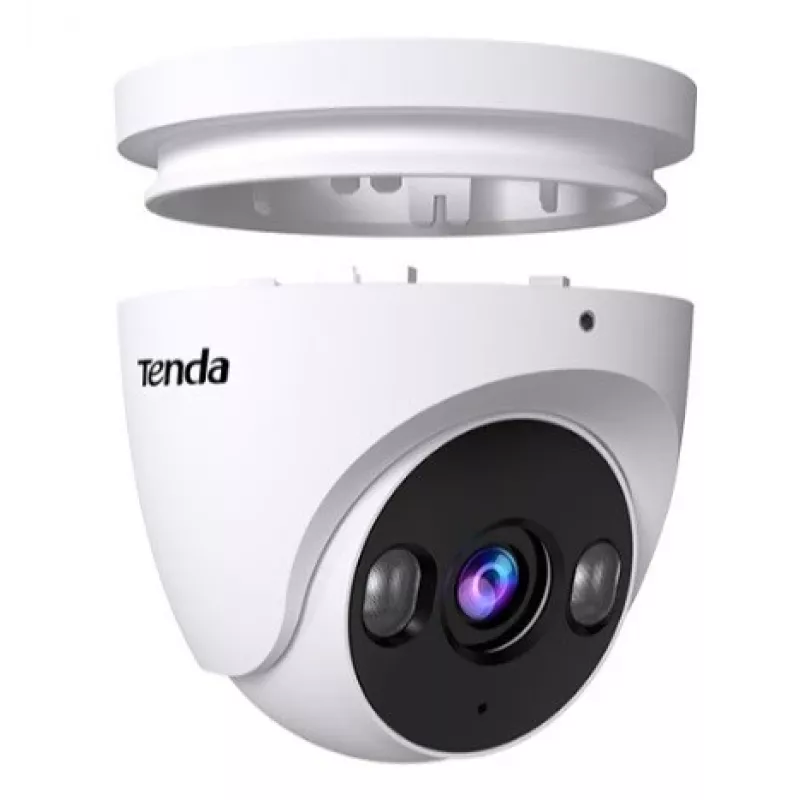

Mount the dome camera on a ceiling or desk using the included drilling template and screws. Connect the camera to your network with a Cat5/Cat5e/Cat6 Ethernet cable to the RJ-45 port for data and, if available, PoE power; alternatively, connect the supplied AC adapter to the 12 V DC input. Use an ONVIF-compatible NVR or software to discover and add the camera, configure resolution and frame rate (up to 2560×1440 at 30 fps), enable WDR and IVS human detection as needed, and set recording or streaming preferences.

Recommendations

For reliable night and outdoor performance, position the camera to avoid direct exposure to strong light sources and ensure the IR LEDs have a clear line of sight. Use a stable 100 Mbps network connection and an ONVIF-compatible recorder or VMS for best interoperability. Dispose of electronic components following local regulations (RoHS compliant).
