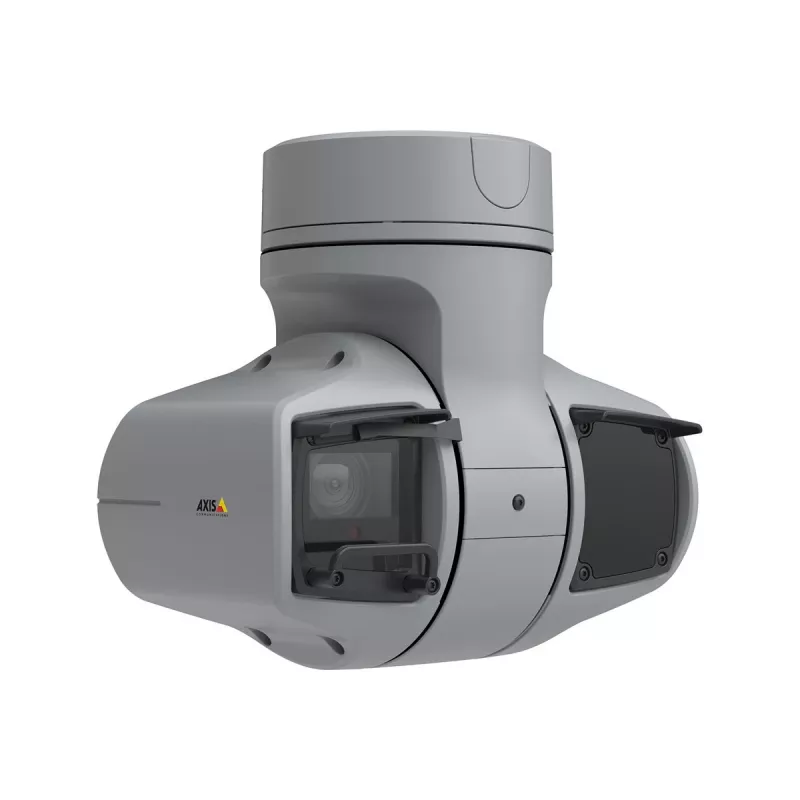

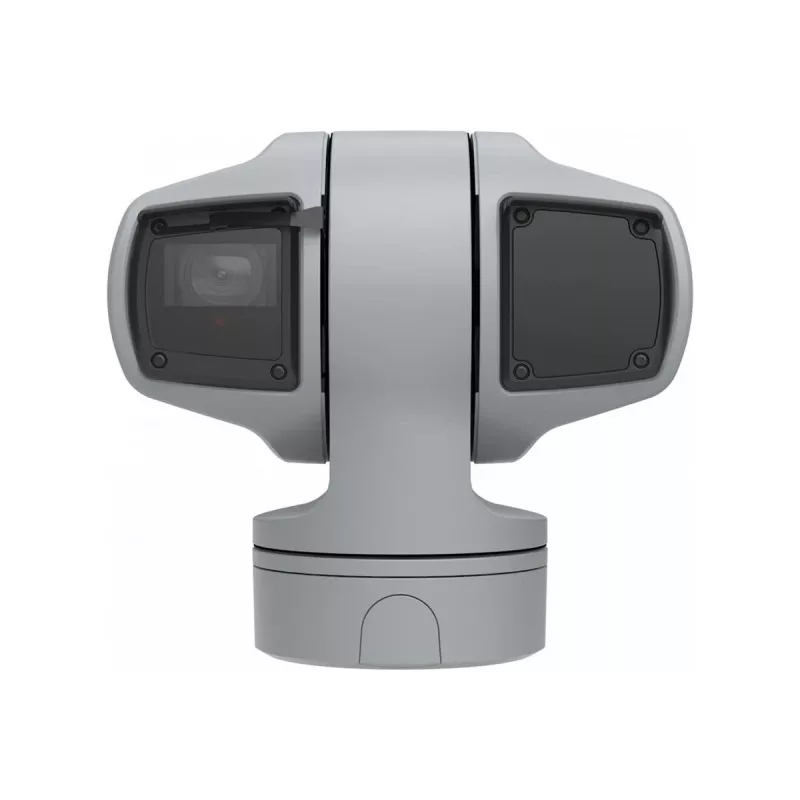

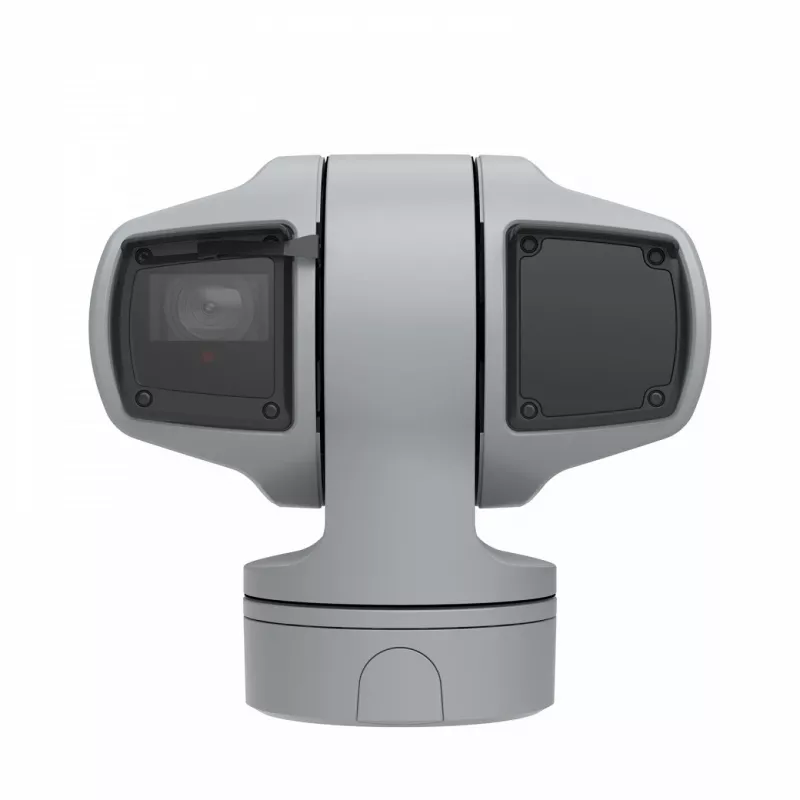

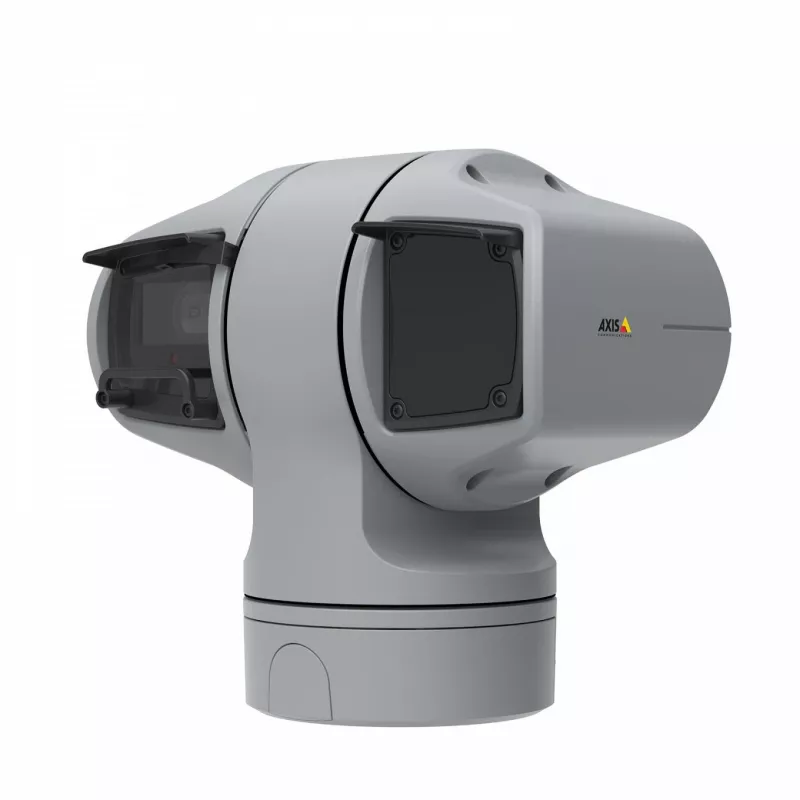

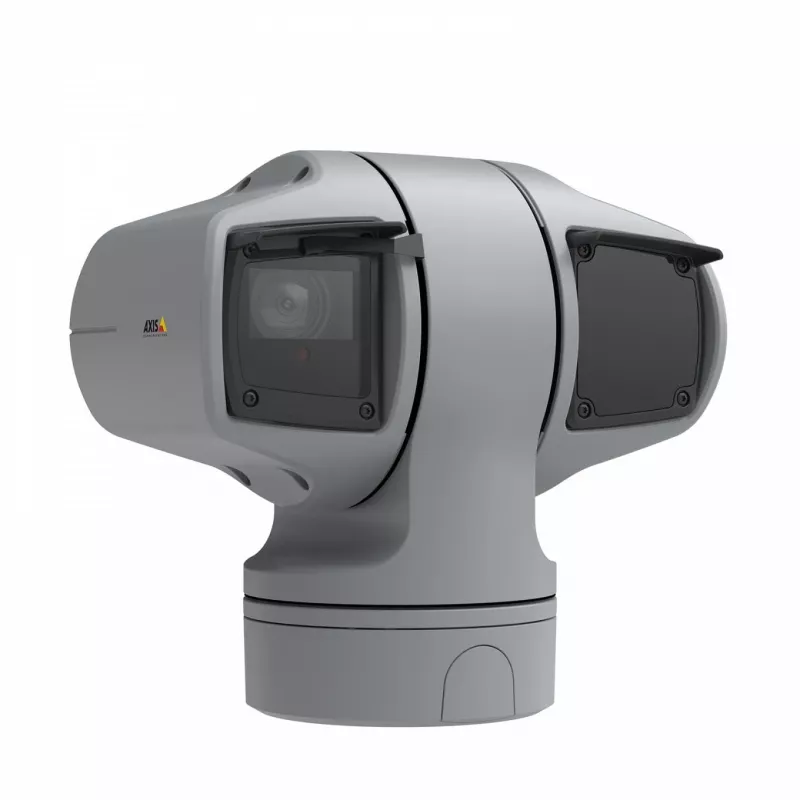

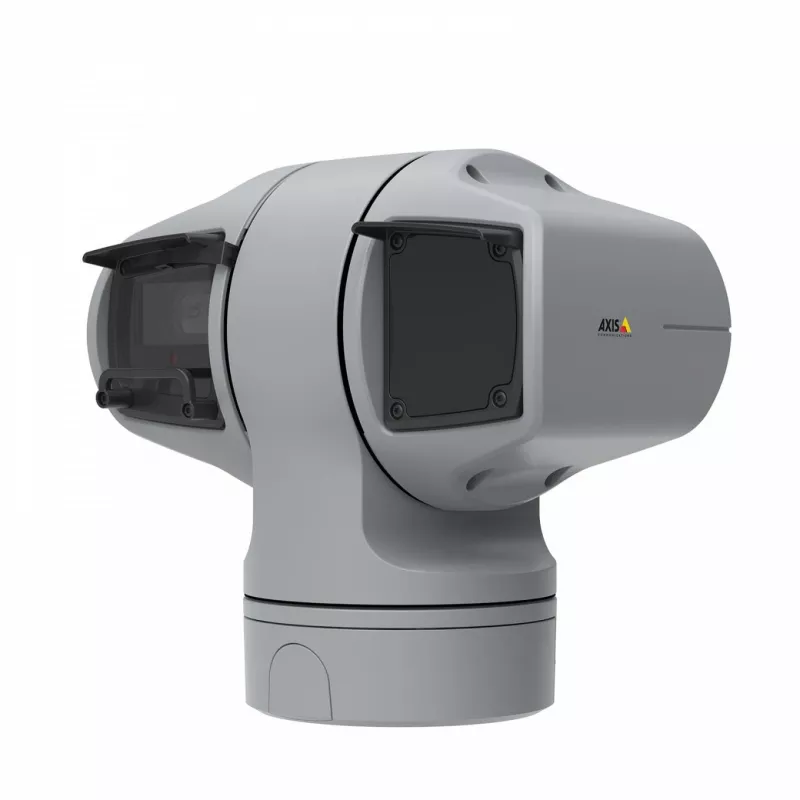

Câmara de vigilância IP Axis 02316-002 1920 x 1080 píxeis exterior

The AXIS 02316-002 is a heavy-duty outdoor IP security camera providing 1920 x 1080 HDTV resolution with a 1/2" CMOS sensor and 31x optical zoom. Built for demanding environments, the unit meets MIL-STD-810G and is IK10 vandal-resistant. It is weatherproof and rated to withstand wind speeds up to 245 km/h (150 mph). The camera includes Lightfinder, Forensic WDR and OptimizedIR technologies for clear images across a wide range of lighting conditions, and comes with preinstalled analytics. Zipstream with H.264/H.265 reduces bandwidth and storage requirements while preserving image detail.

Advantages

The camera combines high-resolution 1080p imaging with a long-range 31x optical zoom for detailed surveillance at distance. Rugged construction and MIL-STD-810G compliance ensure reliable operation in extreme weather and impact-prone locations, and IK10 rating adds vandal resistance. Low-light performance is improved by Lightfinder and Forensic WDR, while OptimizedIR supports night imaging. Integrated analytics simplify event detection, and Zipstream with H.264/H.265 lowers network and storage load without sacrificing image quality.

Suitable for

• Perimeter and facility surveillance for industrial sites
• Transportation hubs and outdoor public spaces
• High-risk or exposed locations requiring vandal- and weather-resistant equipment
• Long-range monitoring where optical zoom and high frame rates are needed

Key specifications

• Resolution: 1920 x 1080 (HDTV 1080p)
• Sensor: 1/2" CMOS
• Optical zoom: 31x; Digital zoom: 12x
• Frame rate: up to 50 fps
• Minimum illumination: 0.05 lx
• Horizontal viewing angle: 63.8°; Vertical viewing angle: 37°
• Vandal resistance: IK10; Meets MIL-STD-810G
• Weather resistance: rated for wind speeds up to 245 km/h (150 mph); outdoor placement
• Connectivity: wired Ethernet (no Wi‑Fi)
• Video codecs: H.264, H.265 with Zipstream
• Built-in analytics and video motion detection
• Mounting: wall mount; Colour: grey; Weight: 8.7 kg

How to use

Install the camera on a suitable outdoor wall mount following local mounting and wiring regulations. Connect the unit to your wired Ethernet network and provide power as specified by the manufacturer. Use the camera’s web interface or supported VMS to configure resolution, frame rate, zoom presets and analytics rules. Adjust OptimizedIR and WDR settings for the prevailing lighting conditions. Test optical zoom presets and verify that alerts and motion detection behave as required before leaving the system in continuous operation.

Recommendations

Position the camera to minimize direct exposure to strong glare sources and maintain clear sightlines for the 31x zoom. Schedule periodic cleaning and inspection to preserve weather sealing and optical performance; verify firmware and analytics updates to keep detection reliable and secure.
