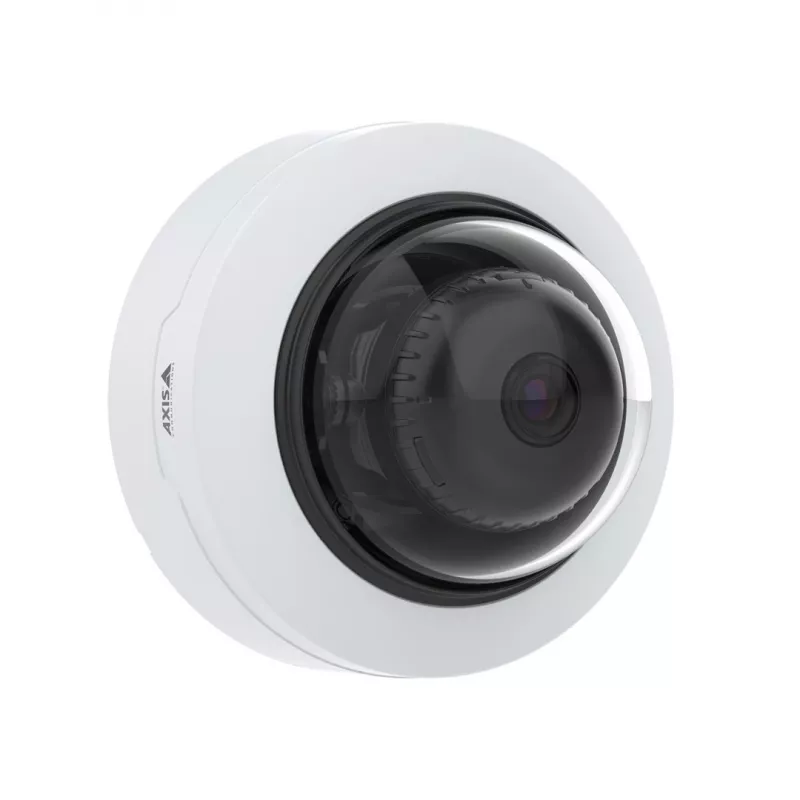

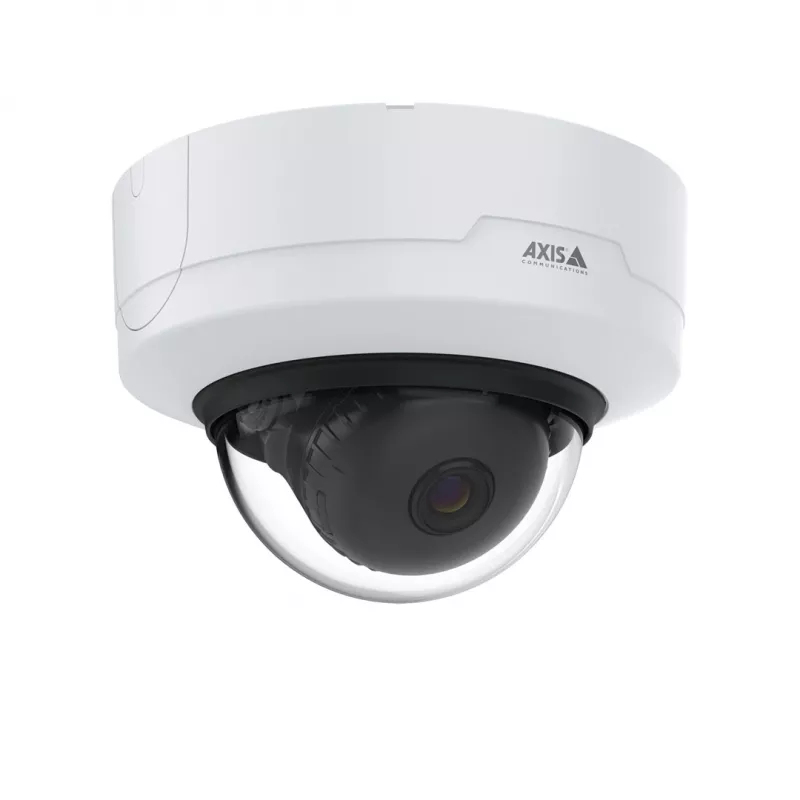

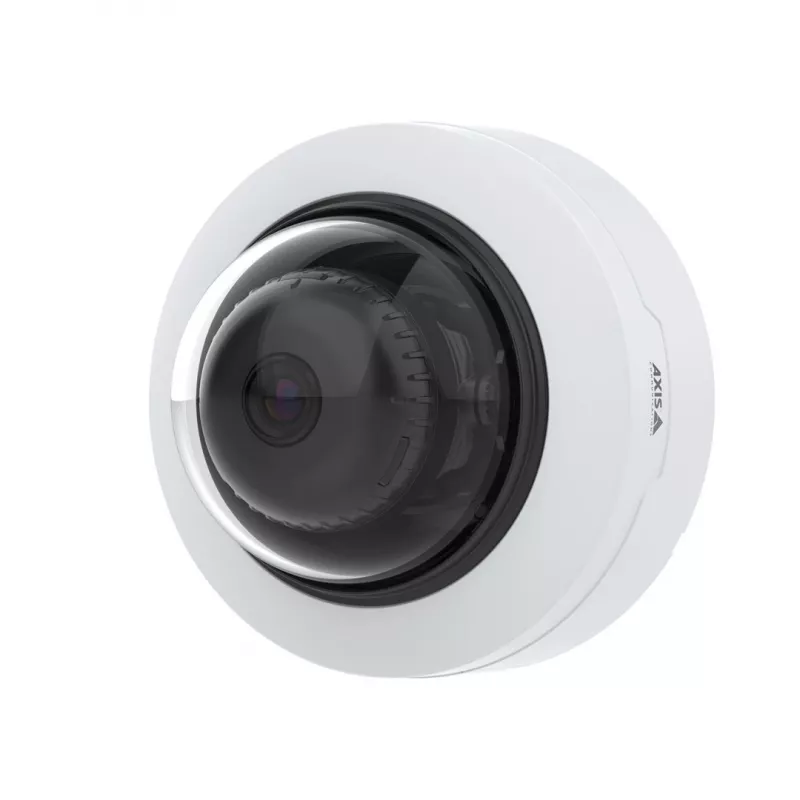

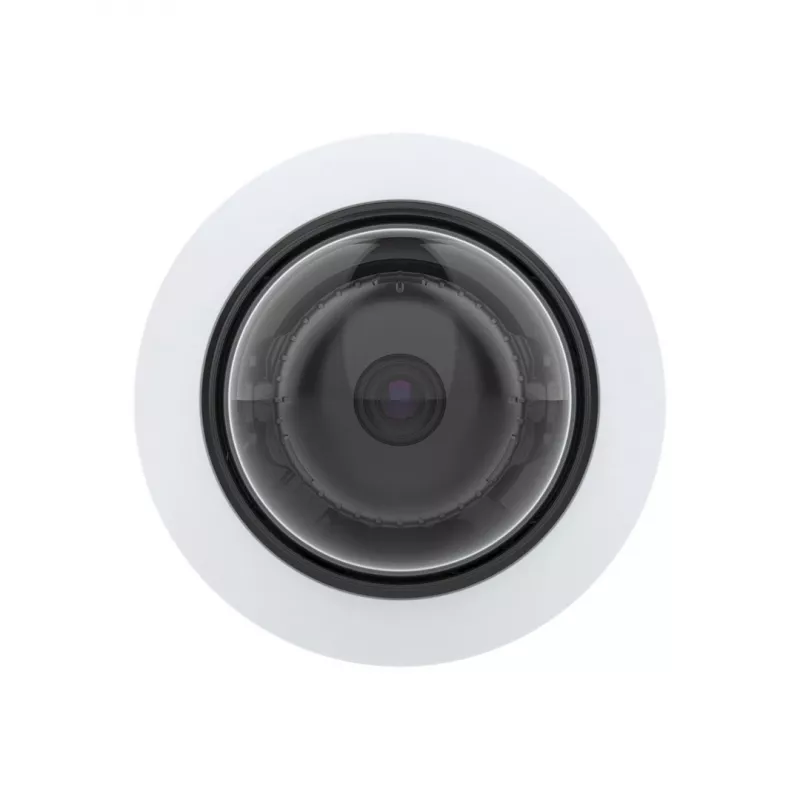

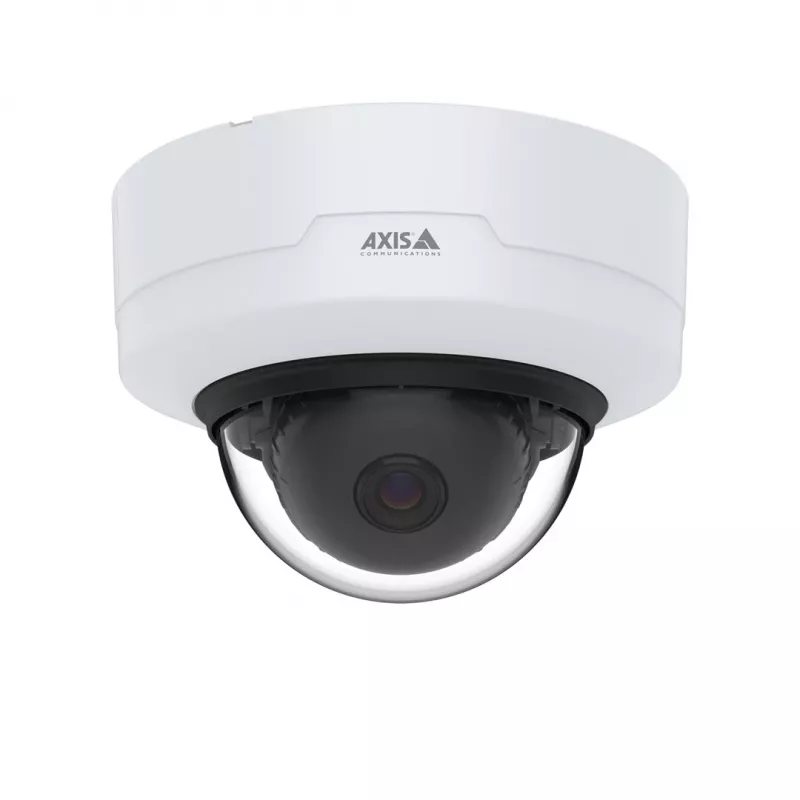

Câmara de vigilância IP Axis 02326-001 Dome 1920 x 1080

The AXIS 02326-001 is an IP security dome camera with 1920 x 1080 resolution designed for indoor and outdoor surveillance. It combines Lightfinder 2.0 and Forensic WDR to provide clear images in difficult lighting, and is built on Axis's latest system-on-chip which includes a deep learning processing unit for edge analytics.

Advantages

This AXIS P3265-V model provides reliable detection and classification of humans and vehicles using AXIS Object Analytics and supports advanced, on-edge deep learning features. The dome form factor enables discreet ceiling or wall installation. The camera is rugged with an IK10 rating and includes built-in cybersecurity, audio and I/O connectivity for system integration, and wired Ethernet for network connection.

Suitable for

• Retail and commercial premises surveillance
• Parking lots and vehicle monitoring
• Building entrances and corridors
• Indoor public spaces and outdoor perimeters

Key specifications

• Resolution: 1920 x 1080 (Full HD)
• Sensor type: CMOS
• Focal length: 3.4–8.9 mm
• Minimum illumination: 0.1 lx
• Frame rate: up to 60 fps
• Pan/tilt range: rotation 175°, tilt -75° to 75°
• Mounting: ceiling or wall
• Connectivity: wired Ethernet (no Wi‑Fi)
• Weight: 0.65 kg
• Color: White

How to use

Install the dome camera on a suitable ceiling or wall mount and connect it to the network via Ethernet. Configure basic settings through the Axis management interface or supplied software, including resolution, frame rate and WDR options. Enable AXIS Object Analytics and the built-in deep learning features as required, and connect audio or I/O devices if integration with alarms or intercoms is needed. Ensure firmware and cybersecurity settings are up to date before commissioning.

Recommendations

Place the camera where the field of view covers key access points and vehicle lanes; adjust focal length and tilt to balance wide coverage with necessary detail. For best low-light performance, rely on Lightfinder 2.0 and enable Forensic WDR. Use wired Ethernet and secure network practices to maintain reliable connectivity and security.
