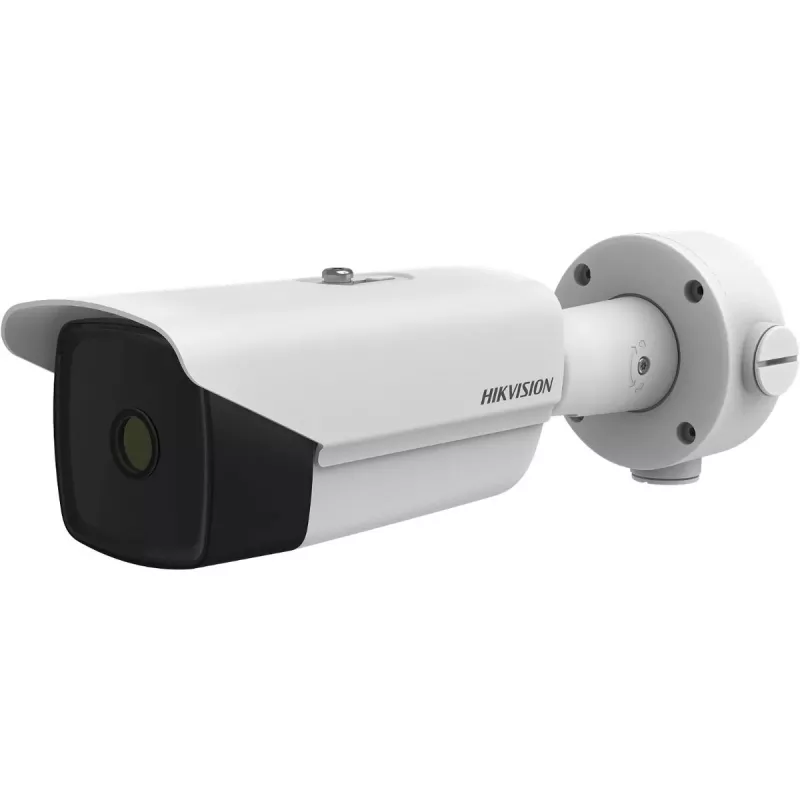

Câmara de vigilância IP bullet Hikvision DS-2TD2138-10/QY exterior 1280 x 720 píxeis

Hikvision DS-2TD2138-10/QY Anti-Corrosion Thermal Network Bullet Camera is an outdoor IP security camera designed for perimeter defense and fire-prevention monitoring in critical infrastructures such as airports, railways, prisons, power stations and retail service centers. The camera integrates a vanadium oxide uncooled thermal sensor with an effective thermal resolution of 384 × 288 pixels and a thermal module field of view of 26° × 20°, providing thermal imaging and long-range detection up to 1239 meters. The unit is finished with an anti-corrosion coating and is supplied in white for wall-mounted outdoor installation with wired Ethernet connectivity.

Advantages

The camera provides thermal imaging using a vanadium oxide uncooled focal plane sensor, improving contrast and object detection in low-visibility conditions. Its anti-corrosion coating allows deployment in corrosive outdoor environments. Built for outdoor wall mounting, the model supports wired Ethernet for stable network connection and offers 8× digital zoom for closer inspection of detected targets.

Suitable for

• Perimeter surveillance of airports and railway facilities
• Fire-prevention monitoring in power stations and industrial sites
• Security monitoring of prisons and critical infrastructure
• Outdoor monitoring of service centres and retail locations

Key specifications

• Model: Hikvision DS-2TD2138-10/QY
• Sensor type: Vanadium oxide uncooled thermal sensor (effective resolution 384 × 288)
• Thermal FOV: 26° × 20°
• Optical resolution (visible): 1280 × 720 pixels
• Detection range: up to 1239 m
• Digital zoom: 8×
• Mounting: Wall
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Placement: Outdoor
• Color: White
• Weight: 1.77 kg

How to use

Mount the camera on a suitably rated outdoor wall bracket at the required height and angle to cover the perimeter or area of interest. Connect the unit to a stable wired Ethernet network for power and data according to the installer manual and configure the thermal detection parameters and alarm thresholds via the Hikvision management software or compatible VMS. Adjust the digital zoom and field of view in the device interface to optimize detection and monitoring ranges.

Recommendations

Install the camera with clear lines of sight and away from direct heat sources to avoid false alarms. For long-range detection, position the camera to minimize obstructions and perform regular maintenance checks on the anti-corrosion coating and mounting hardware.
