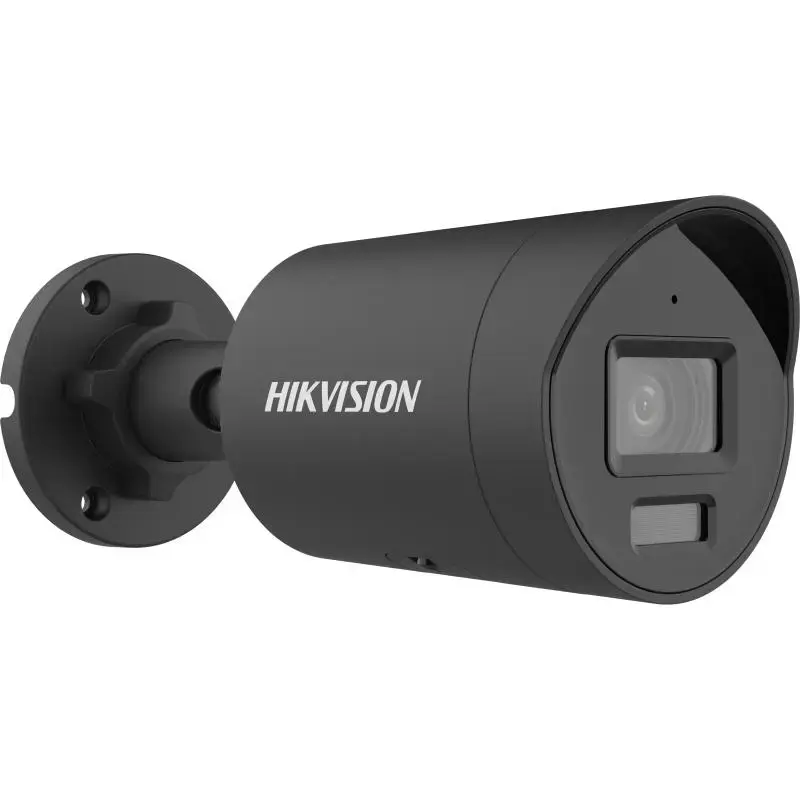

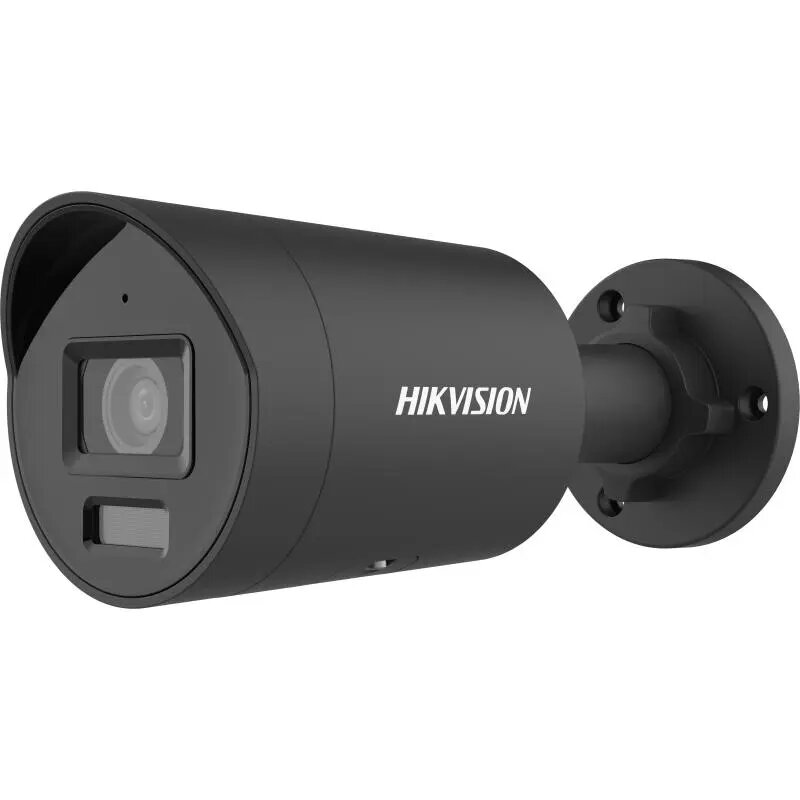

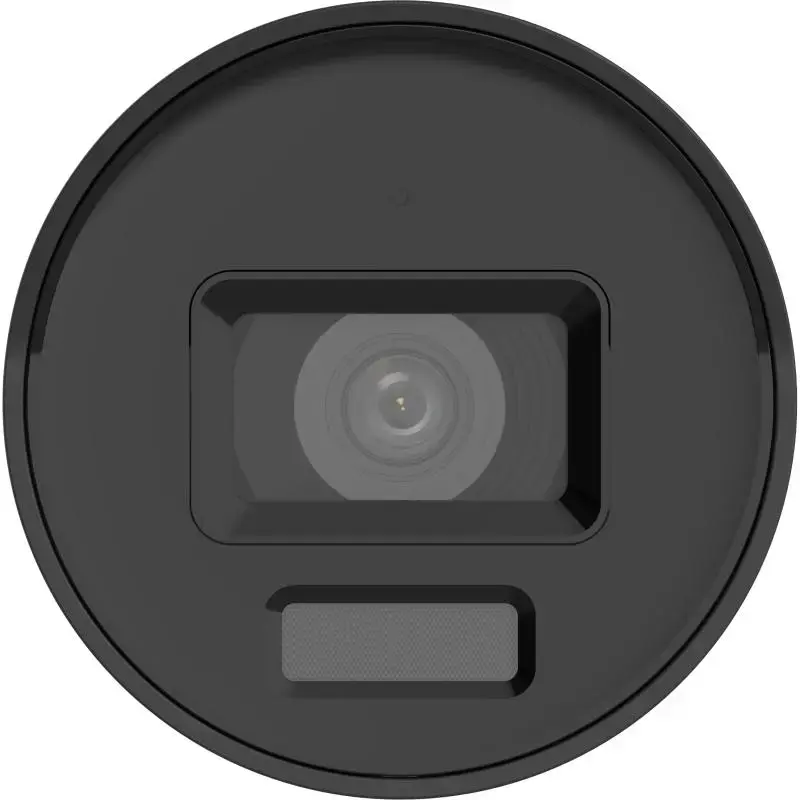

Câmara de vigilância IP Hikvision Pro Series DS-2CD2047G2H-LIU(2.8mm) exterior 2688x1520

Modelis: DS-2CD2047G2H-LIUeF, 2.8mm, juodos spalvos MP (MegaPixel): 4 MP Objektyvas: 2.8 mm, horizontalus FOV: 104° Technologija: Hybrid Light Integruotas mikrofonas: Taip Naktinis pašvietimas: 40 m. IR; 40 m. LED Vieta microSD talpai: Taip, 512GB Darbo sąlygos: -30 °C iki 60 °C Saugos lygis: IP67 Vaizdo suspaudimas: H.265+ WiFi: Ne Laikiklis/bazė (papildomai): DS-1280ZJ-XS Lauko/vidaus: Lauko Aprašymas: Kamera • Sensorius: 1/1.8 Progressive Scan CMOS • Maks. rezoliucija: 2688 × 1520 • Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light • Užrakto greitis: 1/3 s to 1/100,000 s • Day & Night: IR cut filter • Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° Lęšis • Lęšio tipas: Fixed focal lens, 2.8mm • Focal Length & FOV: 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7° • Lęšio montavimas: M16 • Rainelės tipas: Fixed • Diafragama: F1.0 • Ryškumo gylis: 2.8 mm: 2.5 m to infinite DORI: 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m Apšvietimas • Papildomo apšviešimo tipas: IR,White Light • Papildomo apšvietimo diapazonas: Up to 40 m • Išmanus papildomas apšvietimas: Yes • IR bangos ilgis: 850 nm Vaizdas • Pagrindinis srautas: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • Antrinis srautas: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) • Trečias srautas: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. • Vaizdo suspaudimas: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. • Vaizdo bitų greitis: 32 Kbps to 8 Mbps • H.264 tipas: Baseline Profile,Main Profile,High Profile • H.265 tipas: Main Profile • Bitų greičio kontrolė: CBR,VBR • Region of Interest (ROI): 1 fixed region for main stream and sub-stream Garsas • Pašalinių garsų šalinimas: -U: Yes • Garso atrankos dažnis: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz • Garso suspaudimas: -U: G.711/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC • Garso bitų greitis: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) Internetas • Protokolai: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP • Tiesioginis vaizdo žiūrėjimas: Up to 6 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP • User/Host: Up to 32 users; 3 user levels: administrator, operator, and user • Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) • Vidinė atmintis: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) • Klientas: iVMS-4200,Hik-Connect,Hik-Central • Naršyklė: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Nuotrauka • Nuotraukos parametrų keitiklis: yes • Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser • Diena/Naktis režimas: Day, Night, Auto, Schedule • Nuotraukų pagražinimas: BLC,HLC,3D DNR • Wide Dynamic Range (WDR): 130 dB • SNR: > /= 52 dB • Privatumo kaukė: 4 programmable polygon privacy masks Sąsaja • Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port • Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB • Įmontuotas mikrofonas: -U: Yes • Perkrovimo mygtukas: Yes Funkcijos • Pagrindinės funkcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception • Sąsaja: Upload to FTP/NAS/ memory card, notify surveillance center, trigger recording, trigger capture, send email • Išmaniosios funkcijos: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)); Scene change detection Išmaniosios funkcijos • Veido atpažinimas: Yes Pagrindinis • Sistemos parametrai: 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W • Medžiaga: Front cover: Metal, body: Metal, bracket: Metal • Dydis: Ø74.4 mm × 179.2 mm (Ø2.9 × 7.1) • Pakuotės dydis: 234 mm × 120 mm × 117 mm (9.2 × 4.7 × 4.6) • Svoris: Approx. 525 g (1.2 lb.) • Svoris su įpakavimu: Approx. 750 g (1.7 lb.) • Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian • Pagrindinės funkcijos: Heartbeat,mirror,password reset via email,pixel counter,anti-banding Patvirtinimai • EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015, RCM: AS/NZS CISPR 32: 2015 • Saugumas: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 • Aplinkosauga: CE-RoHS: 2011/65/EU • Apsauga: IP67: IEC 60529-2013

How to use

Mount the camera in the chosen outdoor location using appropriate fasteners and ensure the housing seals and cable entries are protected from moisture. Connect the camera to PoE or the recommended power source and integrate it into your network using the recorder or VMS that supports ONVIF/Hikvision protocols. Adjust the 2.8 mm lens orientation and use the camera’s 360° rotation alignment capability to set the desired field of view. Configure resolution, recording schedules, and any analytics features within the management software.

Recommendations

For reliable detection and recognition, position the camera at a height and angle that maximizes the view of target areas; use the specified detection (61 m) and recognition (12 m) distances as planning guidelines. Ensure firmware is up to date and configure appropriate encoding settings to balance image quality with storage capacity.
