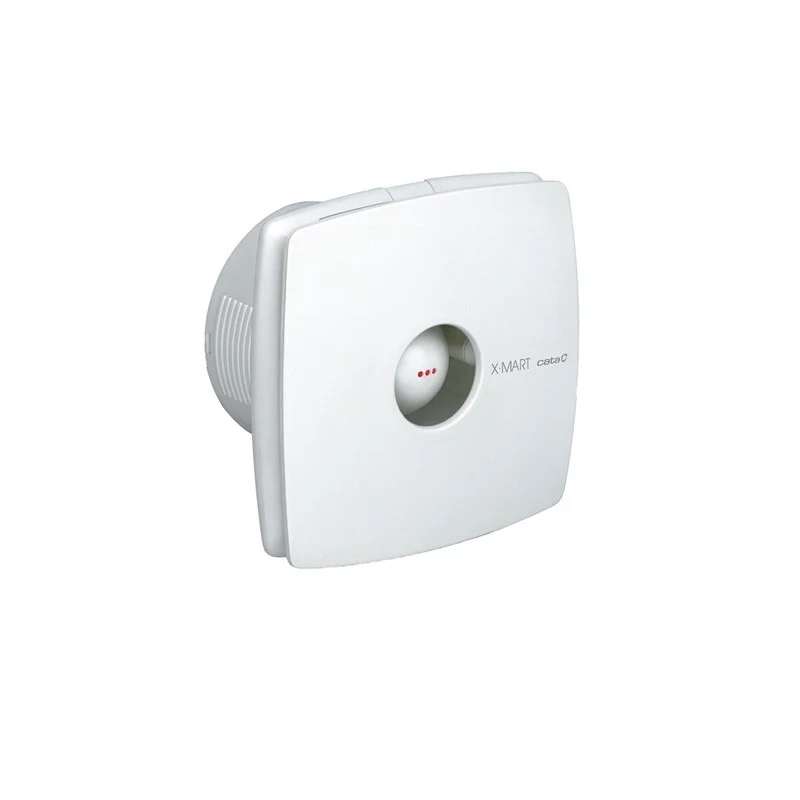

CATA CATAX-MART 12 S ventoinha axial branca 190 m³/h 120 mm

Axial extractor fan delivering a powerful 190 m³/h airflow, ideal for efficient ventilation in bathrooms, toilets, and utility rooms. Its 120 mm duct connection and robust ABS plastic construction ensure reliable, long-lasting performance.

Advantages

This fan combines high air extraction with low energy consumption of just 15 W. The integrated backdraft shutter prevents cold air and odours from returning, while the IPX4 rating protects against splashing water, making it safe for humid environments. The white finish blends seamlessly with any ceiling or wall.

Suitable for

• Bathrooms and shower rooms
• Separate toilets
• Utility rooms and small laundries
• Kitchens (as supplementary extraction)

Key specifications

• Airflow rate: 190 m³/h
• Duct diameter: 120 mm
• Power consumption: 15 W
• Noise level: 39 dB(A)
• Voltage: 230 V / 50 Hz
• IP rating: IPX4 (splash-proof)
• Material: ABS plastic
• Colour: White
• Backdraft shutter: Yes
• Speed: 2400 rpm
• Front grille dimensions: 170 x 170 mm
• Total depth: 98 mm
• Spigot depth: 70 mm
• Installation: Wall or ceiling
• Control: Standard switch operated

Recommendations

For optimal performance, install the fan as high as possible on the wall or ceiling, away from the door, to create effective cross-ventilation. Ensure the duct is clean and free of obstructions. Regular cleaning of the front grille will maintain airflow efficiency.
